Power Windows: Edge

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

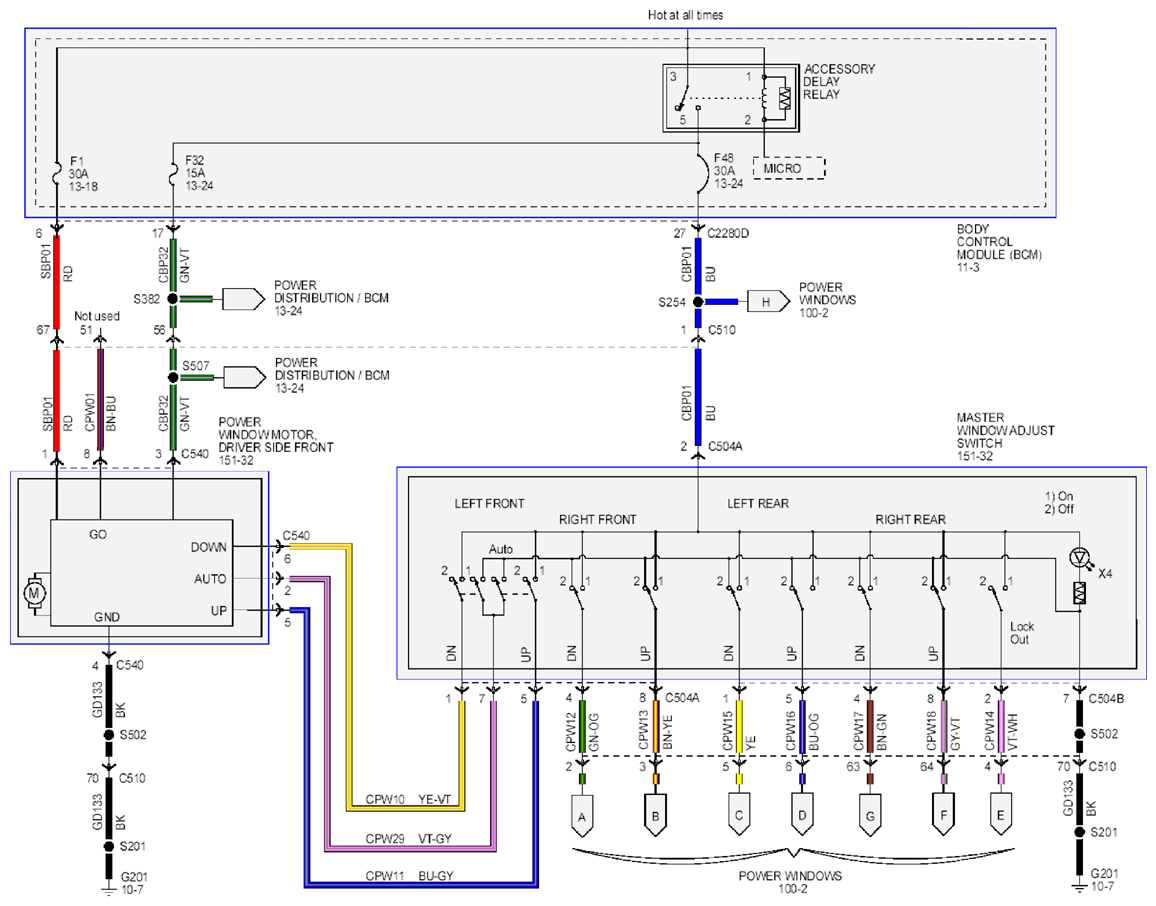

Fig 1: Power Windows - Wiring Diagram (EDGE; 1 Of 2)
G09219717Courtesy of FORD MOTOR CO.

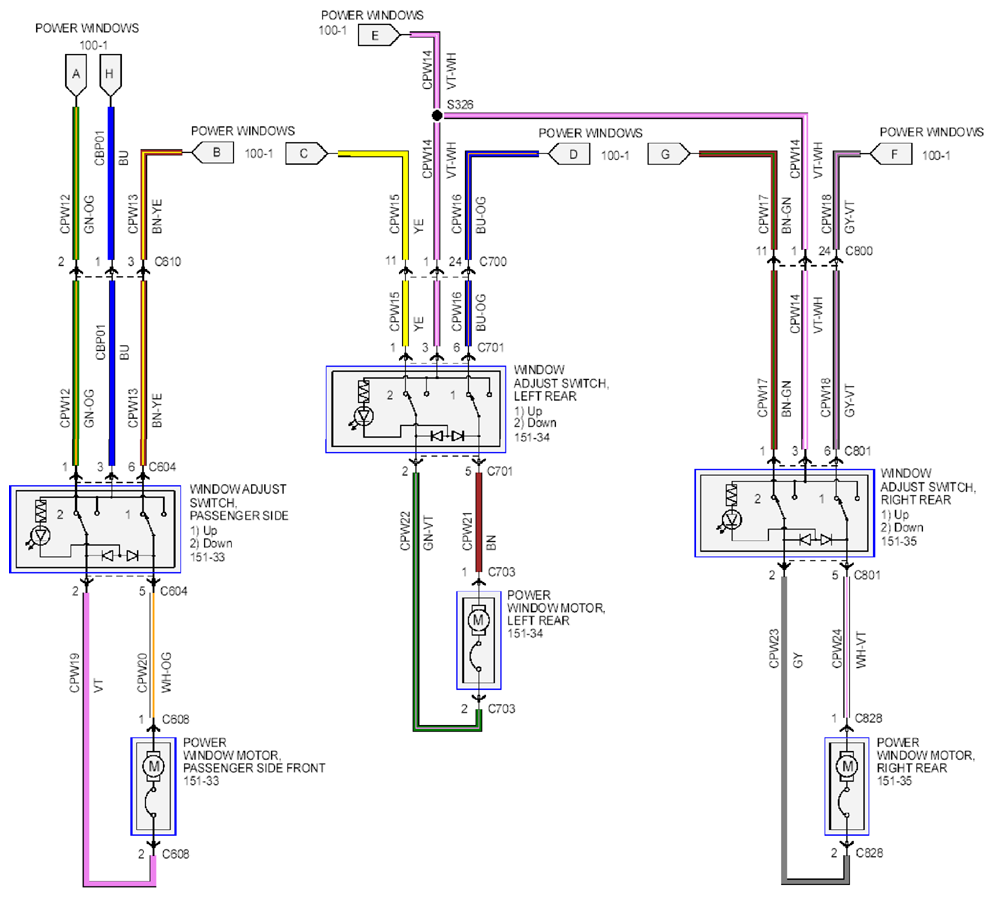

Fig 2: Power Windows - Wiring Diagram (EDGE; 2 Of 2)
G09219718Courtesy of FORD MOTOR CO.
