WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

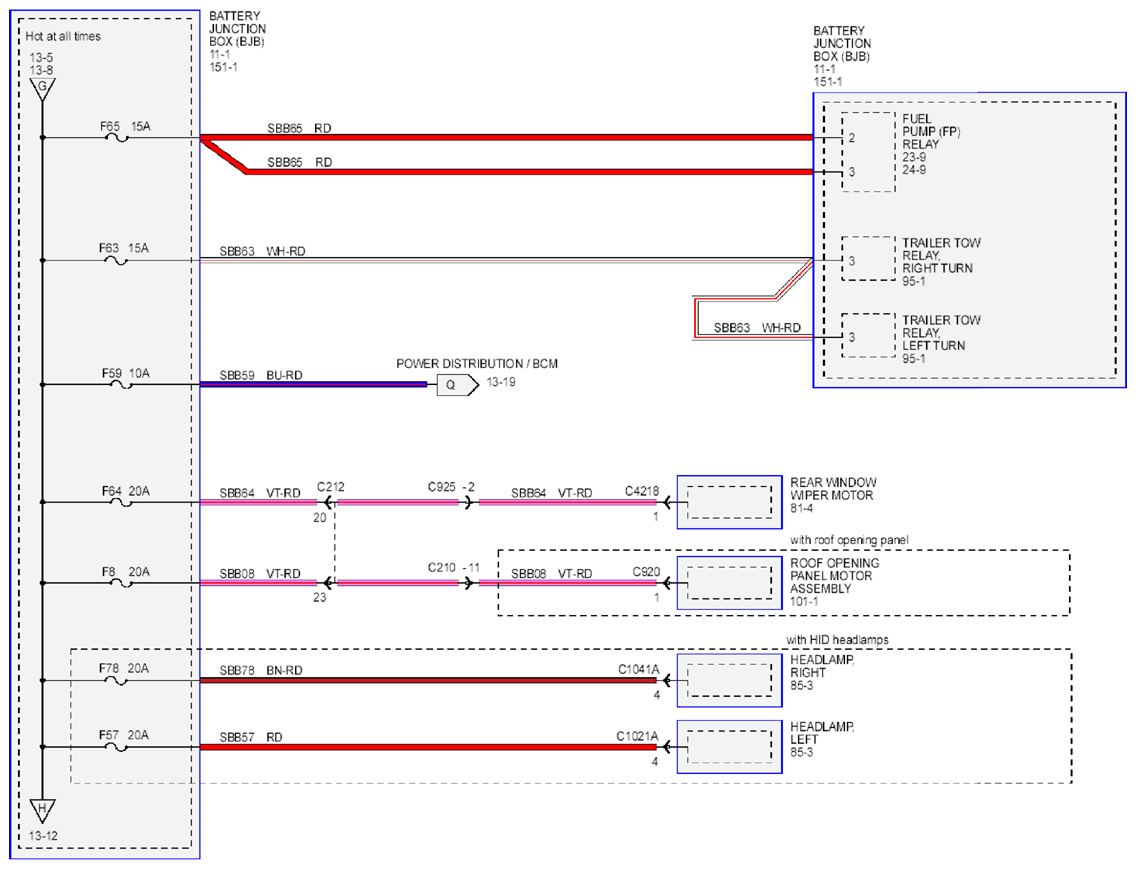

Fig 1: Power Distribution BCM Wiring Diagram - F8, F57, F59, F63, F64, F65, F78
