3.5L/3.7L TiVCT

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

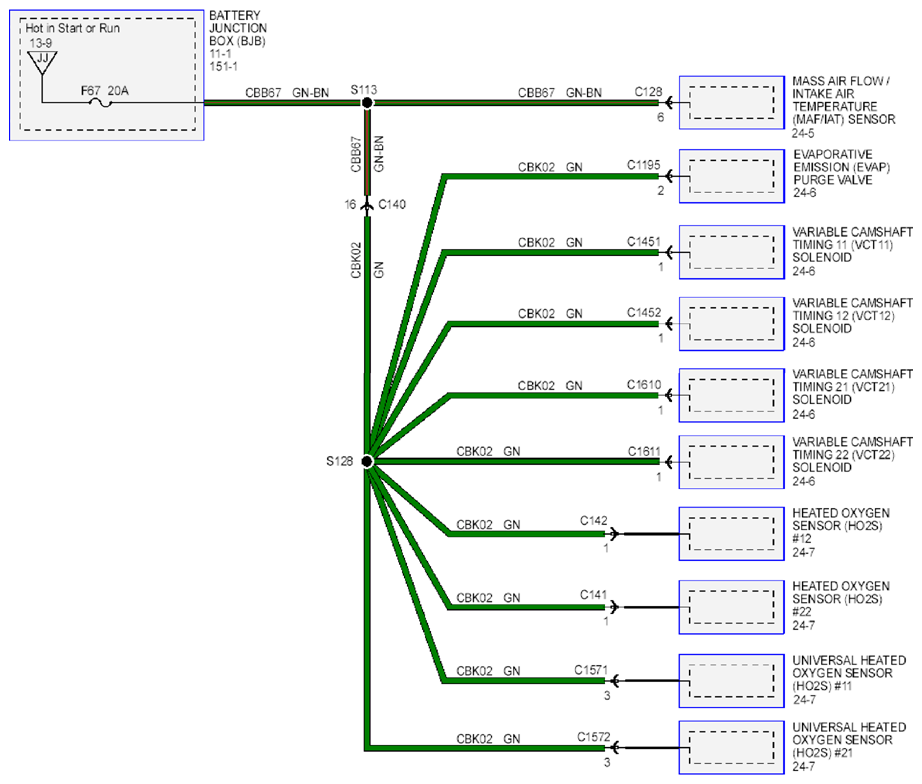

Fig 1: Power Distribution BCM Wiring Diagram - F67 (3.5L/3.7L TiVCT)
G09219563Courtesy of FORD MOTOR CO.
