F4, F5, F7, F39, F43, F56

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

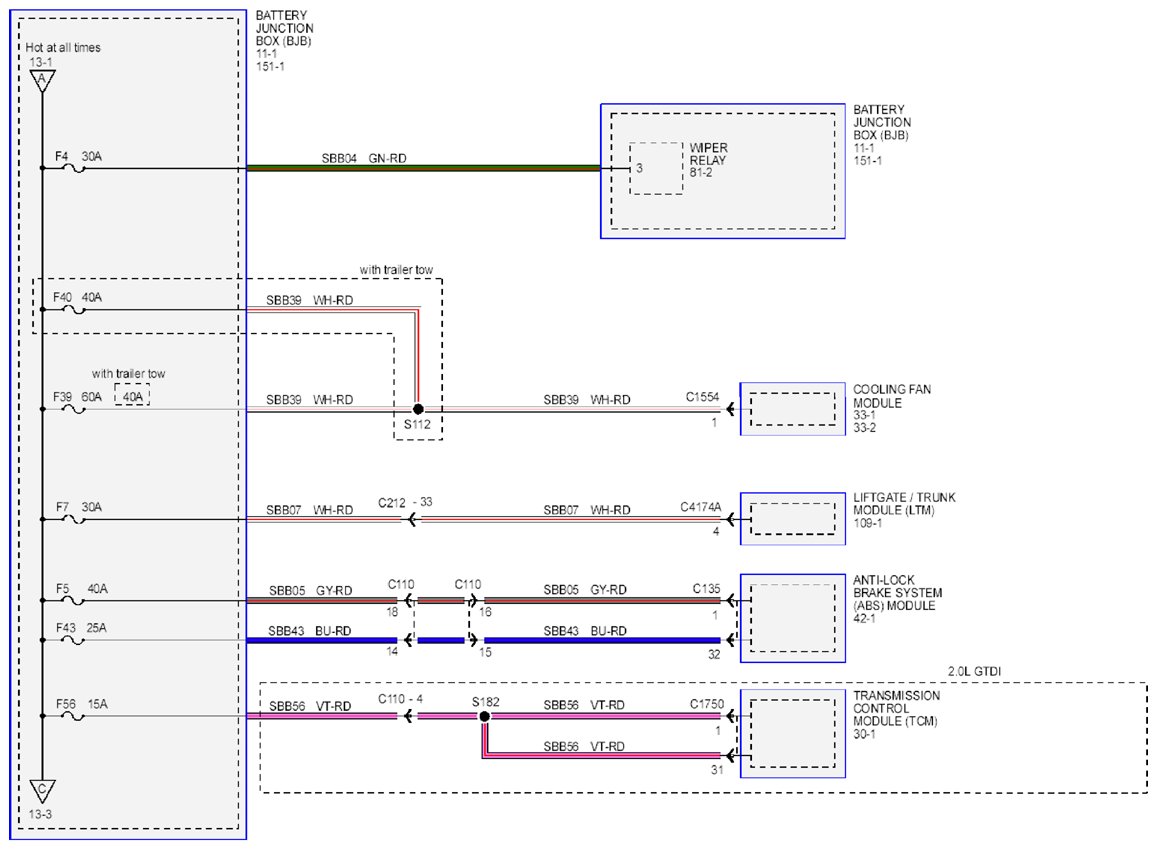

Fig 1: Power Distribution BCM Wiring Diagram - F4, F5, F7, F39, F43, F56
G09219555Courtesy of FORD MOTOR CO.
