WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

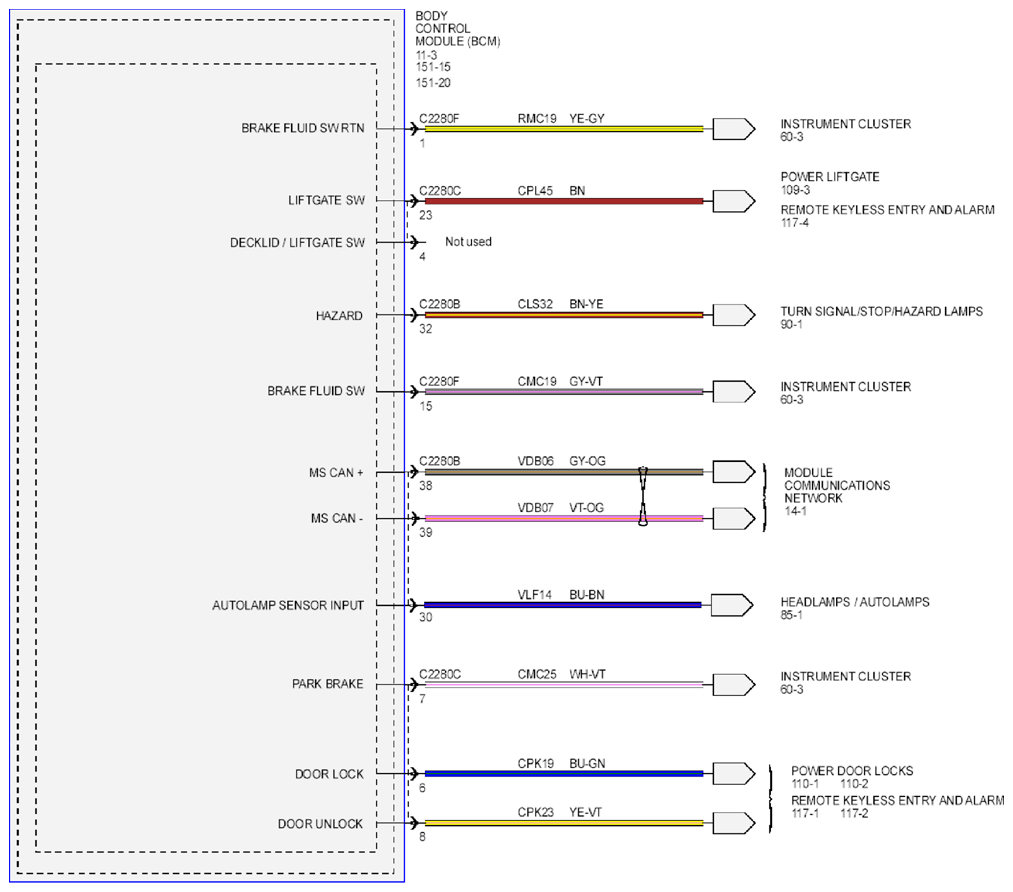

Fig 1: Power Distribution BCM Wiring Diagram - F33, F34, F35, F36, F37, F41, F42 (1 Of 5)
Courtesy of FORD MOTOR CO.

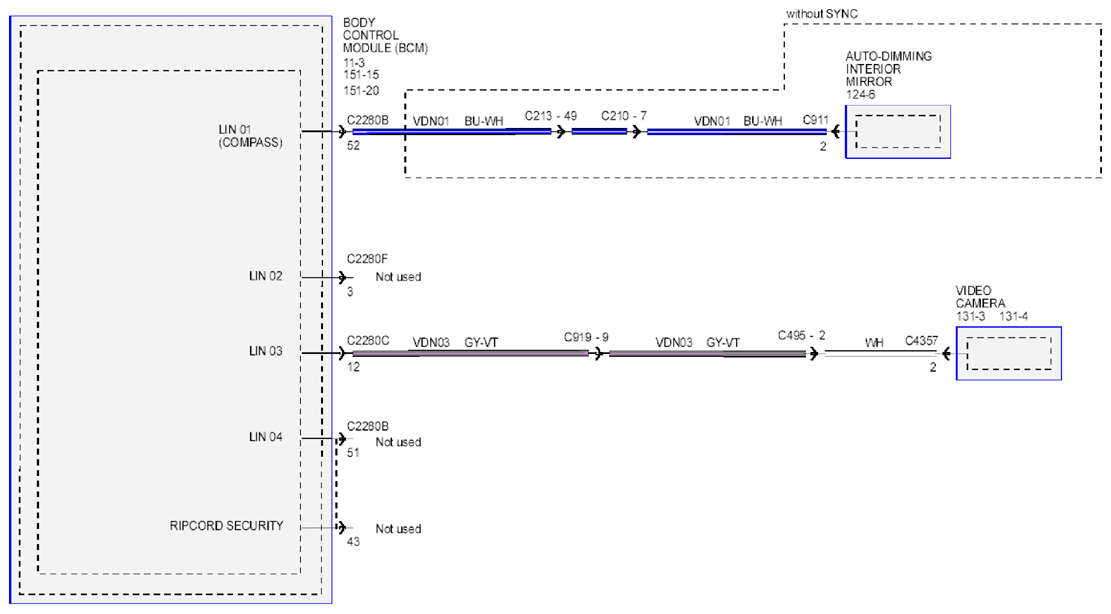

Fig 2: Power Distribution BCM Wiring Diagram - F33, F34, F35, F36, F37, F41, F42 (2 Of 5)
Courtesy of FORD MOTOR CO.
Fig 3: Power Distribution BCM Wiring Diagram - F33, F34, F35, F36, F37, F41, F42 (3 Of 5)
Courtesy of FORD MOTOR CO.
Fig 4: Power Distribution BCM Wiring Diagram - F33, F34, F35, F36, F37, F41, F42 (4 Of 5)
Courtesy of FORD MOTOR CO.

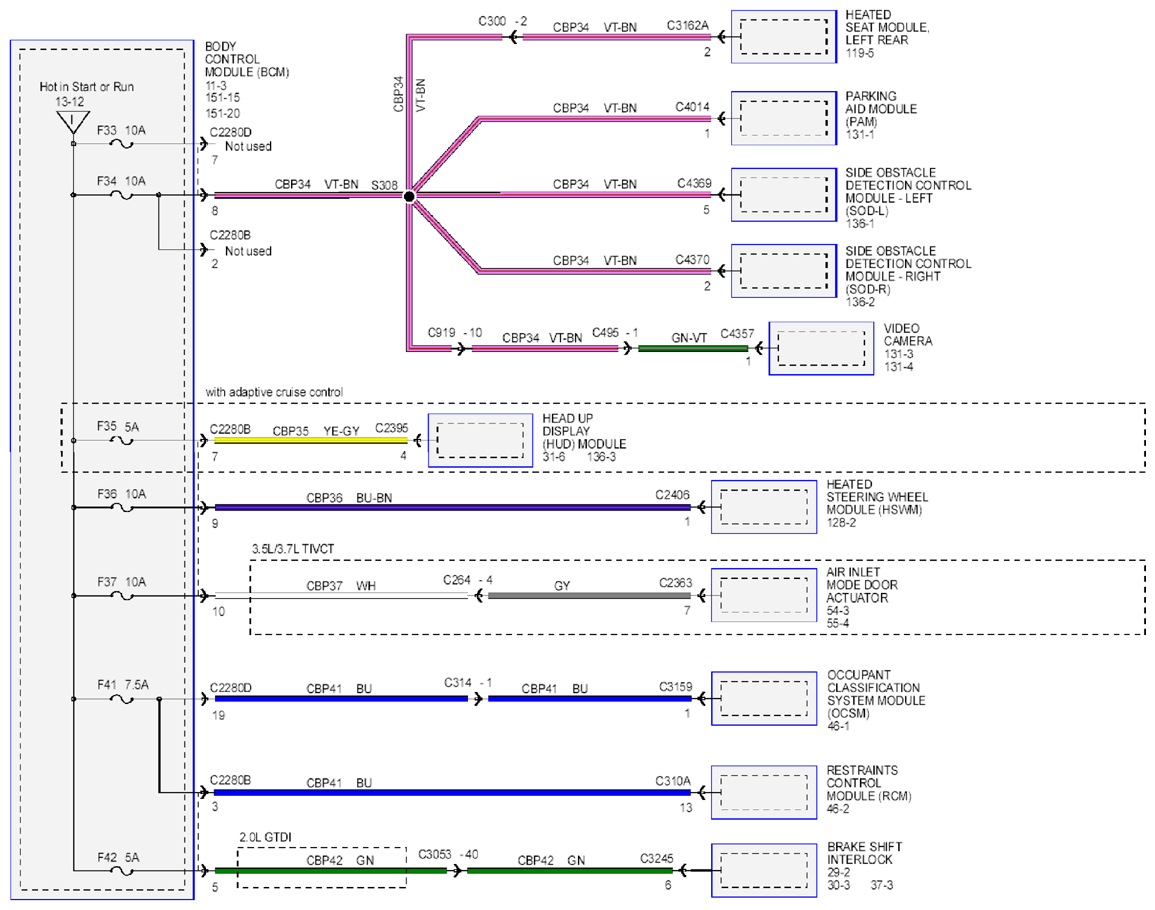

Fig 5: Power Distribution BCM Wiring Diagram - F33, F34, F35, F36, F37, F41, F42 (5 Of 5)
