Without IA

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

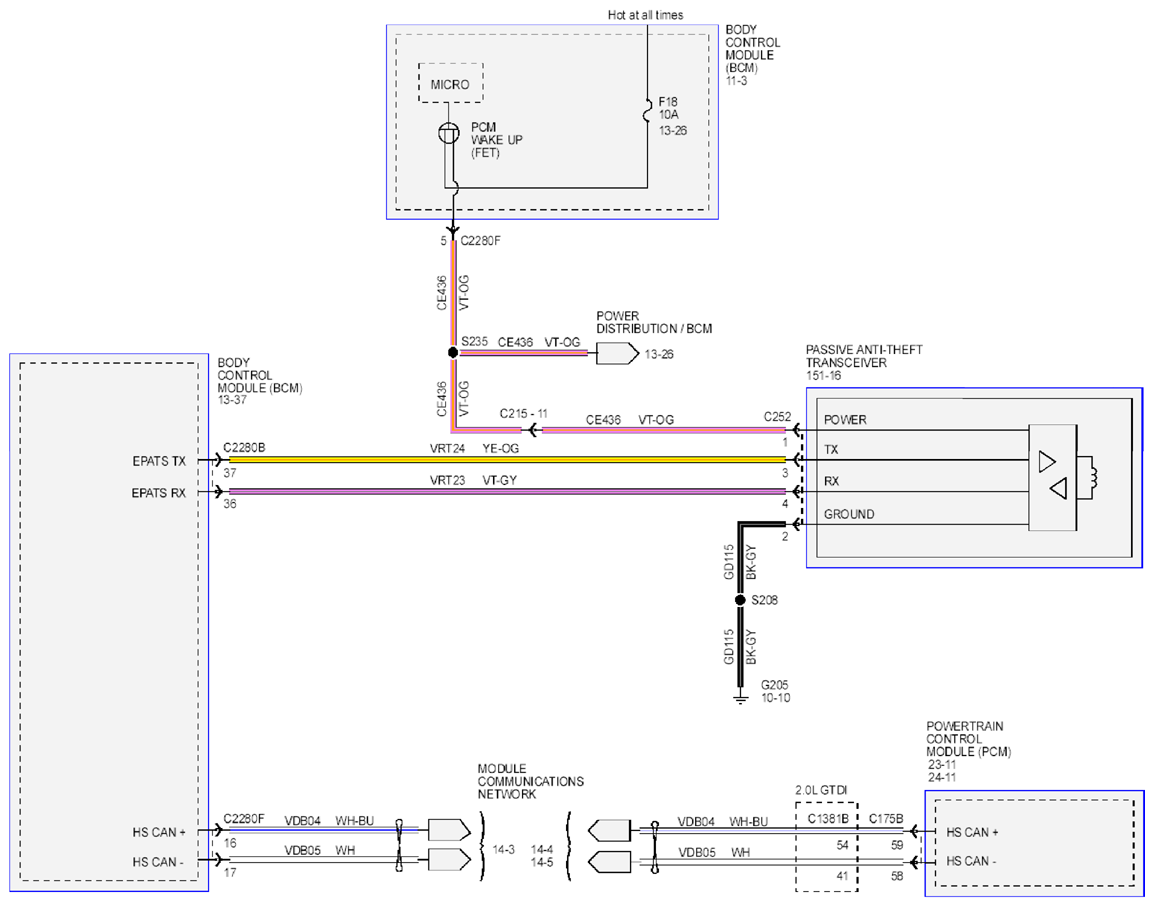

Fig 1: Passive Anti-Theft System - Wiring Diagram (Without IA)
G09219733Courtesy of FORD MOTOR CO.
