Parking Aid: Notes

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

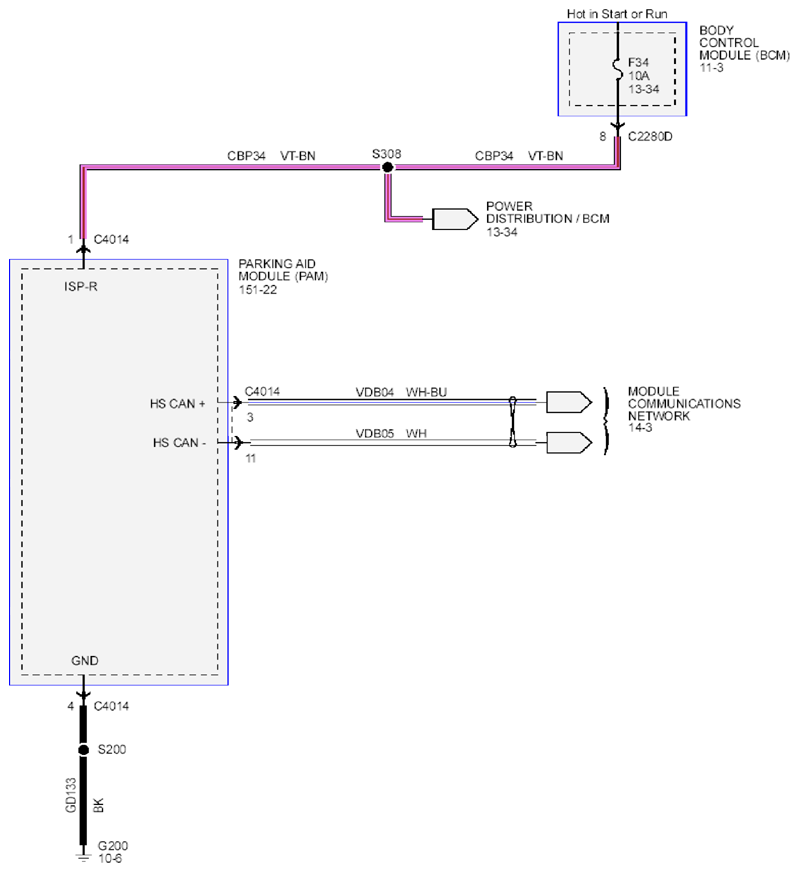

Fig 1: Parking Aid - Wiring Diagram (1 Of 2)
G09219791Courtesy of FORD MOTOR CO.

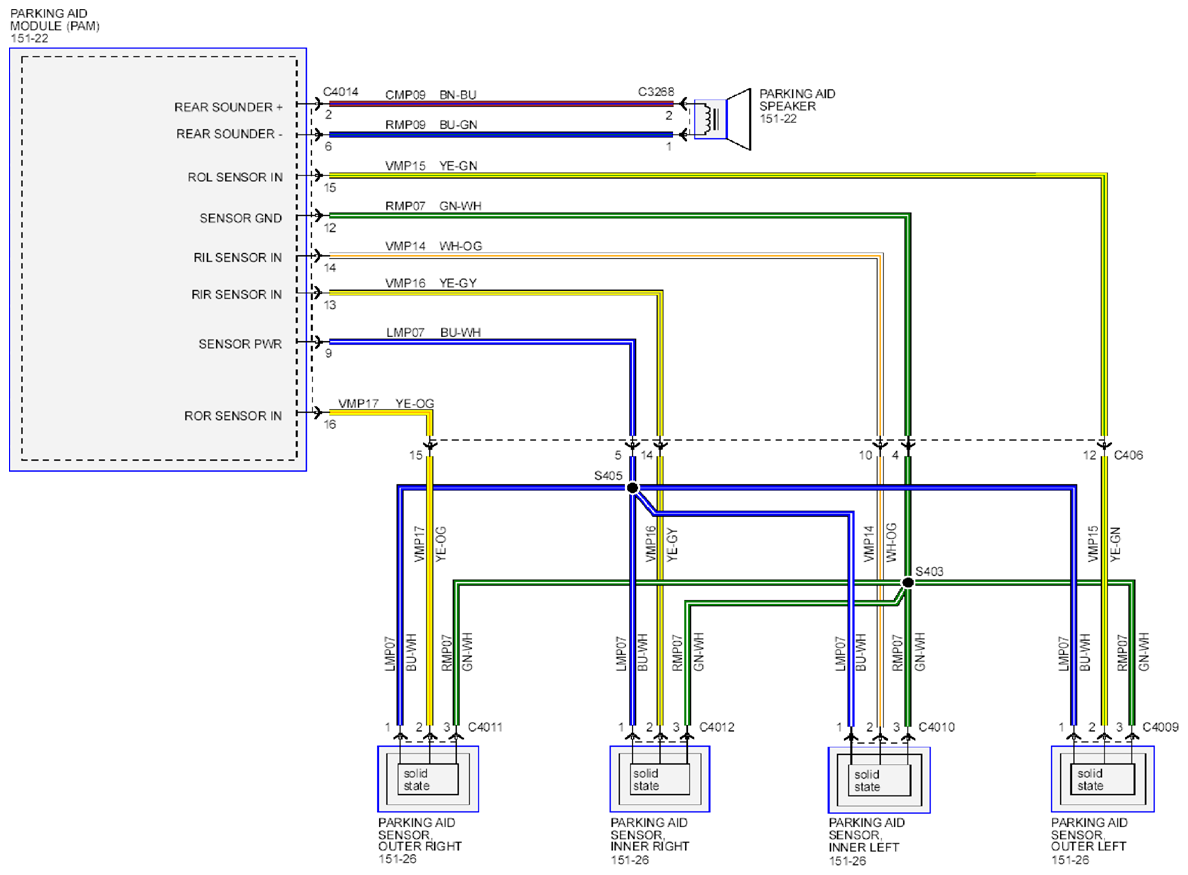

Fig 2: Parking Aid - Wiring Diagram (2 Of 2)
G09219792Courtesy of FORD MOTOR CO.
