3.5L/3.7L TiVCT

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

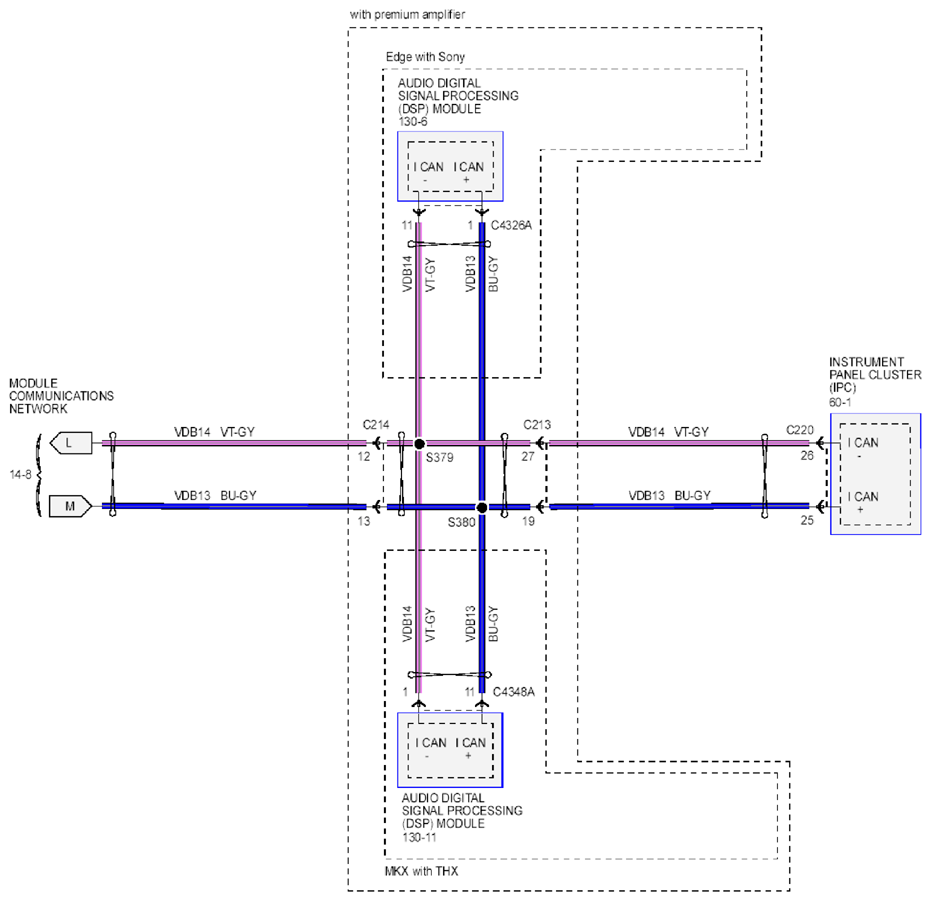

Fig 1: Module Communications Network (3.5L/3.7L TiVCT) - Wiring Diagram (1 Of 5)

Courtesy of FORD MOTOR CO.

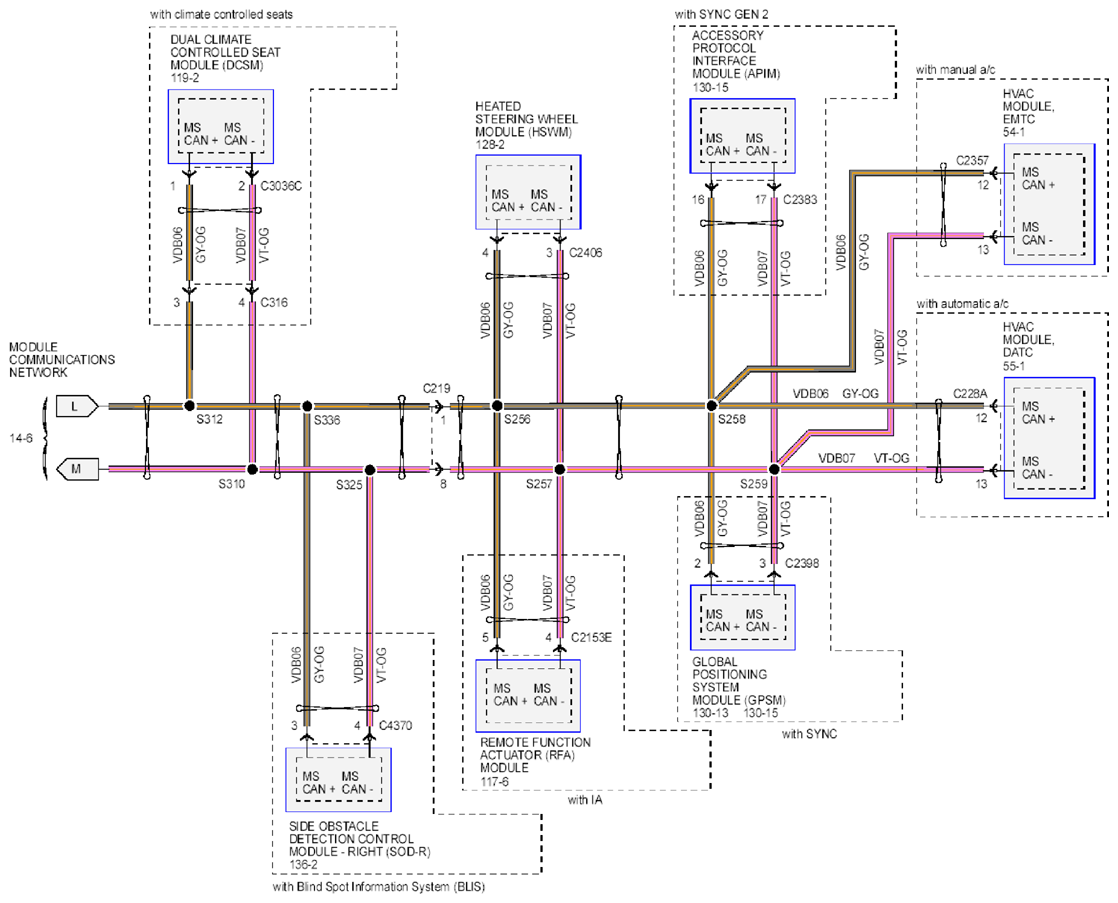

Fig 2: Module Communications Network (3.5L/3.7L TiVCT) - Wiring Diagram (2 Of 5)

Courtesy of FORD MOTOR CO.

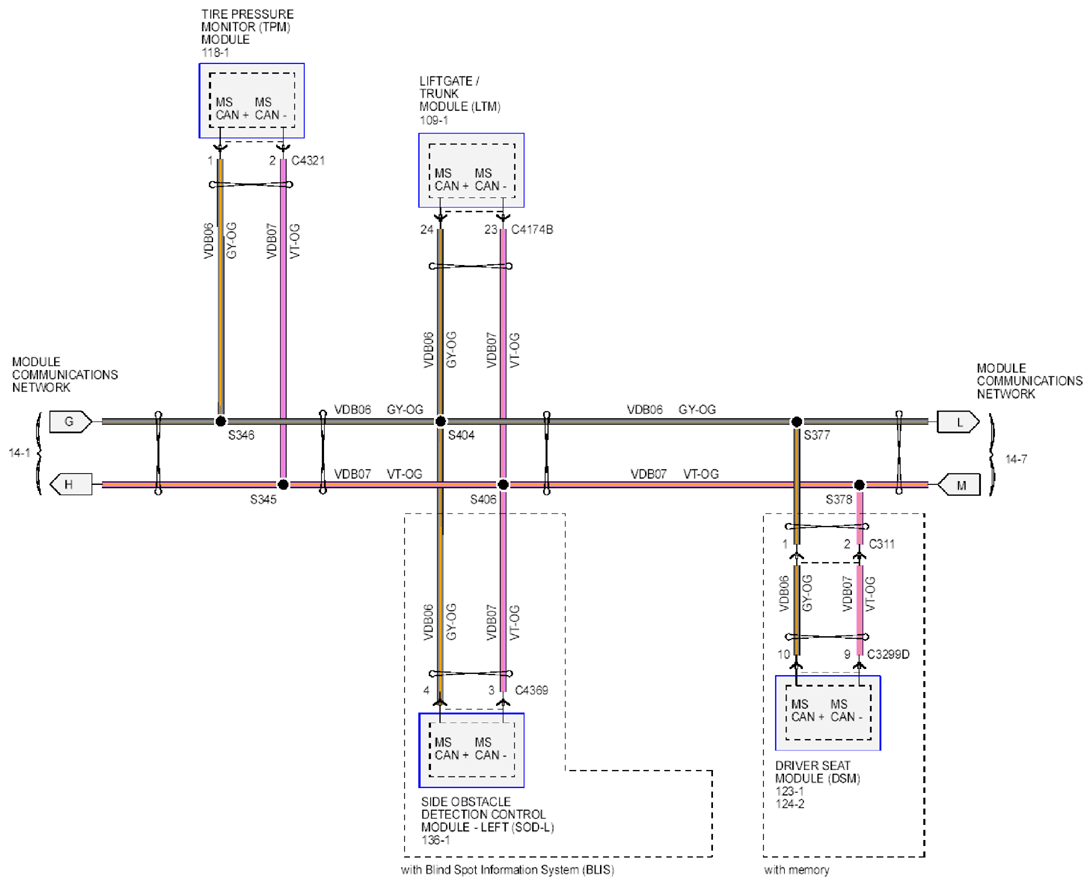

Fig 3: Module Communications Network (3.5L/3.7L TiVCT) - Wiring Diagram (3 Of 5)

Courtesy of FORD MOTOR CO.

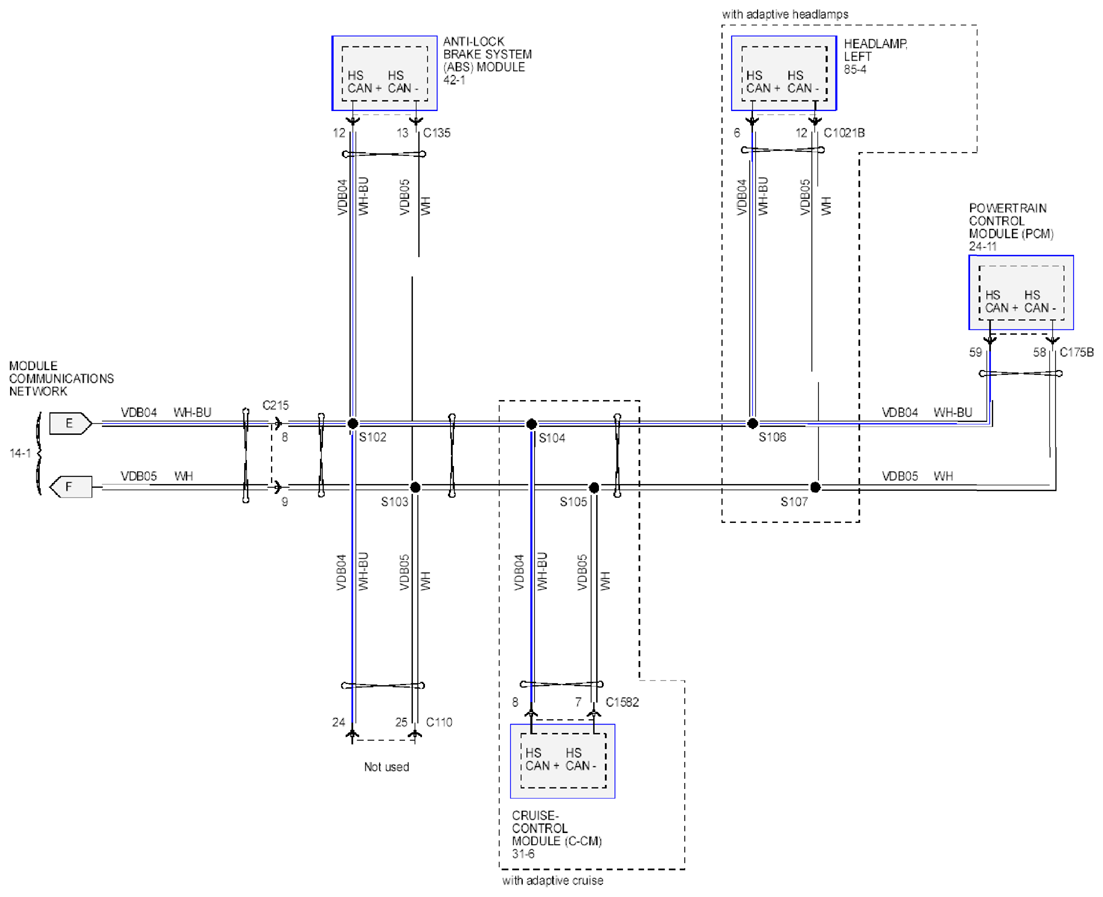

Fig 4: Module Communications Network (3.5L/3.7L TiVCT) - Wiring Diagram (4 Of 5)

Courtesy of FORD MOTOR CO.

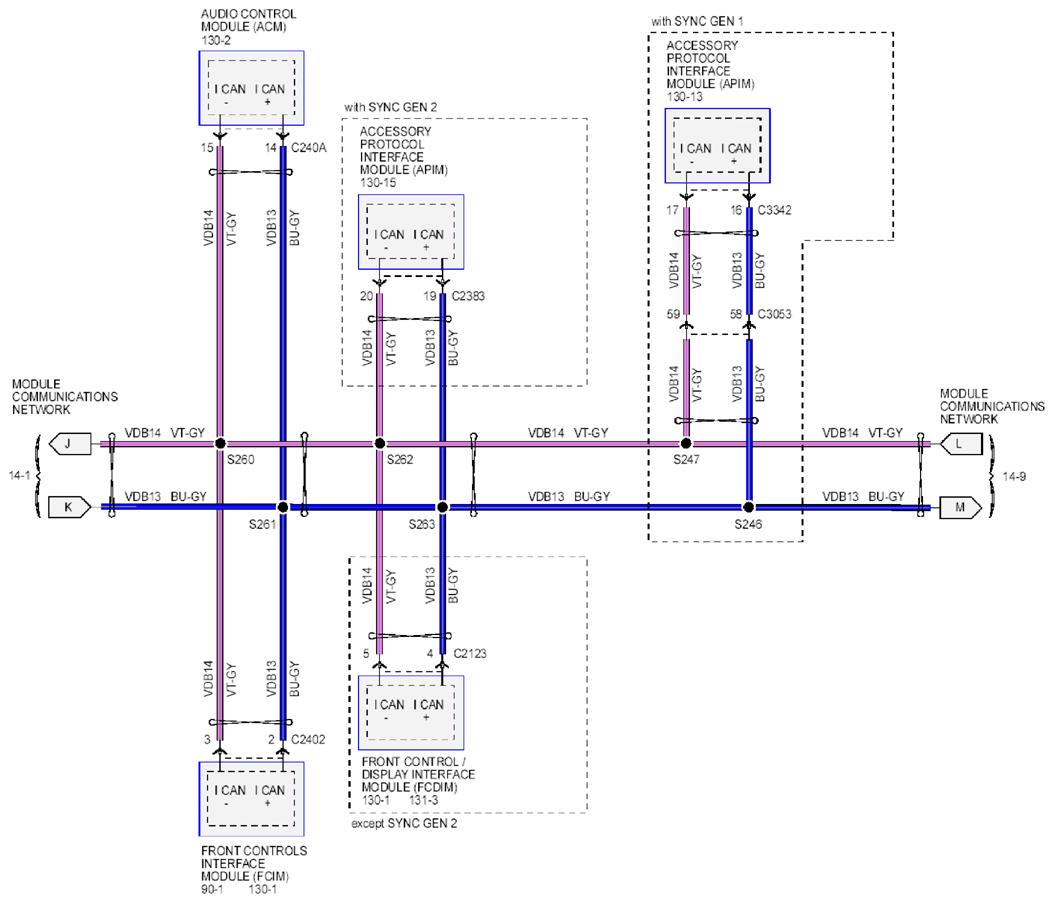

Fig 5: Module Communications Network (3.5L/3.7L TiVCT) - Wiring Diagram (5 Of 5)

Courtesy of FORD MOTOR CO.
