2.0L GTDI

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

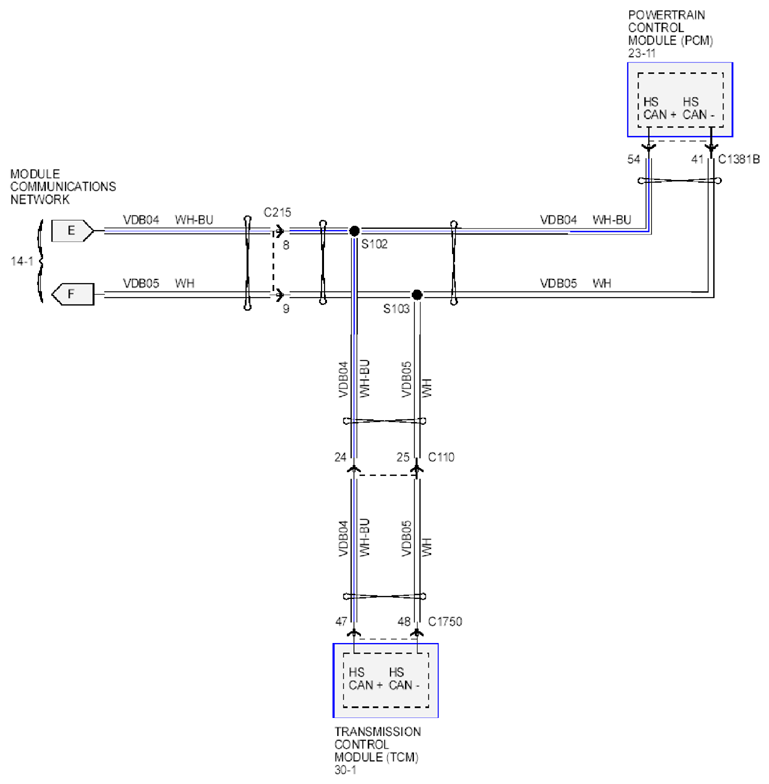

Fig 1: Module Communications Network (2.0L GTDI) - Circuit Diagram
G09219595Courtesy of FORD MOTOR CO.
