WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

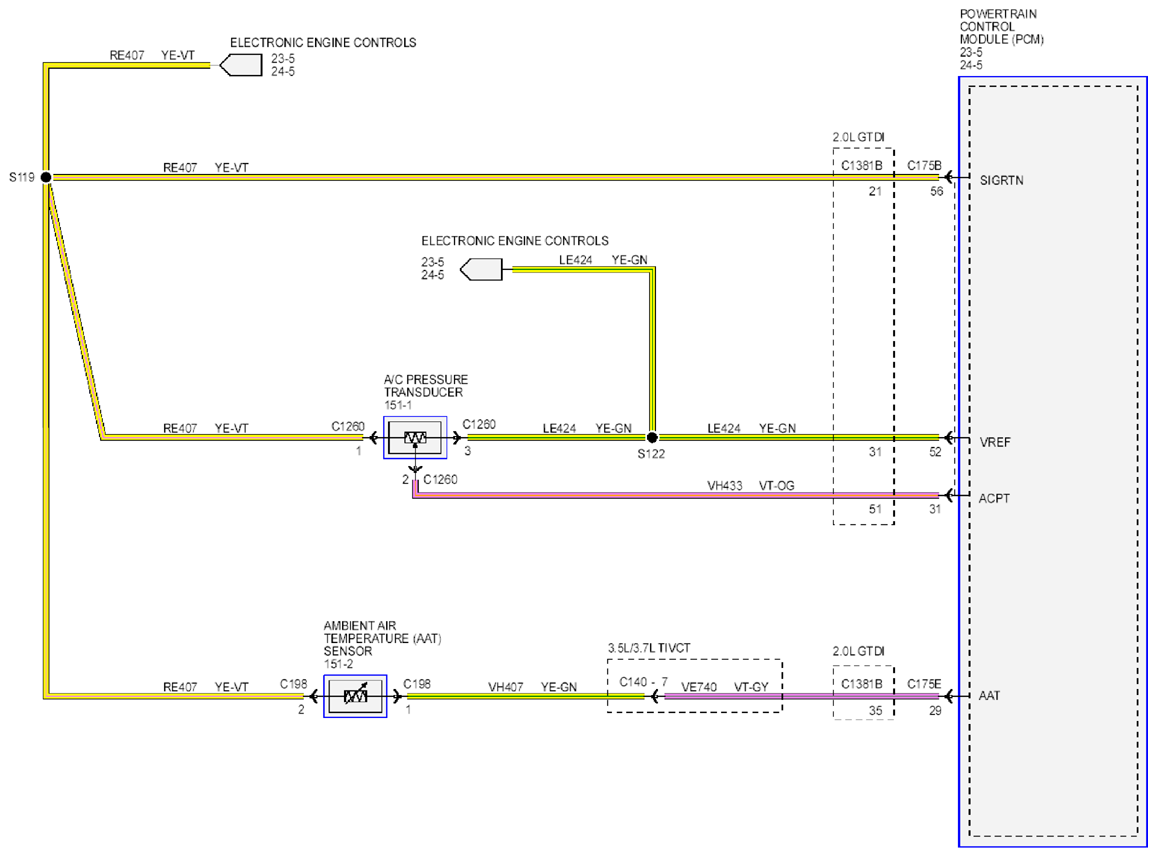

Fig 1: Manual Climate Control System - Wiring Diagram (3.5/3.7L TiVCT; 1 Of 3)
Courtesy of FORD MOTOR CO.

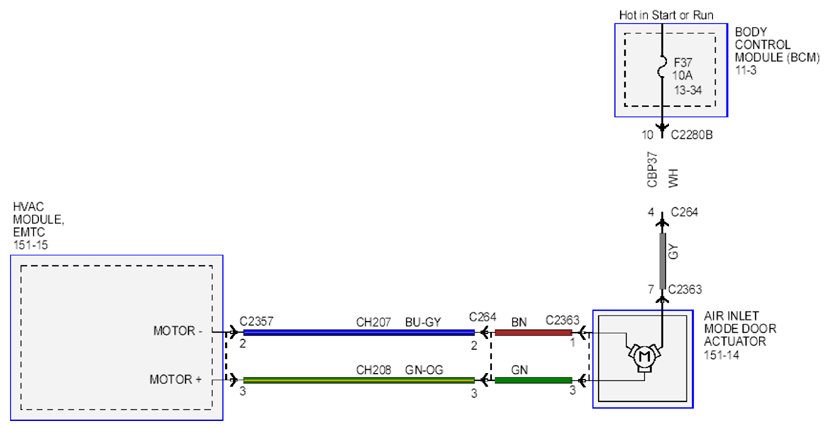

Fig 2: Manual Climate Control System - Wiring Diagram (3.5/3.7L TiVCT; 2 Of 3)
Courtesy of FORD MOTOR CO.
Fig 3: Manual Climate Control System - Wiring Diagram (3.5/3.7L TiVCT; 3 Of 3)
