With Ambient Lighting - EDGE

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

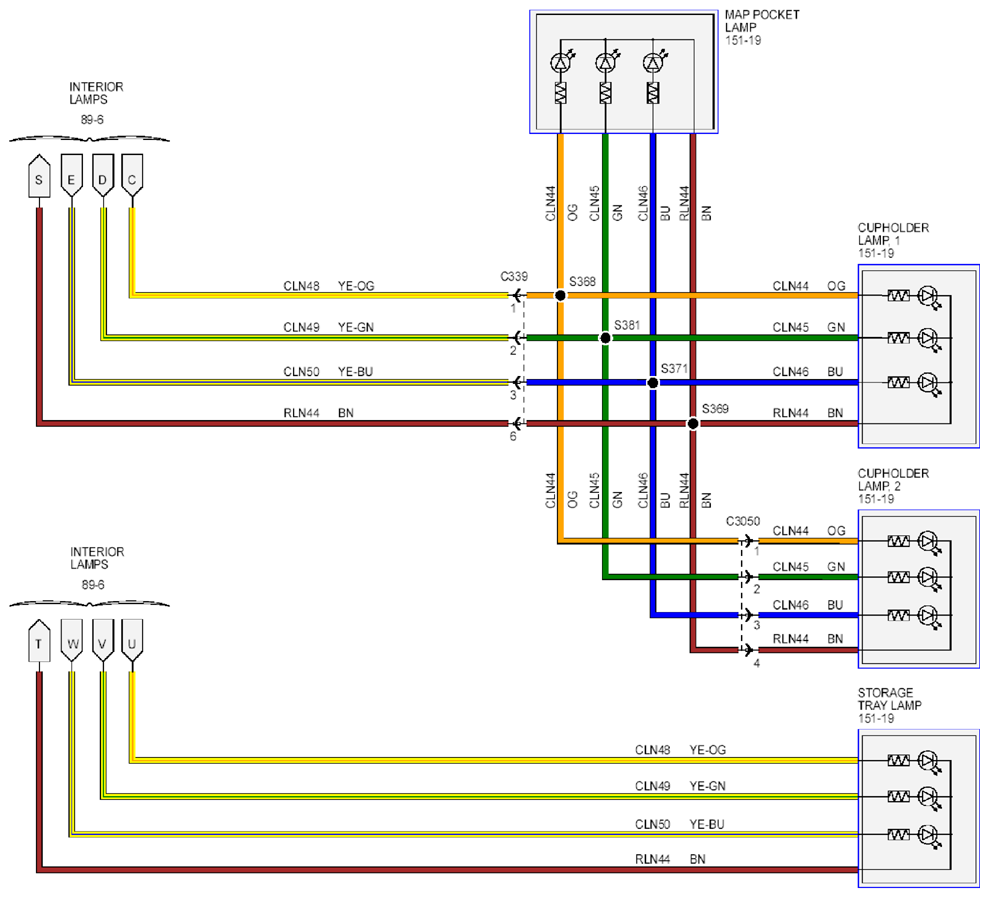

Fig 1: Interior Lamps (EDGE) - Wiring Diagram (With Ambient Lighting; 1 Of 2)

Courtesy of FORD MOTOR CO.

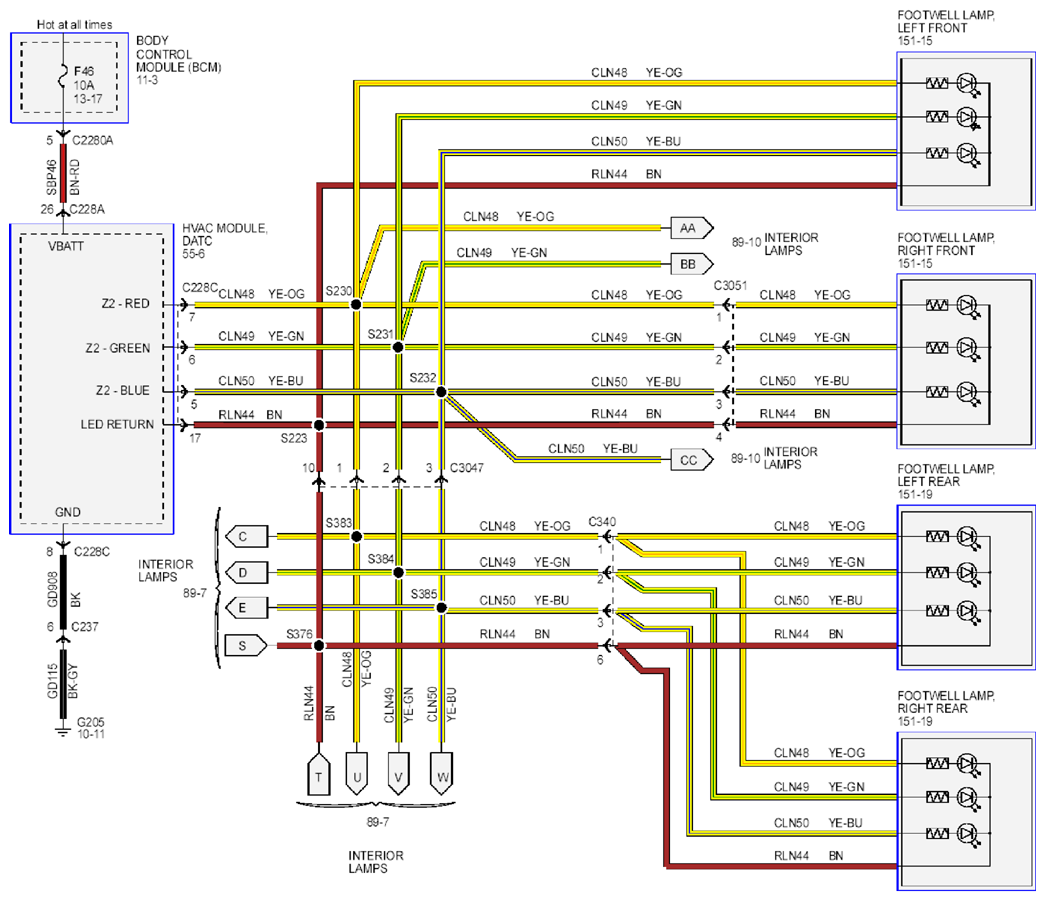

Fig 2: Interior Lamps (EDGE) - Wiring Diagram (With Ambient Lighting; 2 Of 2)

Courtesy of FORD MOTOR CO.
