Electronic Engine Controls - 2.0L GTDI

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

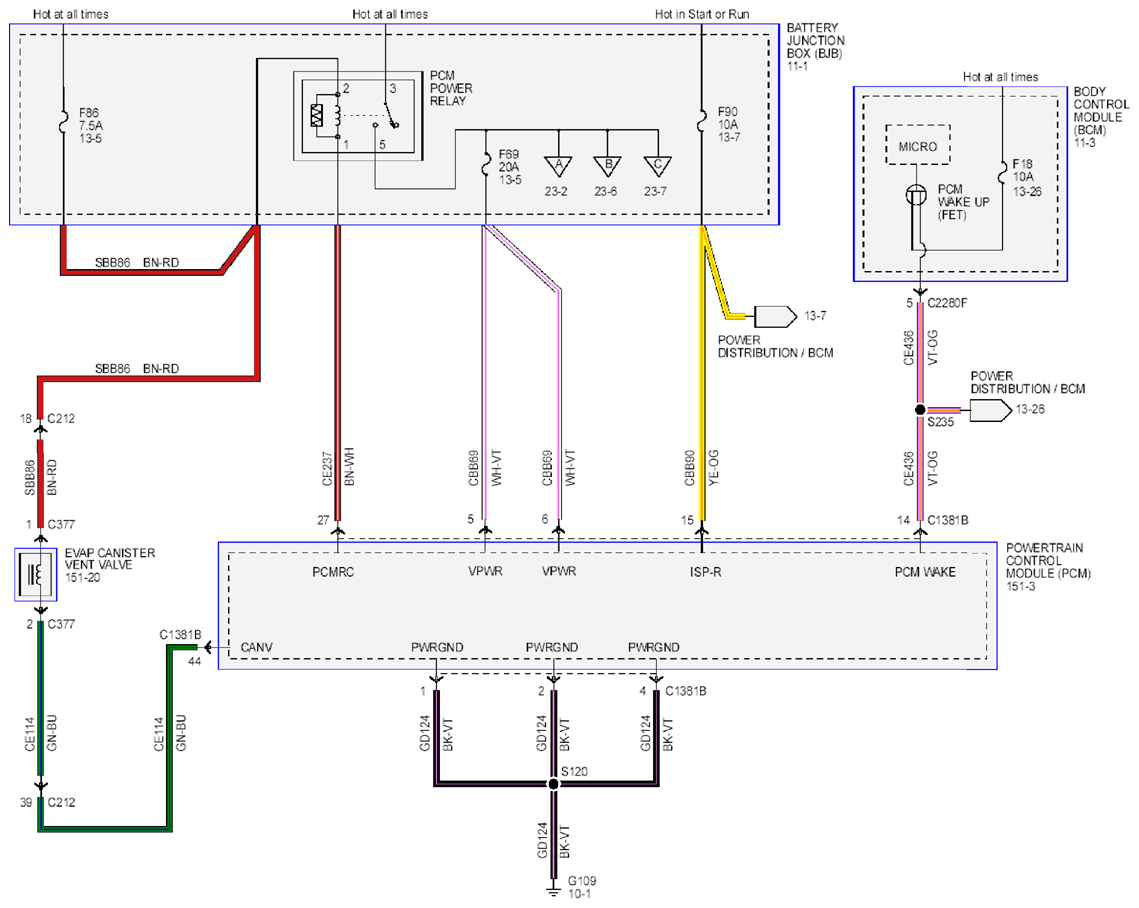

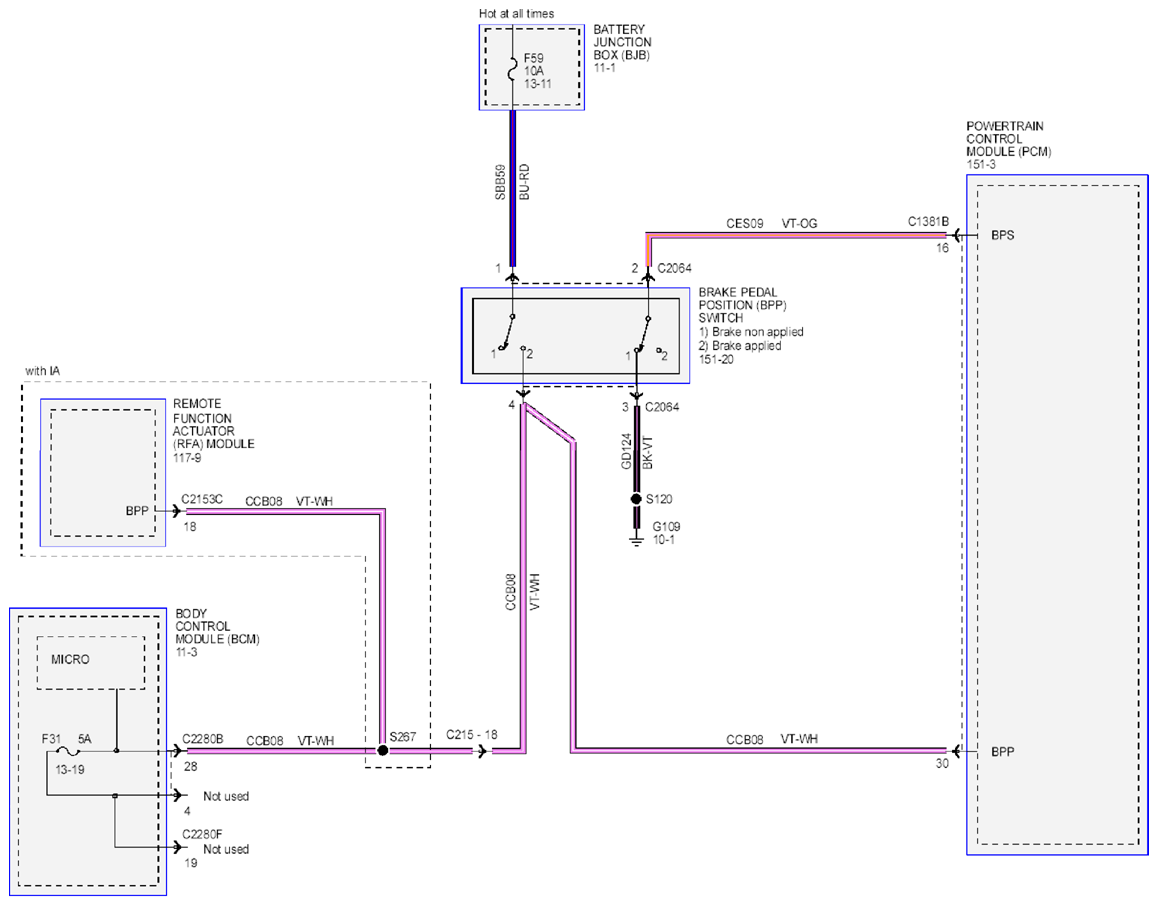

Fig 1: Electronic Engine Controls - 2.0L GTDI - Wiring Diagram (1 Of 11)

Courtesy of FORD MOTOR CO.

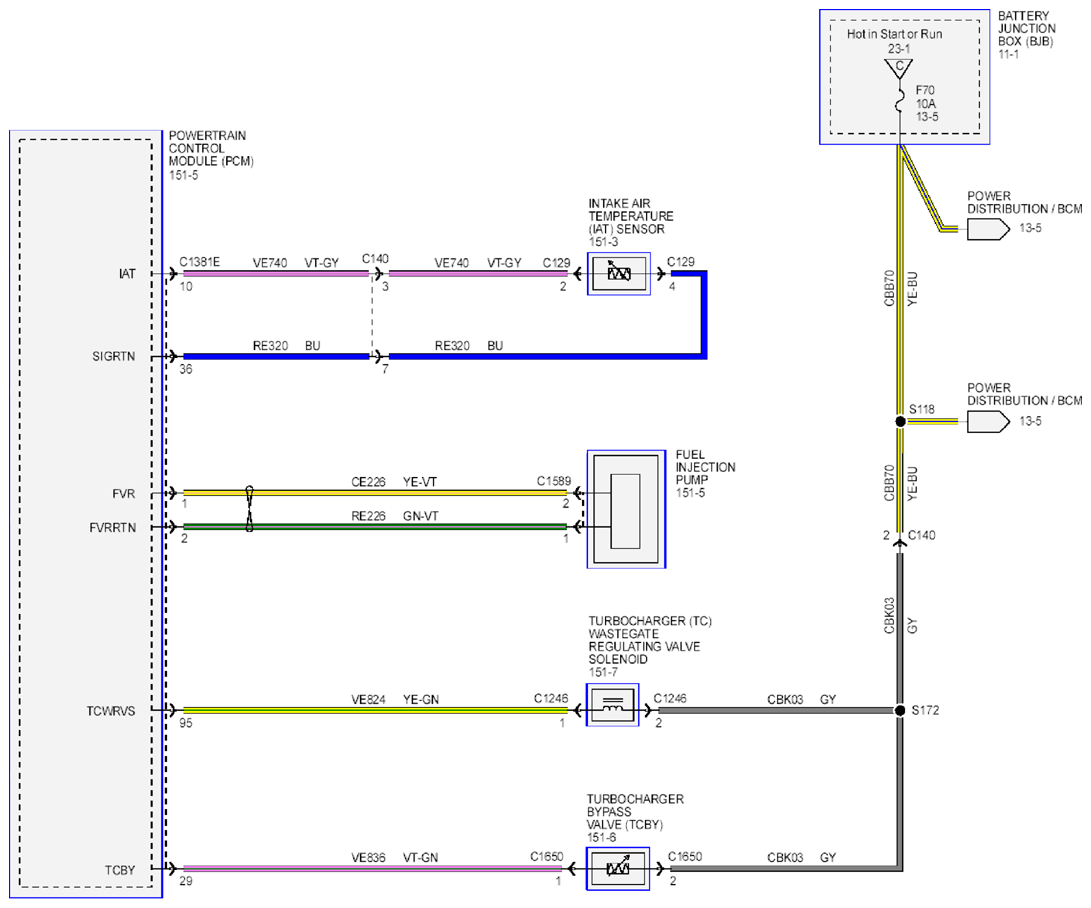

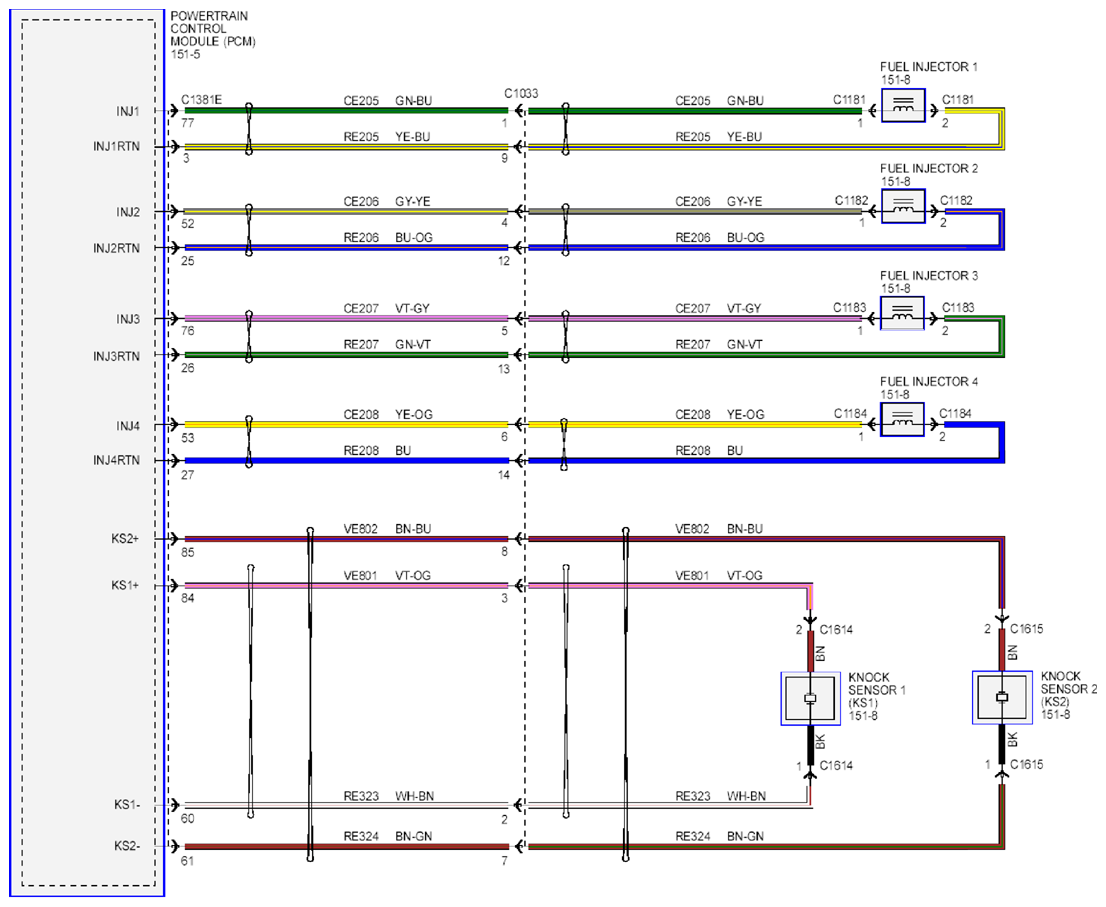

Fig 2: Electronic Engine Controls - 2.0L GTDI - Wiring Diagram (2 Of 11)

Courtesy of FORD MOTOR CO.

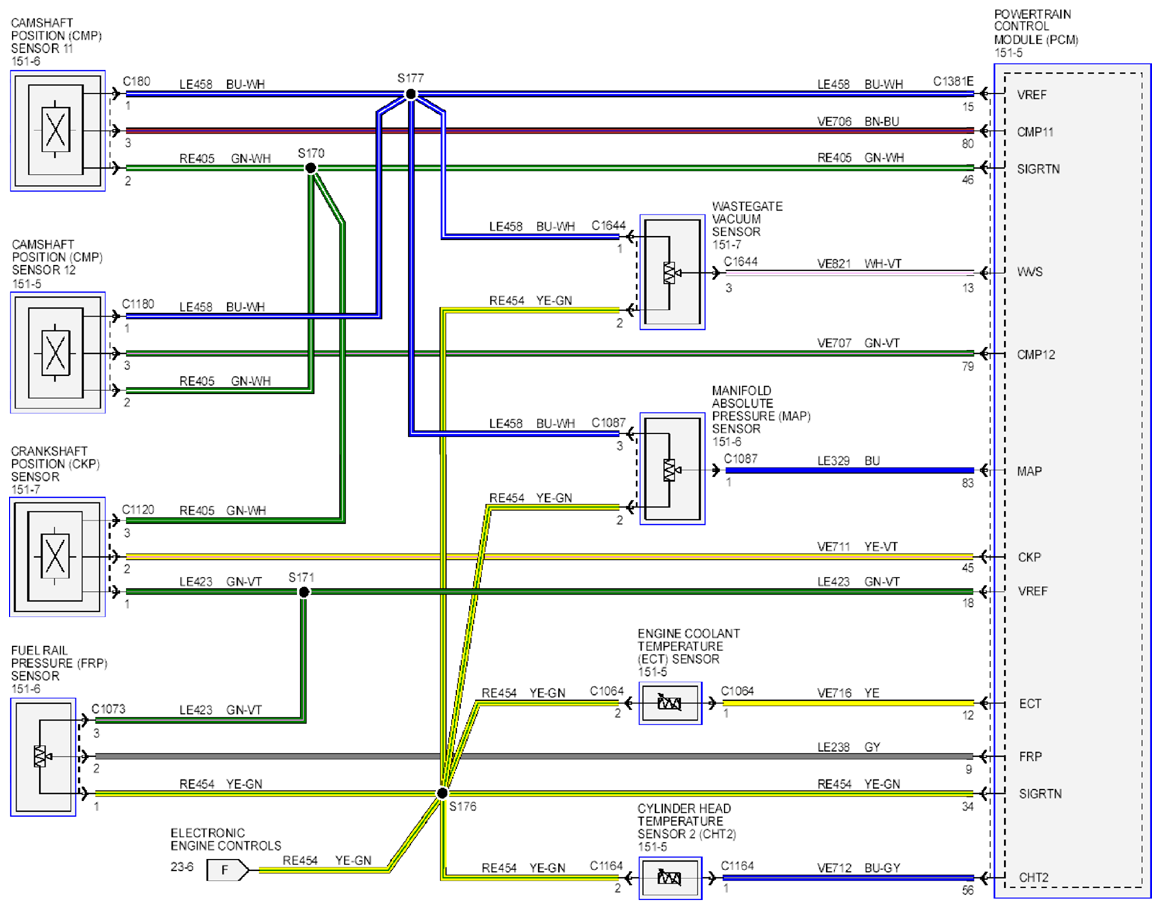

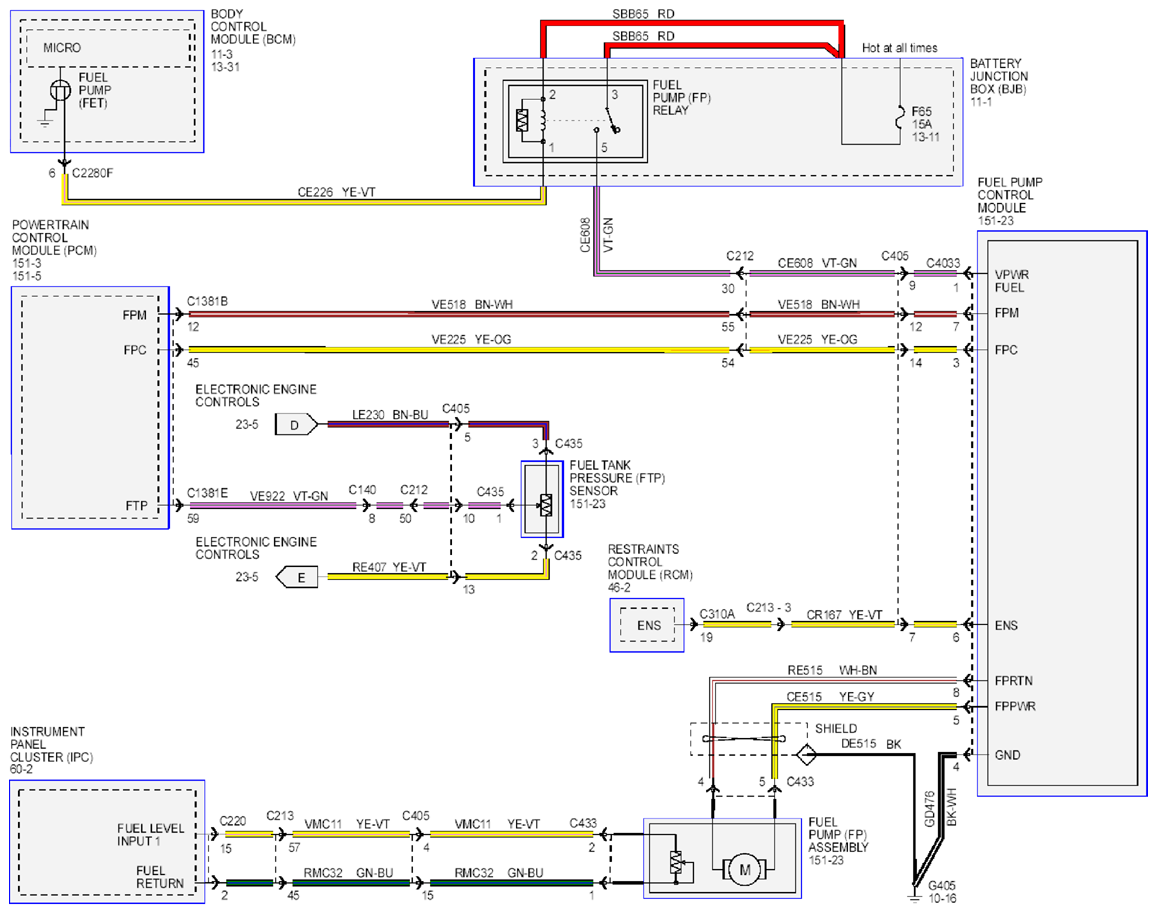

Fig 3: Electronic Engine Controls - 2.0L GTDI - Wiring Diagram (3 Of 11)

Courtesy of FORD MOTOR CO.

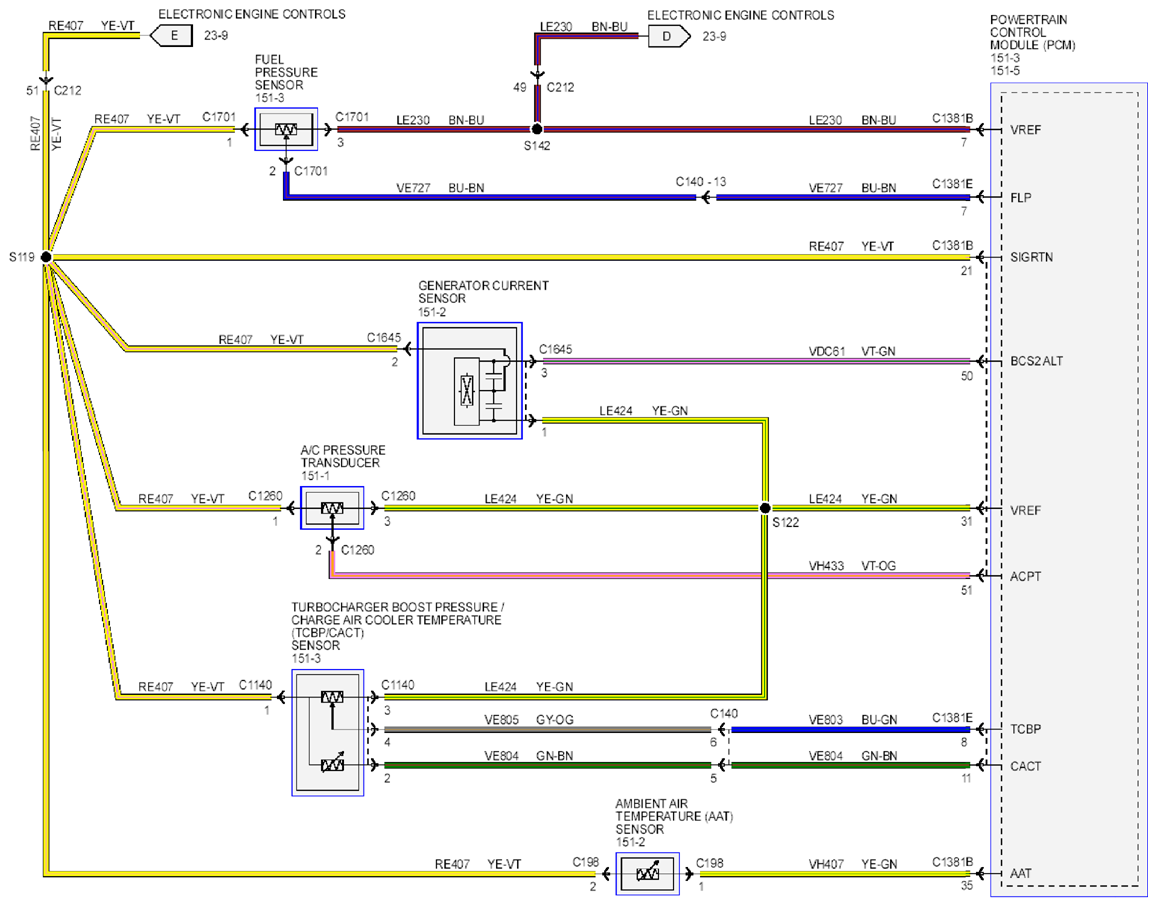

Fig 4: Electronic Engine Controls - 2.0L GTDI - Wiring Diagram (4 Of 11)

Courtesy of FORD MOTOR CO.

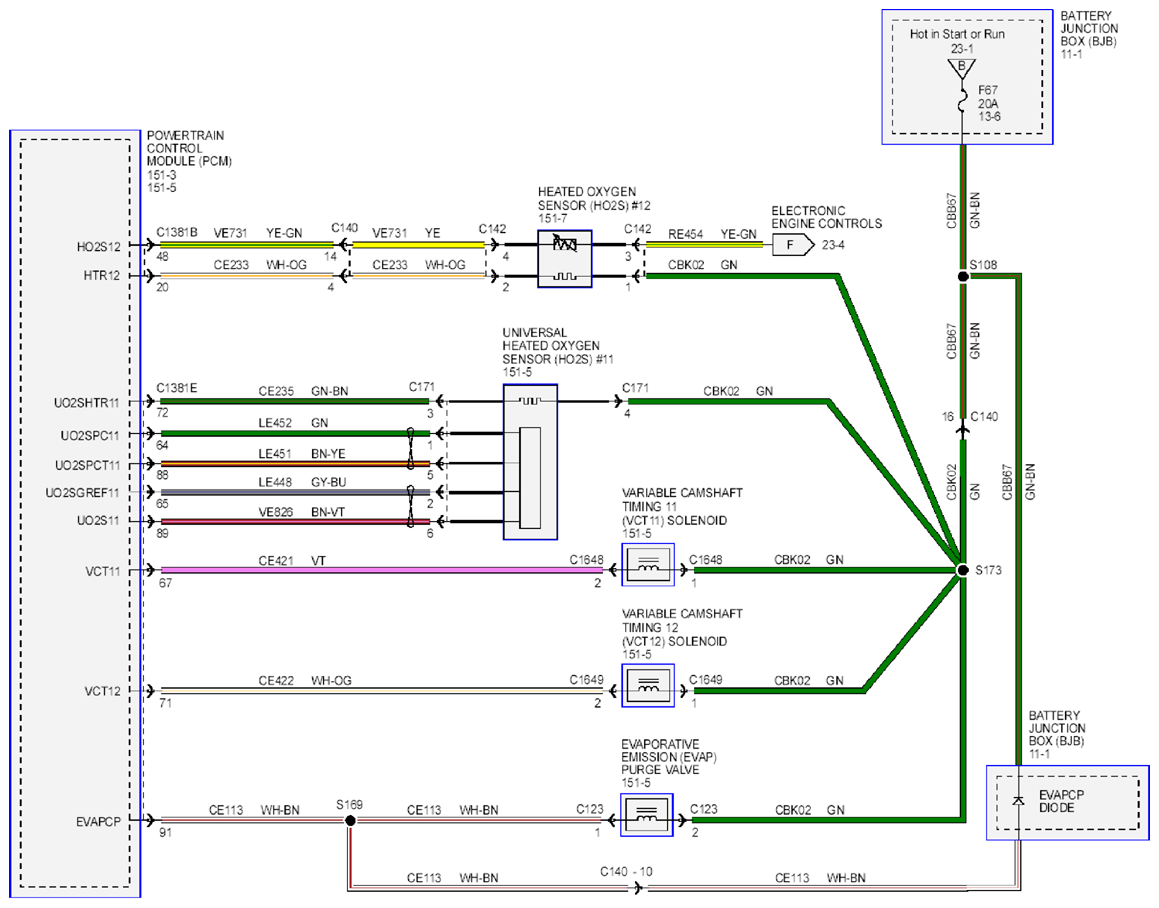

Fig 5: Electronic Engine Controls - 2.0L GTDI - Wiring Diagram (5 Of 11)

Courtesy of FORD MOTOR CO.

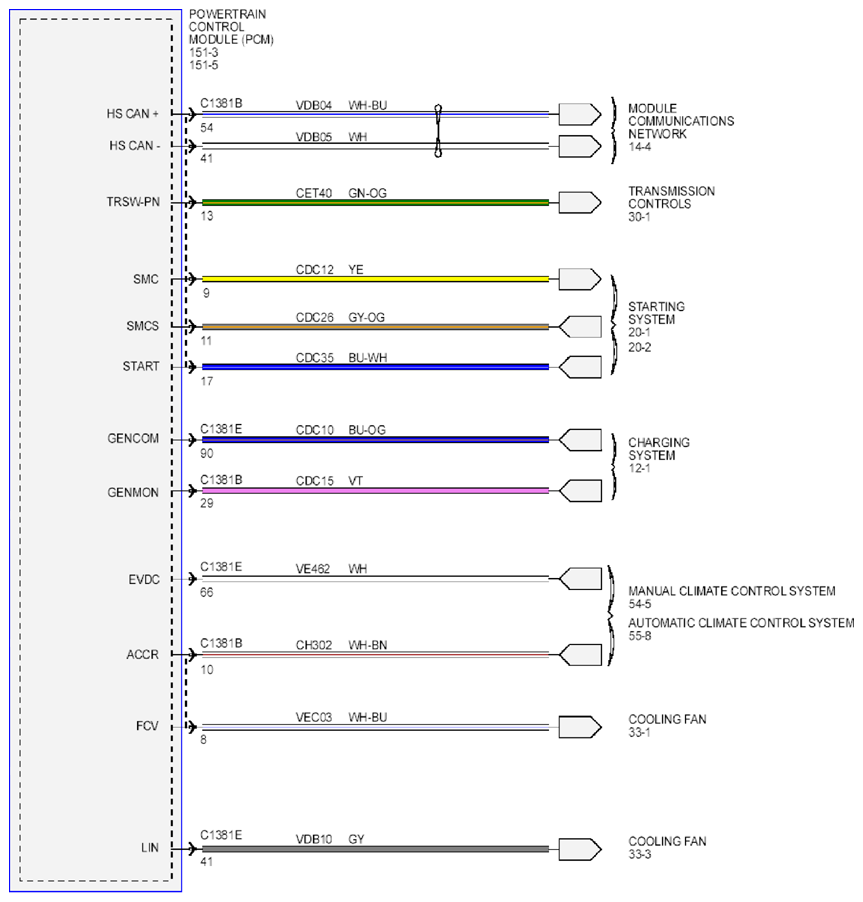

Fig 6: Electronic Engine Controls - 2.0L GTDI - Wiring Diagram (6 Of 11)

Courtesy of FORD MOTOR CO.

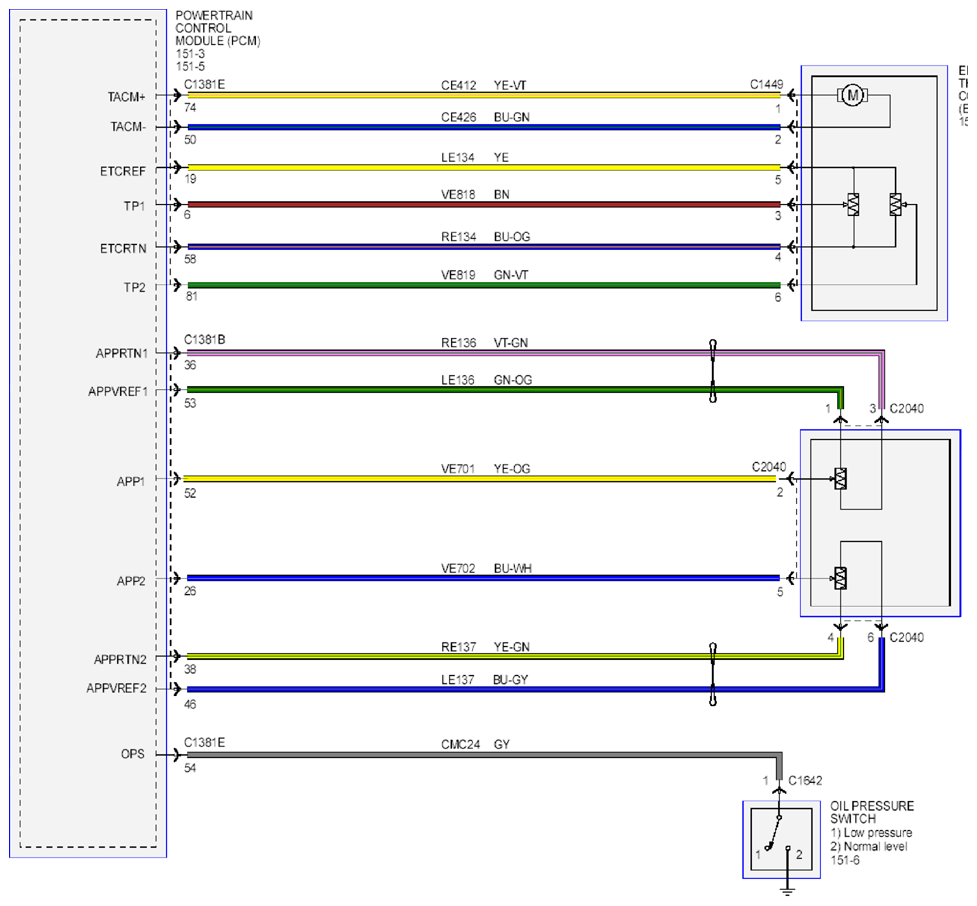

Fig 7: Electronic Engine Controls - 2.0L GTDI - Wiring Diagram (7 Of 11)

Courtesy of FORD MOTOR CO.

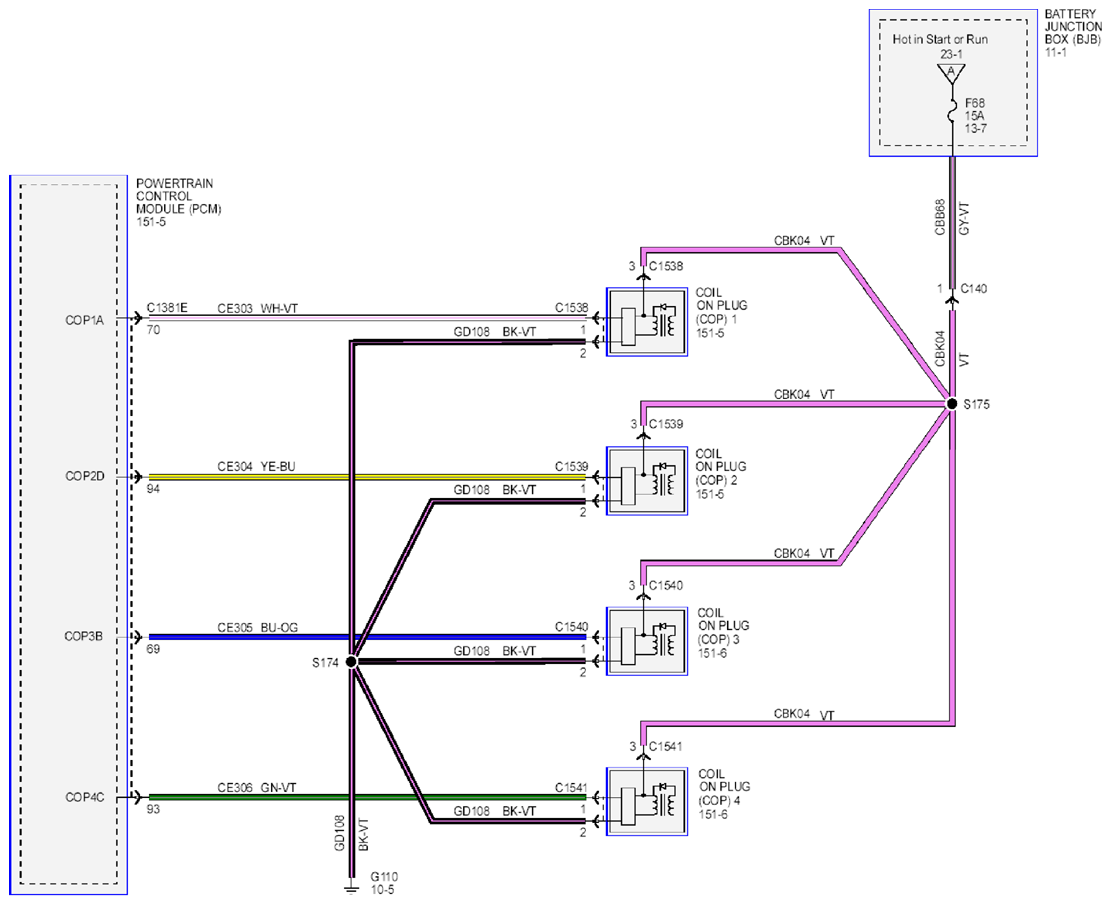

Fig 8: Electronic Engine Controls - 2.0L GTDI - Wiring Diagram (8 Of 11)

Courtesy of FORD MOTOR CO.

Fig 9: Electronic Engine Controls - 2.0L GTDI - Wiring Diagram (9 Of 11)

Courtesy of FORD MOTOR CO.

Fig 10: Electronic Engine Controls - 2.0L GTDI - Wiring Diagram (10 Of 11)

Courtesy of FORD MOTOR CO.

Fig 11: Electronic Engine Controls - 2.0L GTDI - Wiring Diagram (11 Of 11)

Courtesy of FORD MOTOR CO.
