WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

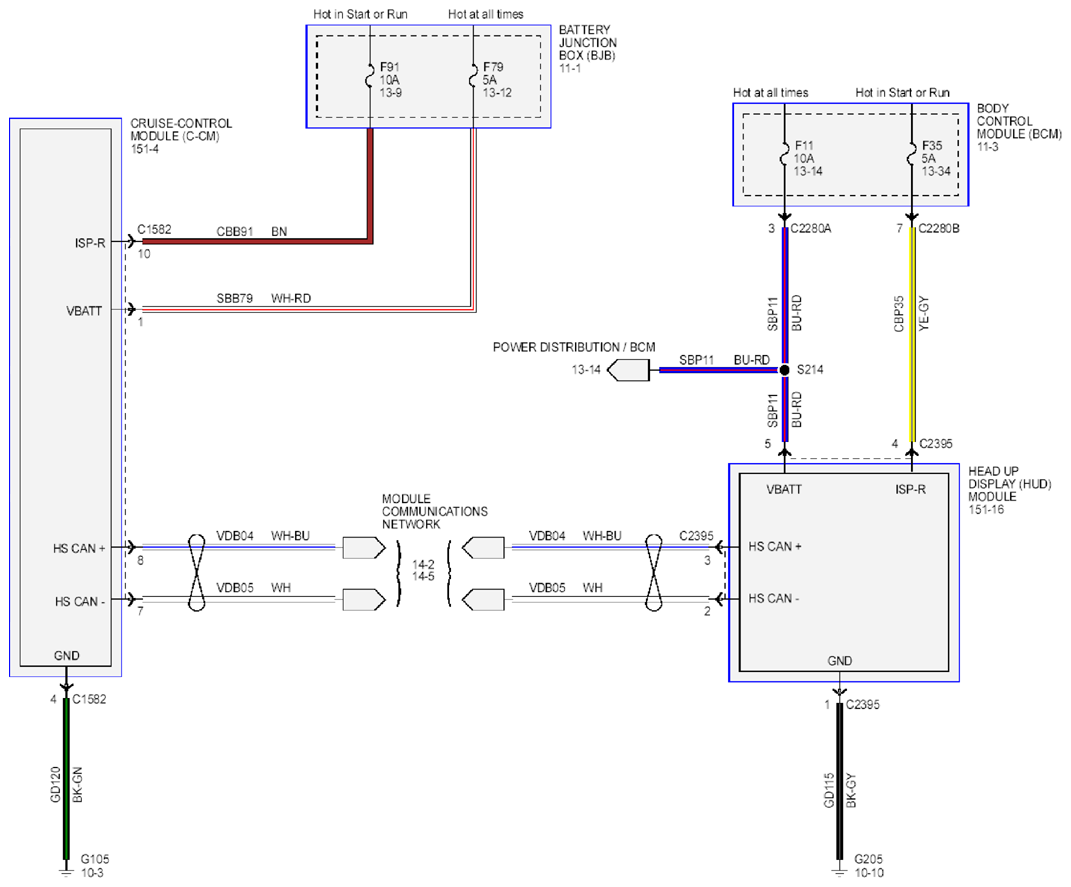

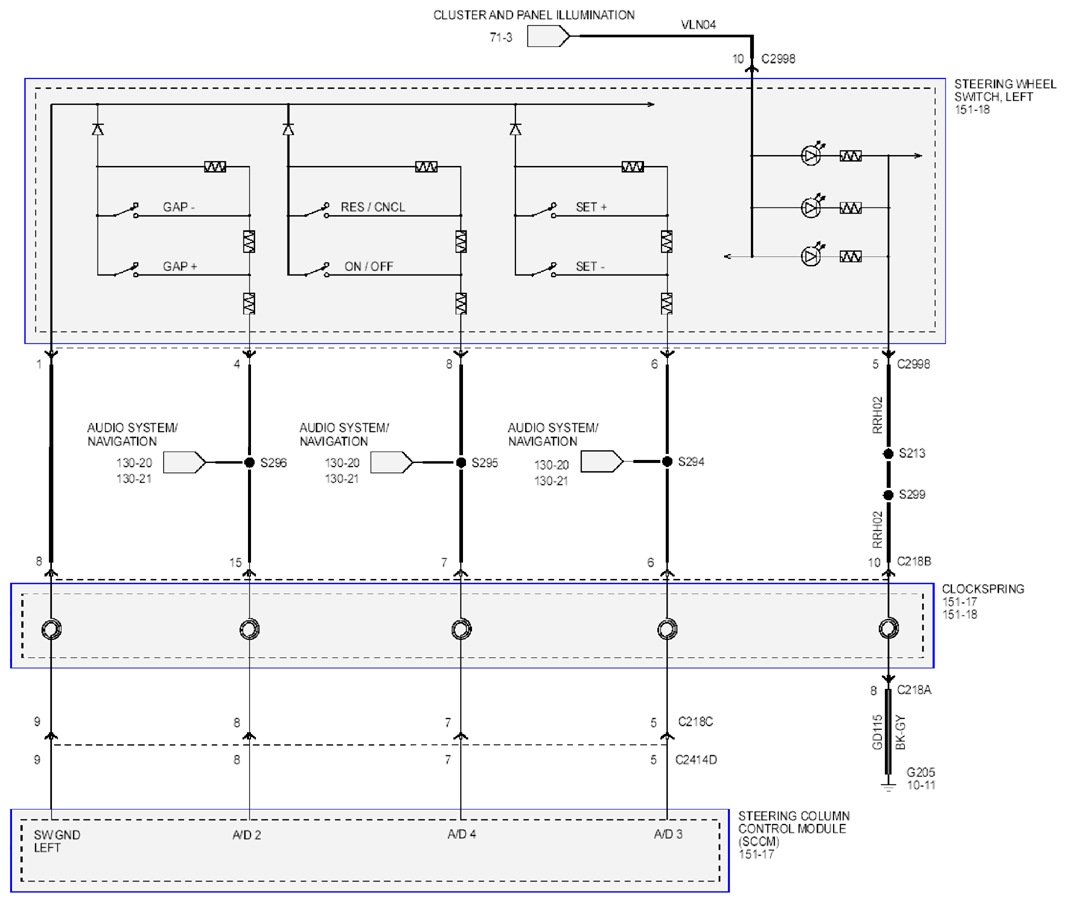

Fig 1: Cruise Control - Wiring Diagram (With Adaptive Cruise)
Courtesy of FORD MOTOR CO.
Fig 1: Cruise Control - Wiring Diagram (With Adaptive Cruise)
