WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

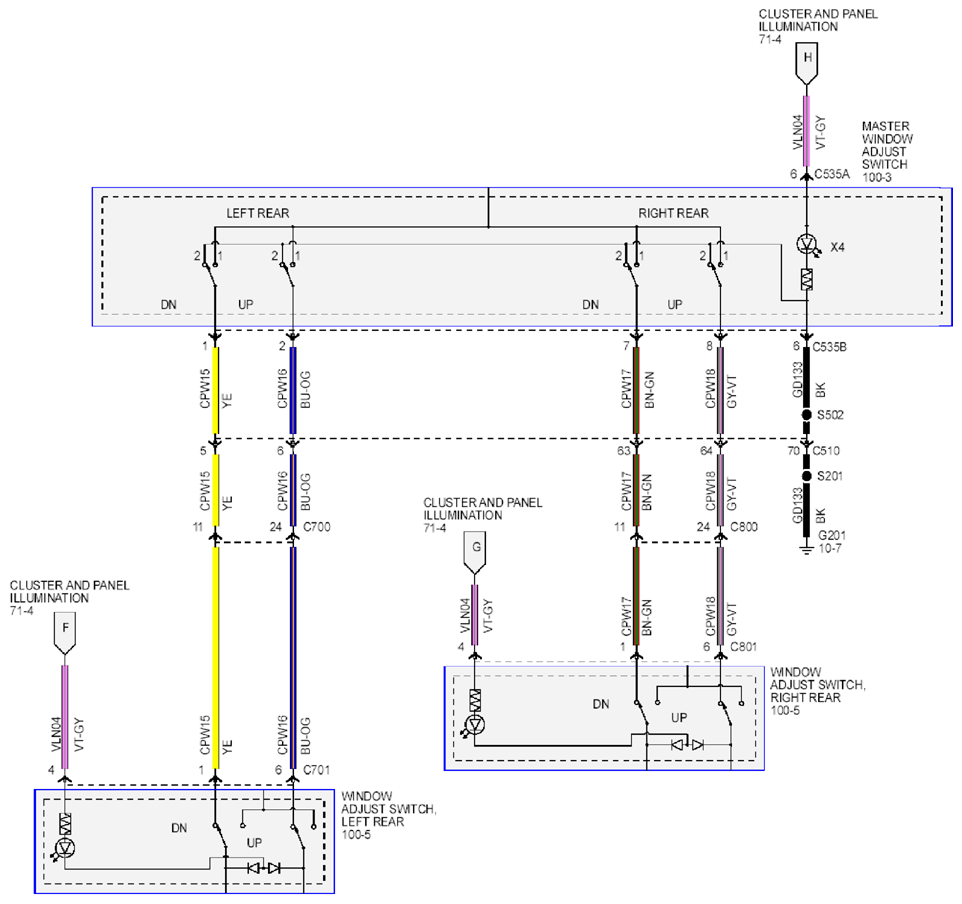

Fig 1: Cluster And Panel Illumination - Wiring Diagram (MKX; 1 Of 3)
Courtesy of FORD MOTOR CO.
Fig 2: Cluster And Panel Illumination - Wiring Diagram (MKX; 2 Of 3)
Courtesy of FORD MOTOR CO.

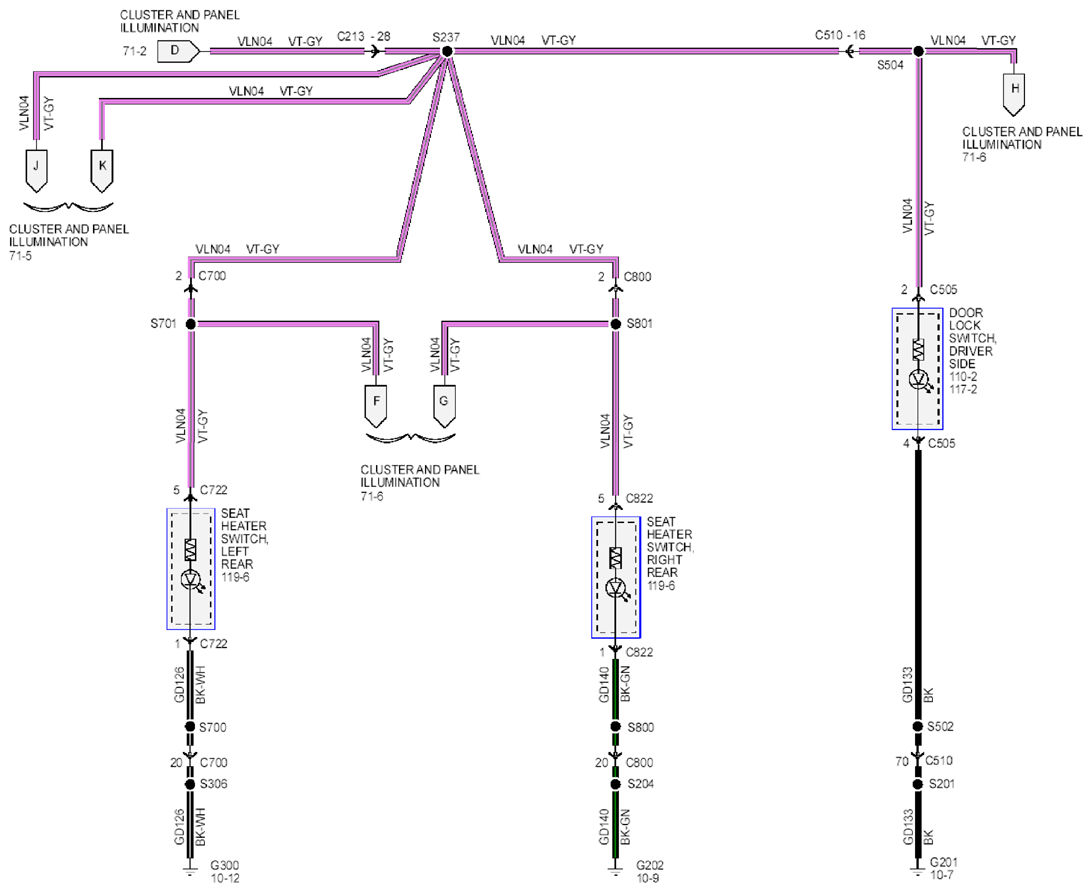

Fig 3: Cluster And Panel Illumination - Wiring Diagram (MKX; 3 Of 3)
