With Climate Controlled Seats - MKX

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

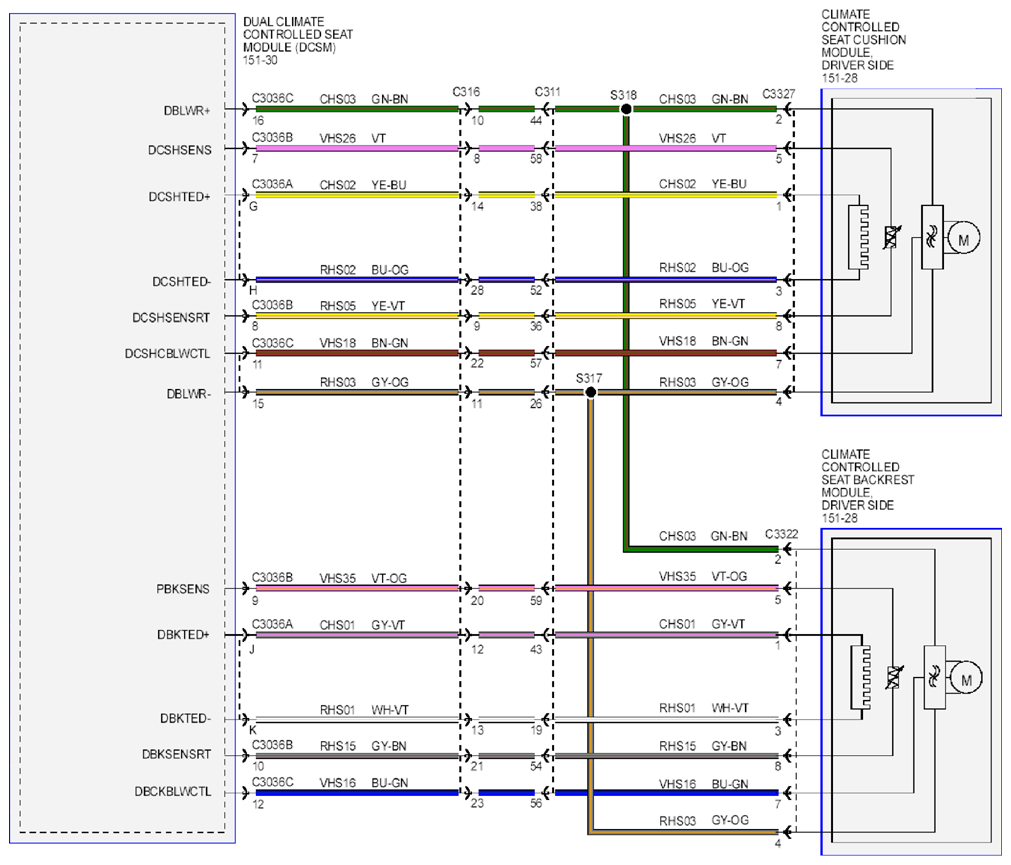

Fig 1: Climate Controlled Seats - Wiring Diagram (MKX; 1 Of 5)

Courtesy of FORD MOTOR CO.

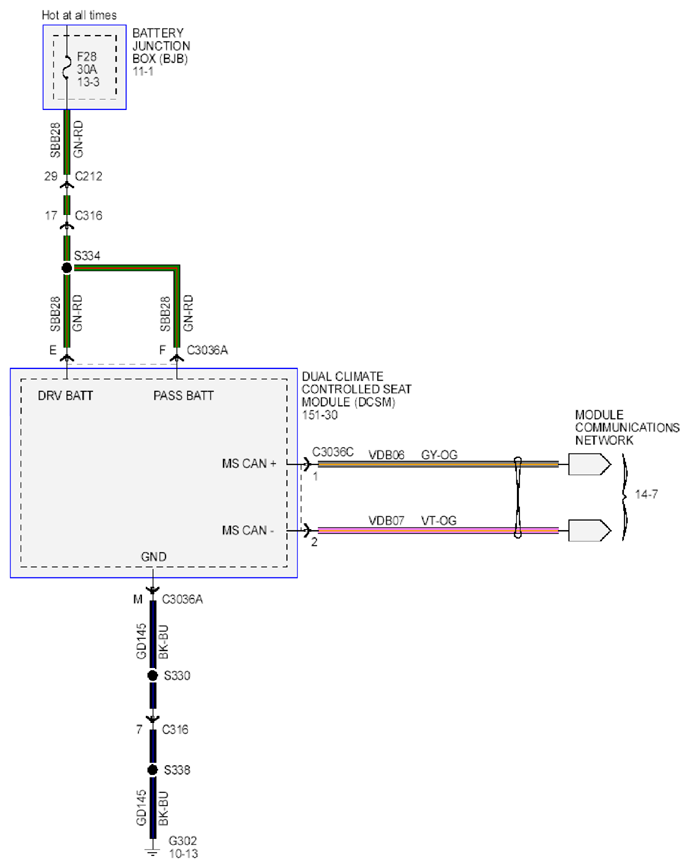

Fig 2: Climate Controlled Seats - Wiring Diagram (MKX; 2 Of 5)

Courtesy of FORD MOTOR CO.

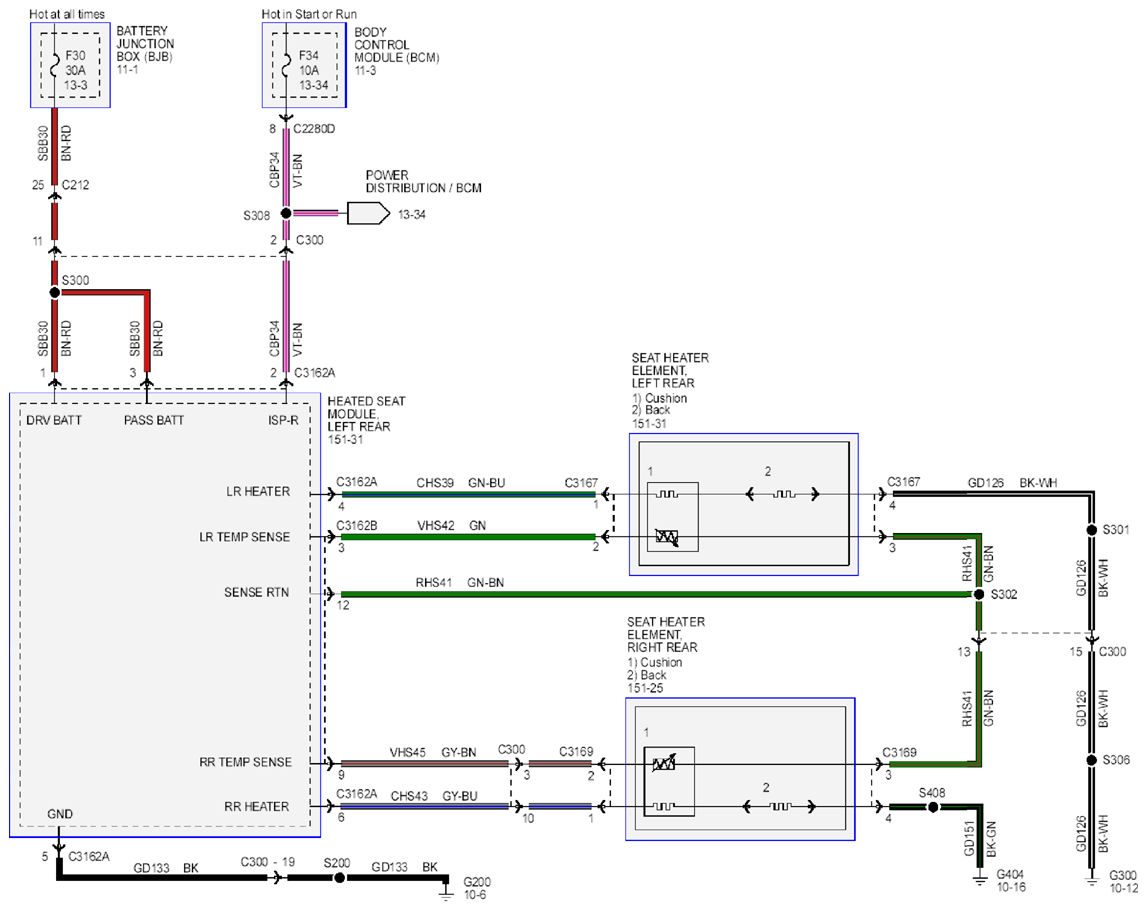

Fig 3: Climate Controlled Seats - Wiring Diagram (MKX; 3 Of 5)

Courtesy of FORD MOTOR CO.

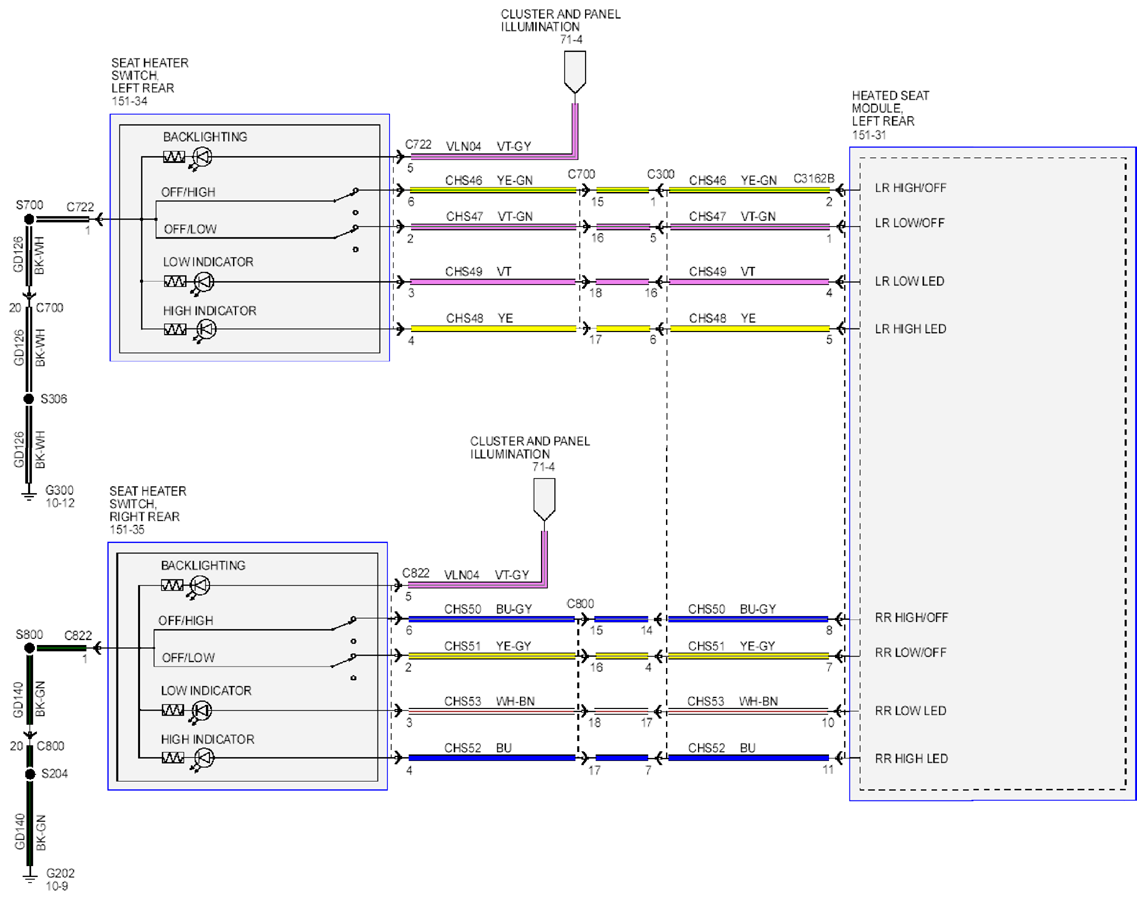

Fig 4: Climate Controlled Seats - Wiring Diagram (MKX; 4 Of 5)

Courtesy of FORD MOTOR CO.

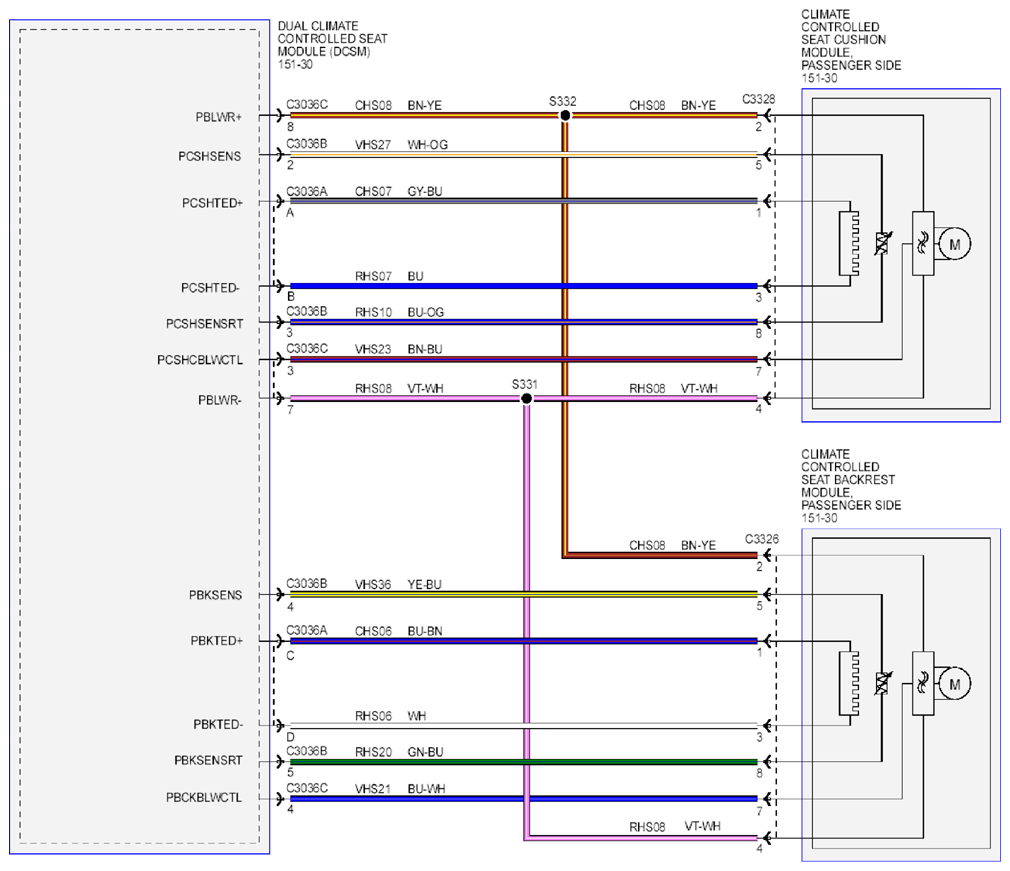

Fig 5: Climate Controlled Seats - Wiring Diagram (MKX; 5 Of 5)

Courtesy of FORD MOTOR CO.
