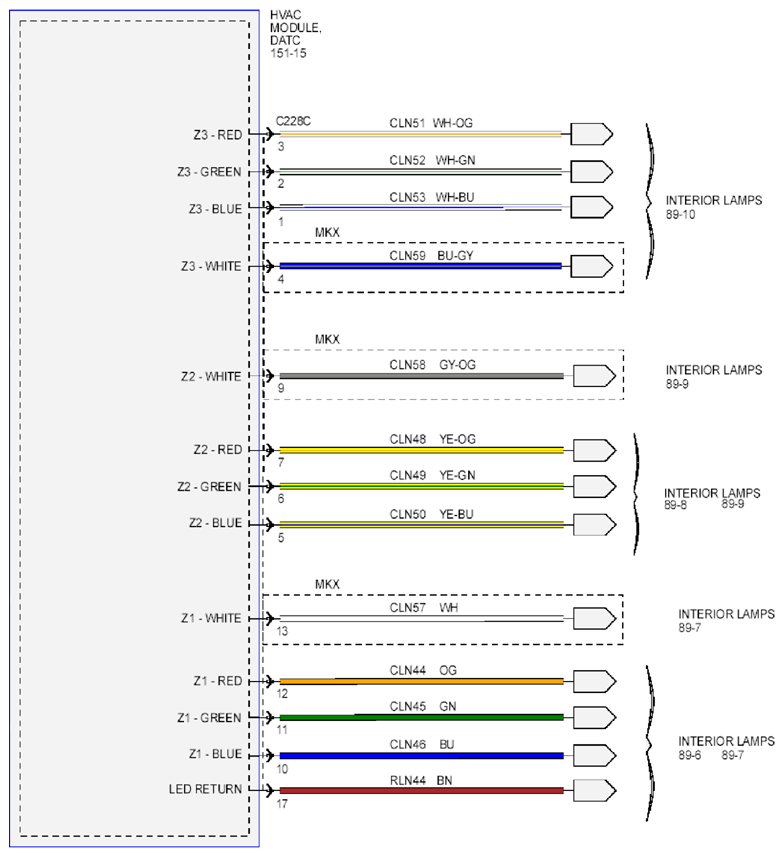

Fig 1: Automatic Climate Control System - Wiring Diagram (With Ambient Lighting; 1 Of 3)
Courtesy of FORD MOTOR CO.

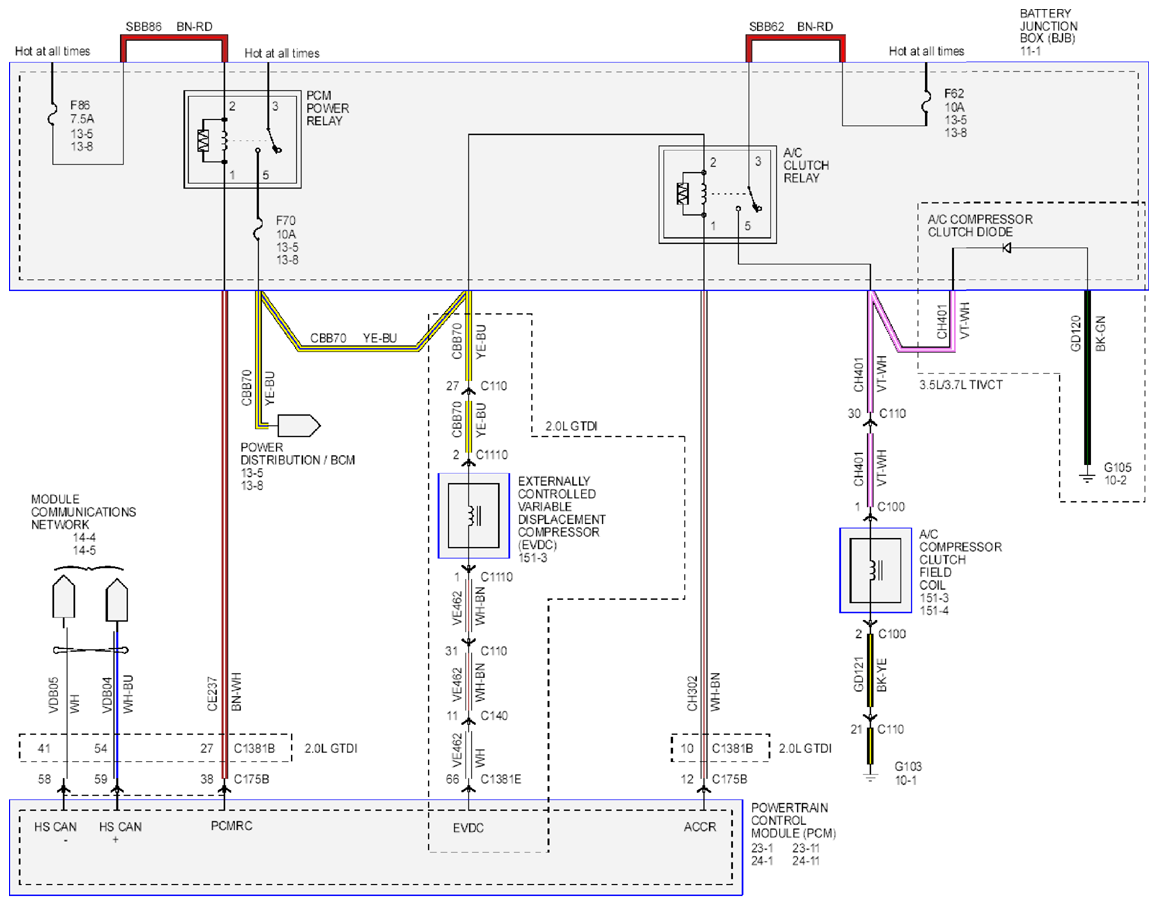

Fig 2: Automatic Climate Control System - Wiring Diagram (With Ambient Lighting; 2 Of 3)
Courtesy of FORD MOTOR CO.

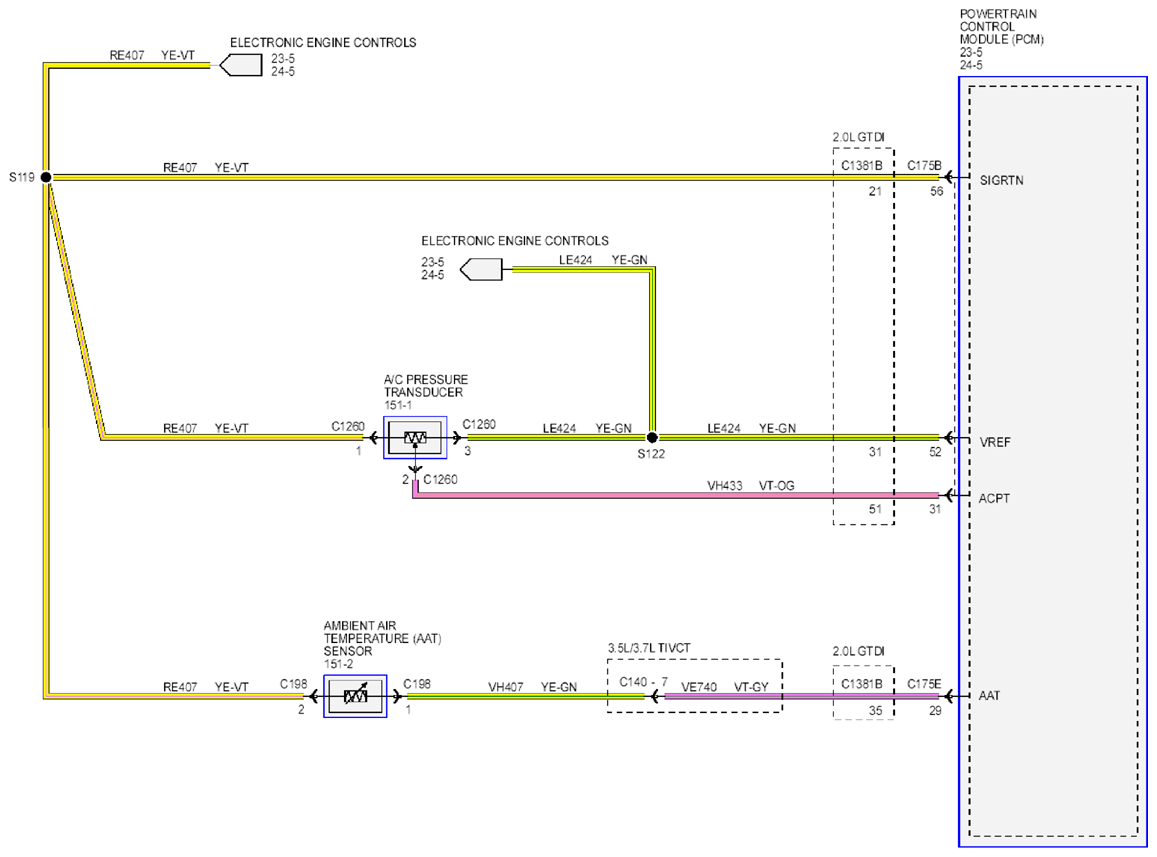

Fig 3: Automatic Climate Control System - Wiring Diagram (With Ambient Lighting; 3 Of 3)
