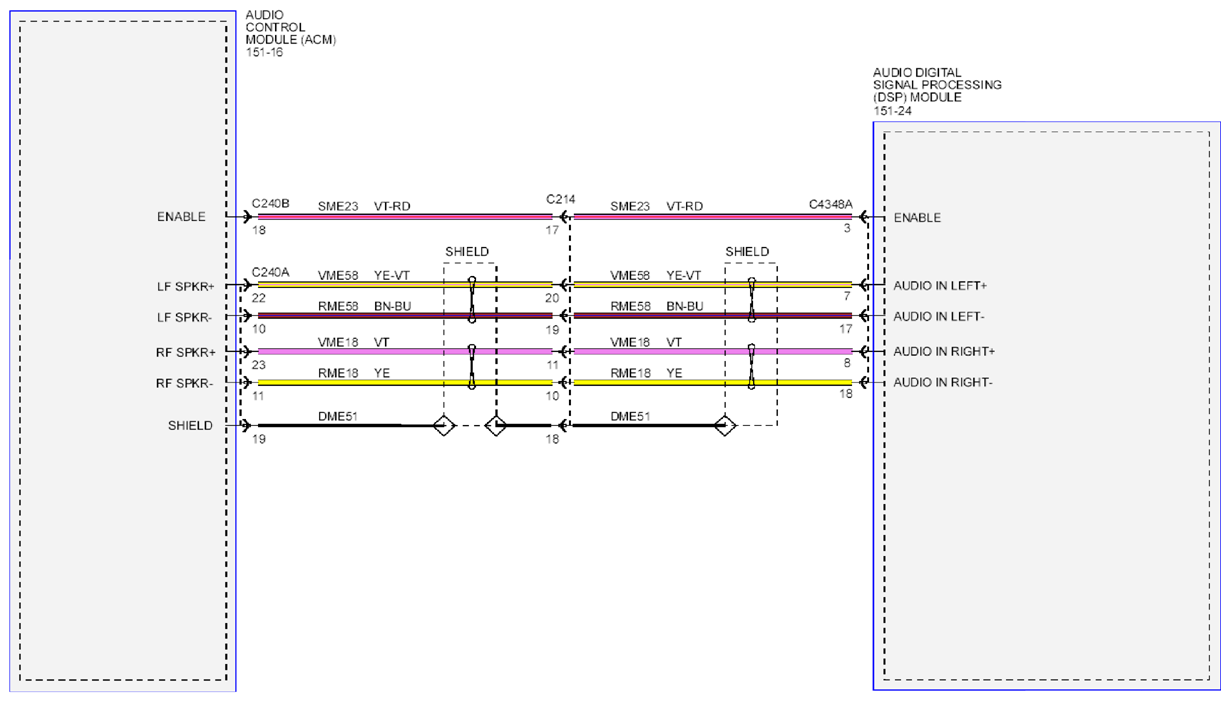

Fig 1: Audio System Navigation (THX Premium Audio) - Wiring Diagram (MKX; 1 Of 4)
Courtesy of FORD MOTOR CO.

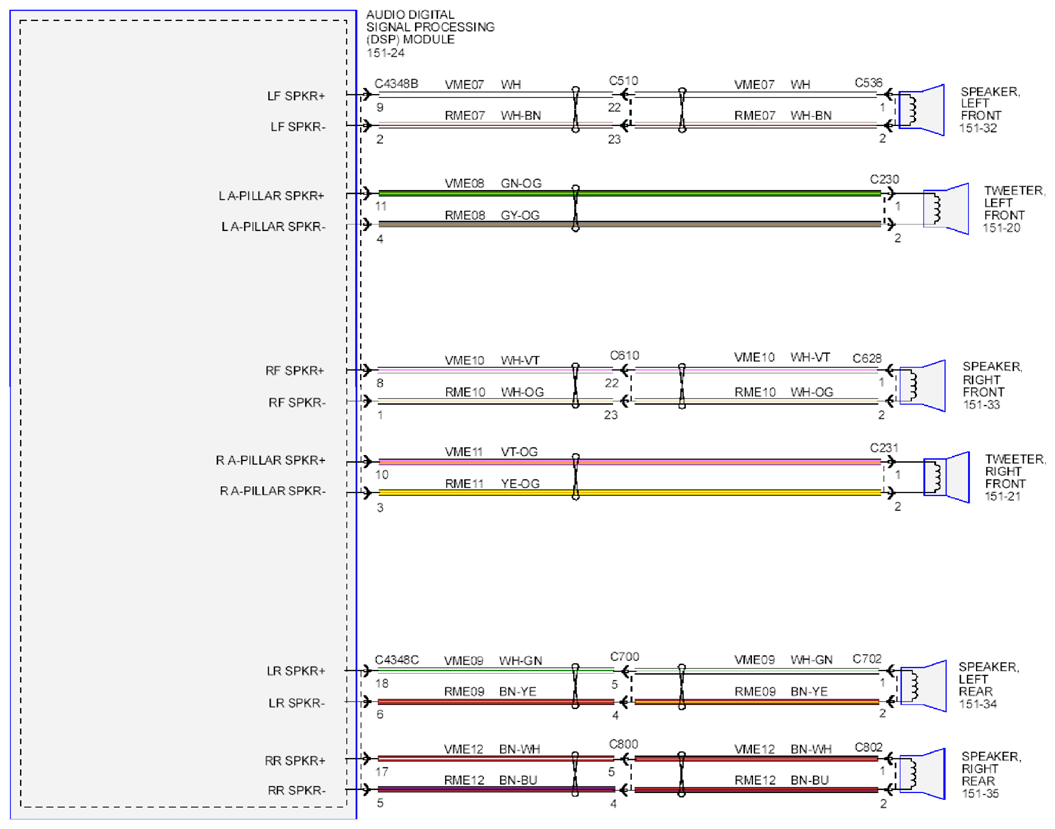

Fig 2: Audio System Navigation (THX Premium Audio) - Wiring Diagram (MKX; 2 Of 4)
Courtesy of FORD MOTOR CO.

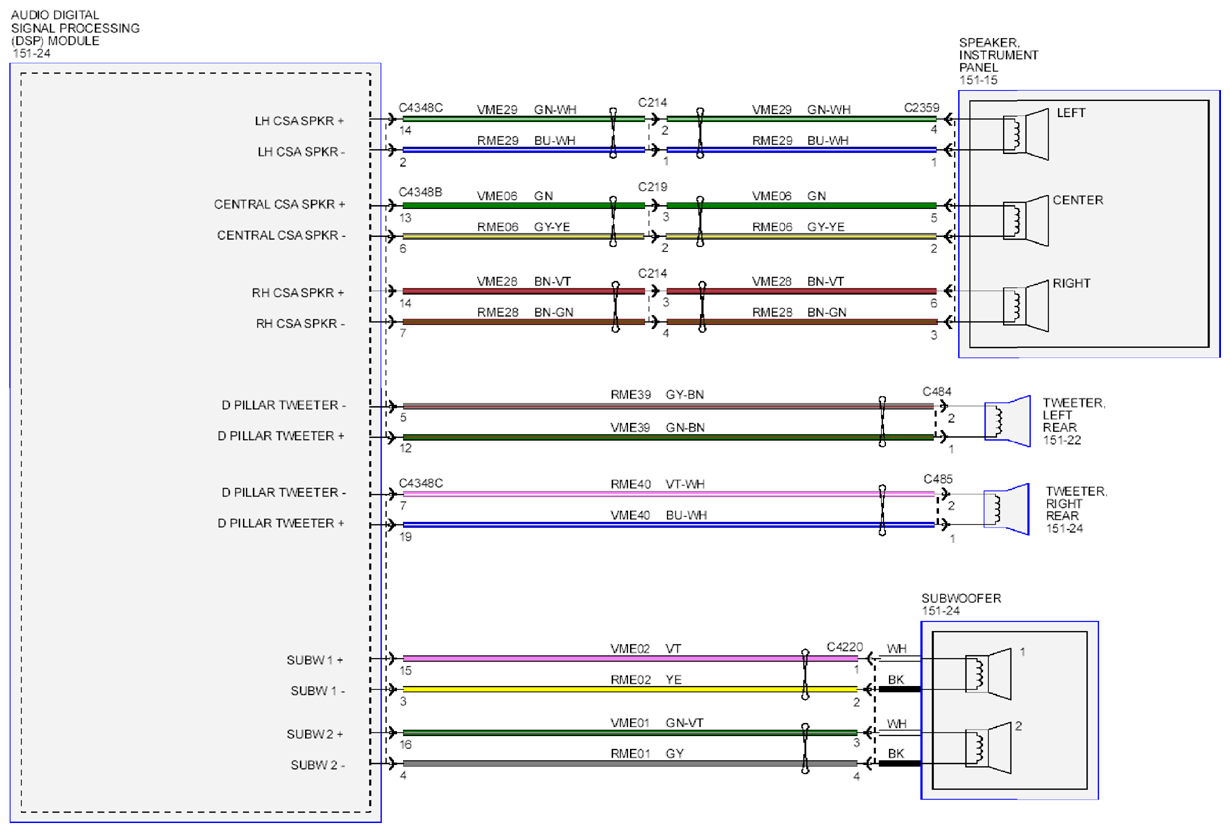

Fig 3: Audio System Navigation (THX Premium Audio) - Wiring Diagram (MKX; 3 Of 4)
Courtesy of FORD MOTOR CO.

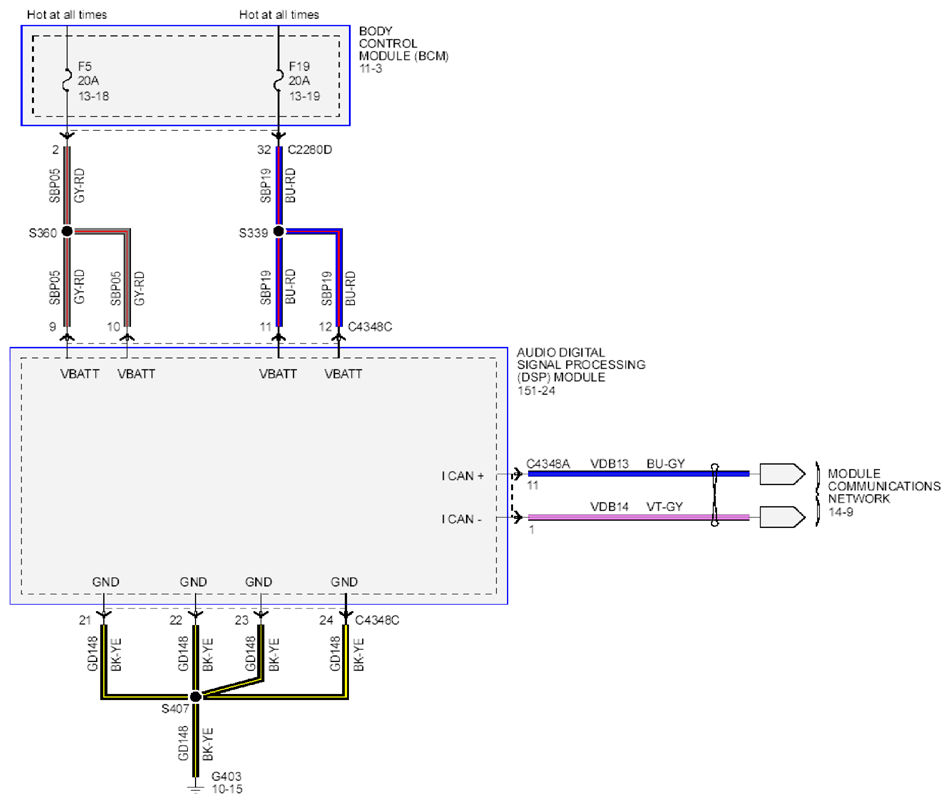

Fig 4: Audio System Navigation (THX Premium Audio) - Wiring Diagram (MKX; 4 Of 4)
