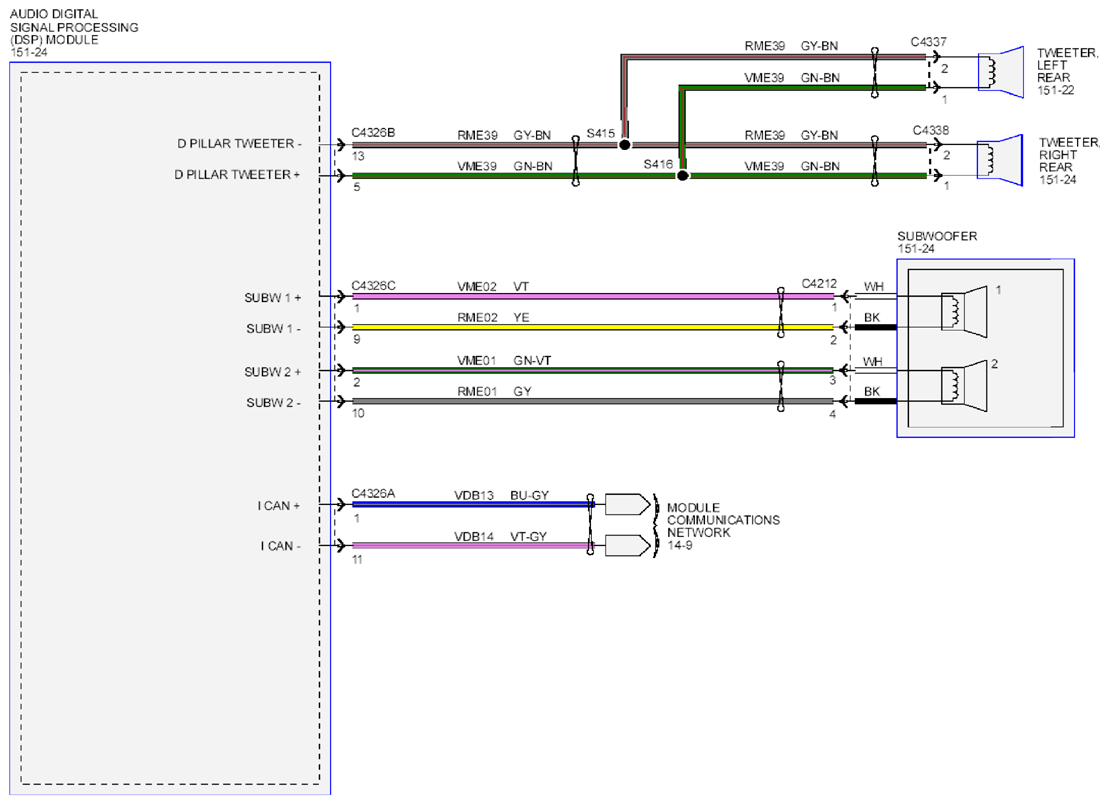

Fig 1: Audio System Navigation (Sony Premium Audio) - Wiring Diagram (EDGE; 1 Of 3)
Courtesy of FORD MOTOR CO.

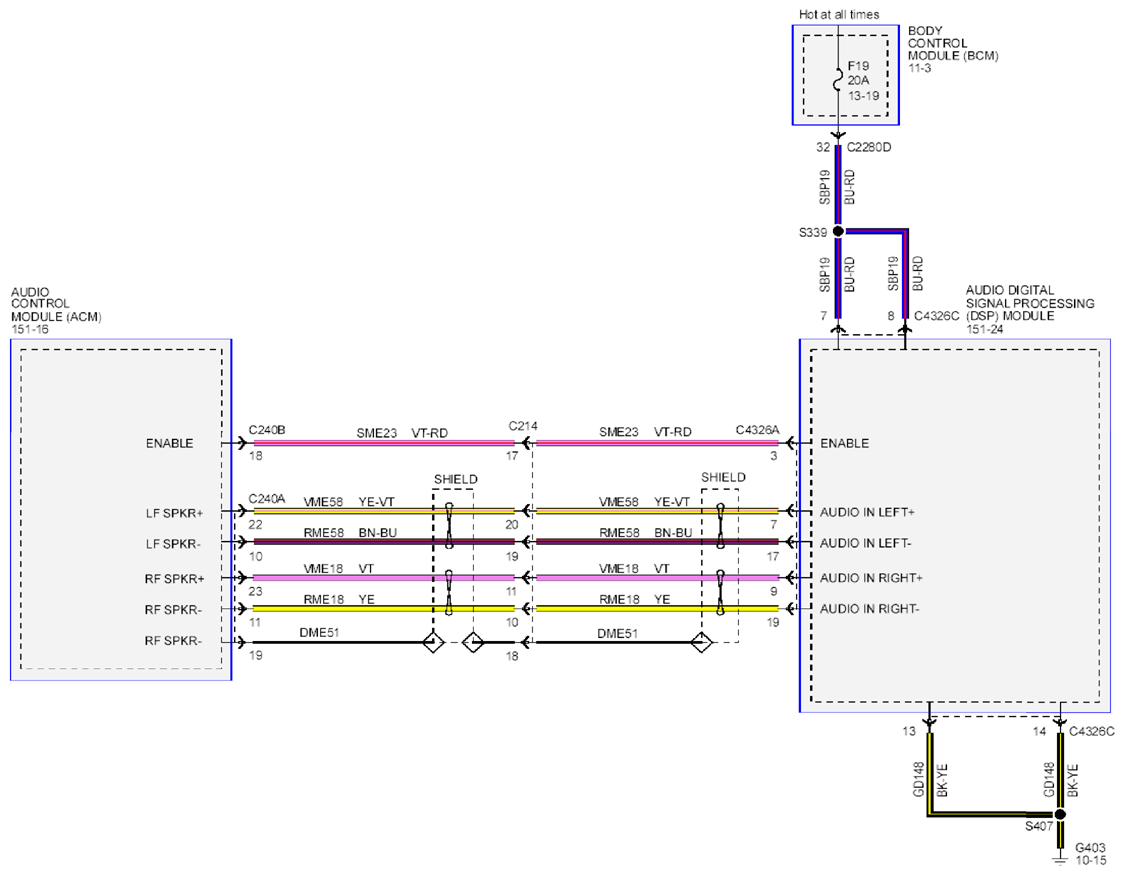

Fig 2: Audio System Navigation (Sony Premium Audio) - Wiring Diagram (EDGE; 2 Of 3)
Courtesy of FORD MOTOR CO.

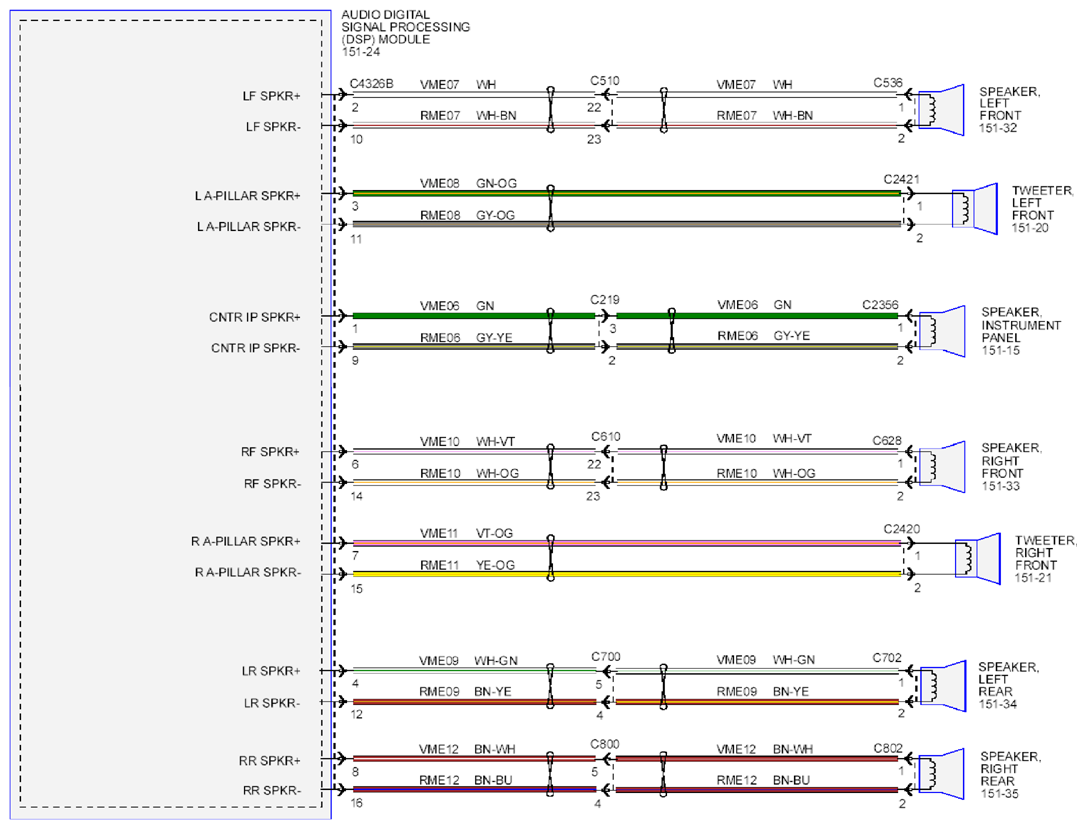

Fig 3: Audio System Navigation (Sony Premium Audio) - Wiring Diagram (EDGE; 3 Of 3)
