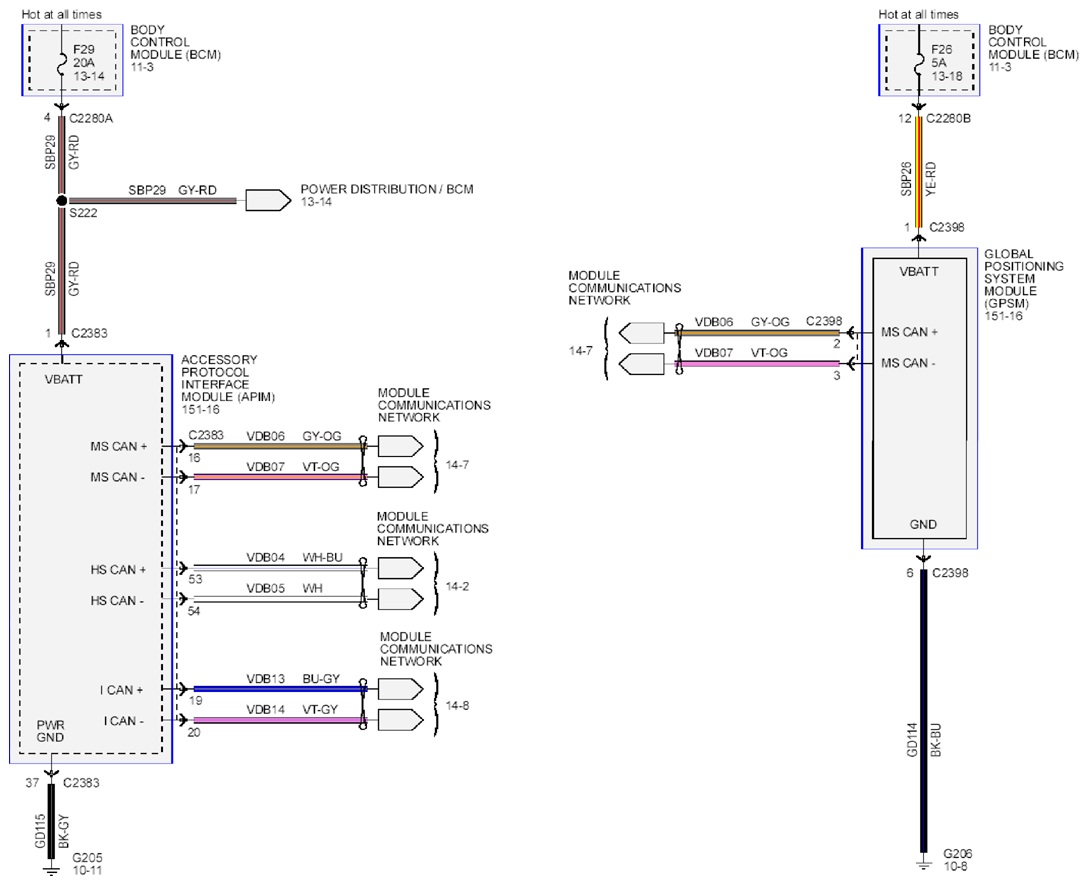

Fig 1: Audio System Navigation (Sync Gen 2) - Wiring Diagram (1 Of 5)
Courtesy of FORD MOTOR CO.

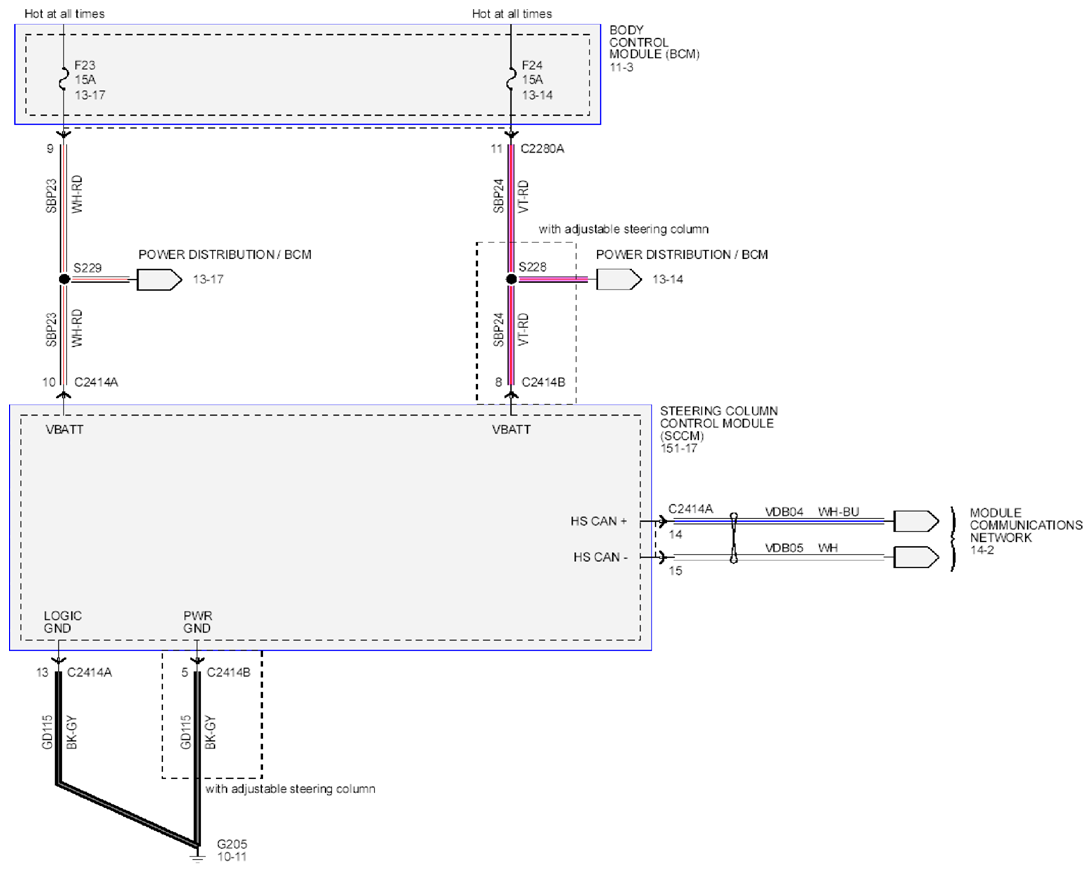

Fig 2: Audio System Navigation (Sync Gen 2) - Wiring Diagram (2 Of 5)
Courtesy of FORD MOTOR CO.

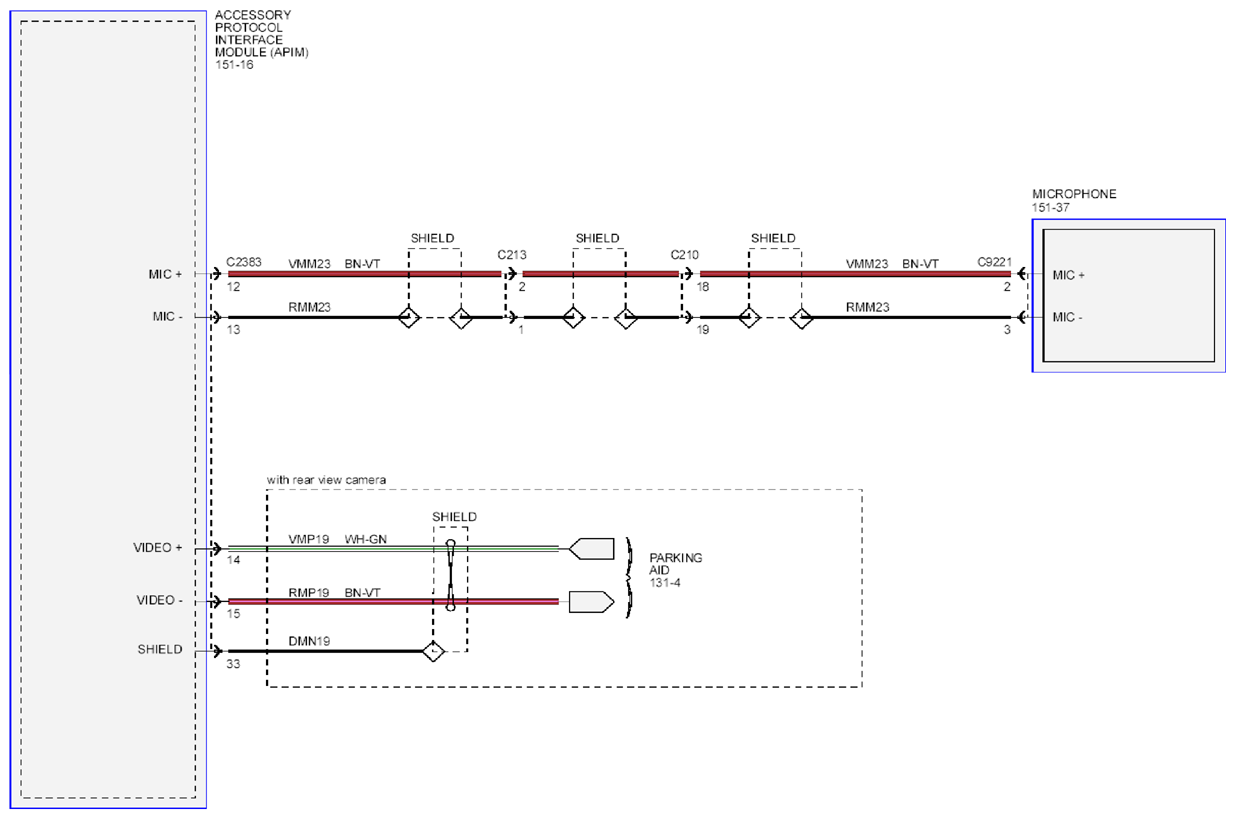

Fig 3: Audio System Navigation (Sync Gen 2) - Wiring Diagram (3 Of 5)
Courtesy of FORD MOTOR CO.

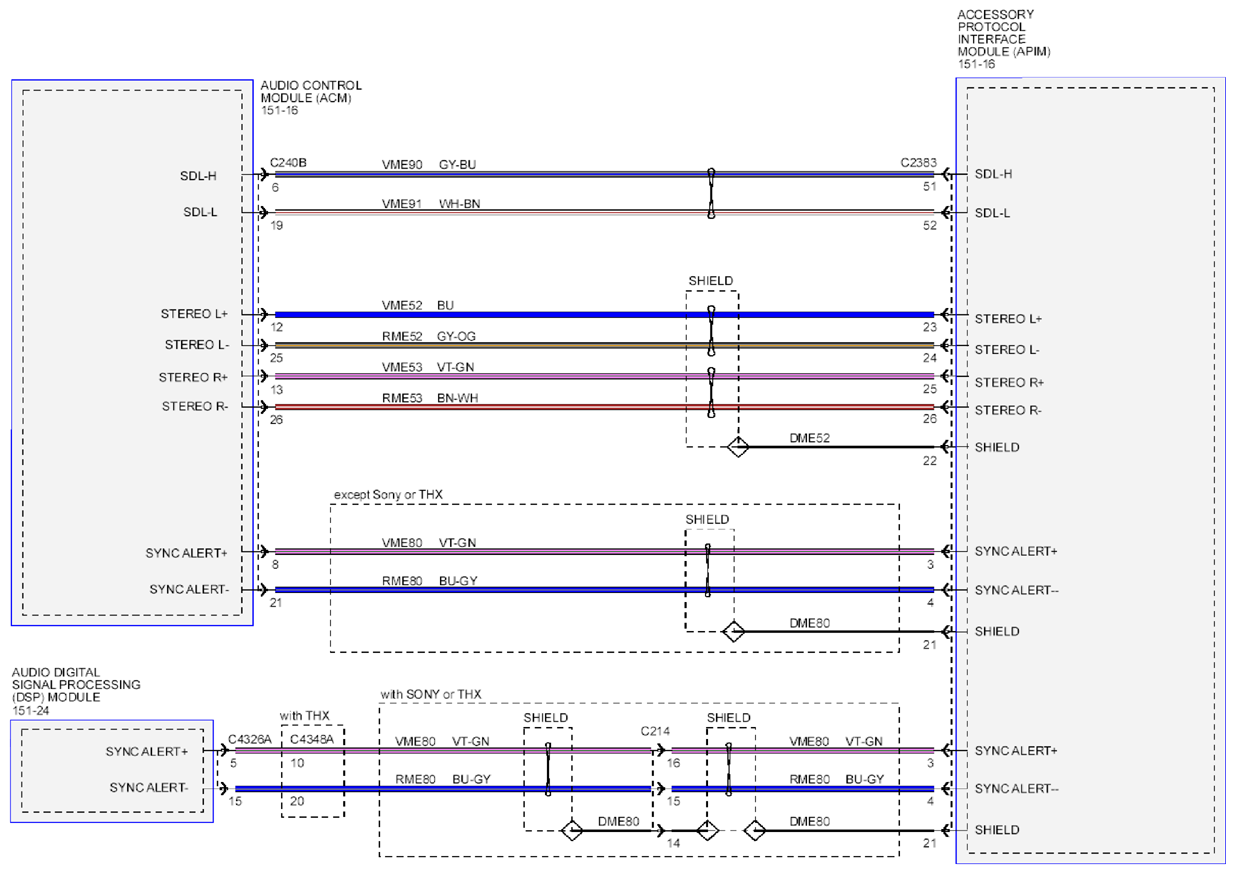

Fig 4: Audio System Navigation (Sync Gen 2) - Wiring Diagram (4 Of 5)
Courtesy of FORD MOTOR CO.

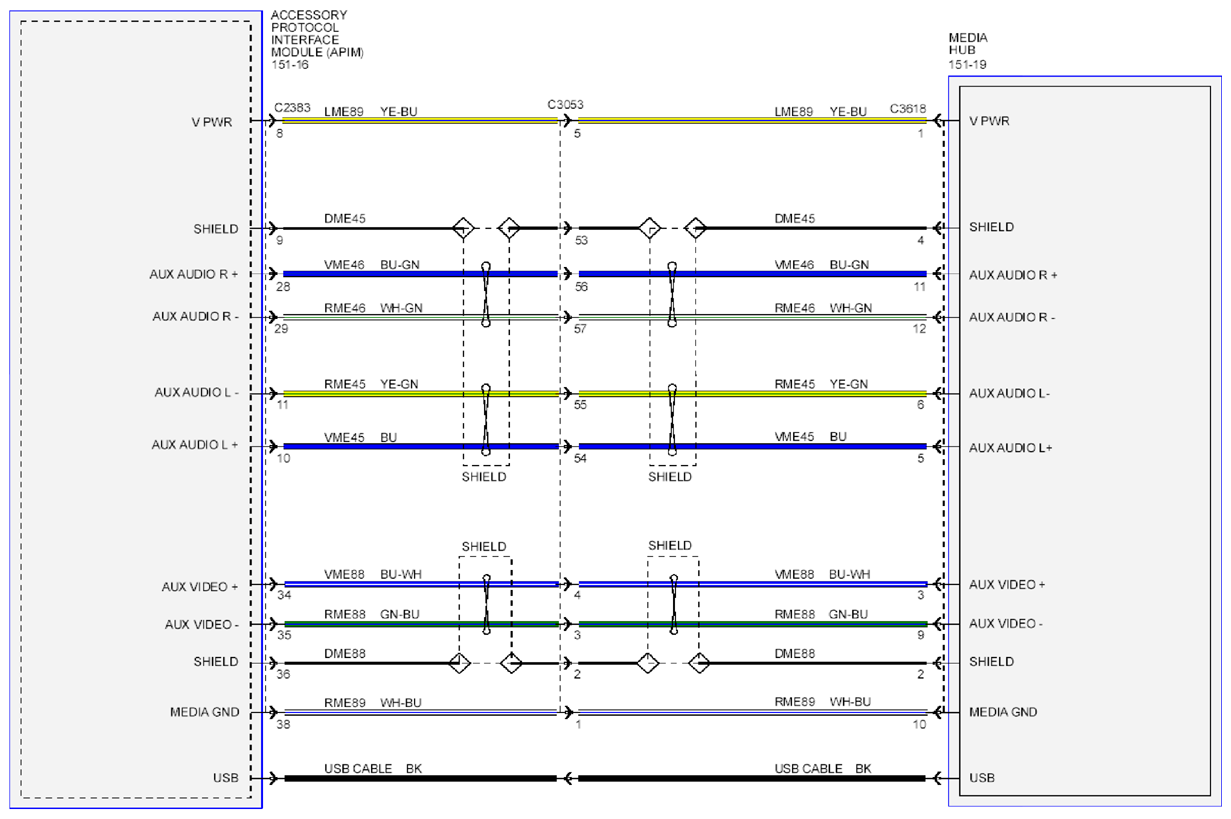

Fig 5: Audio System Navigation (Sync Gen 2) - Wiring Diagram (5 Of 5)
