Battery Junction Box (BJB)
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

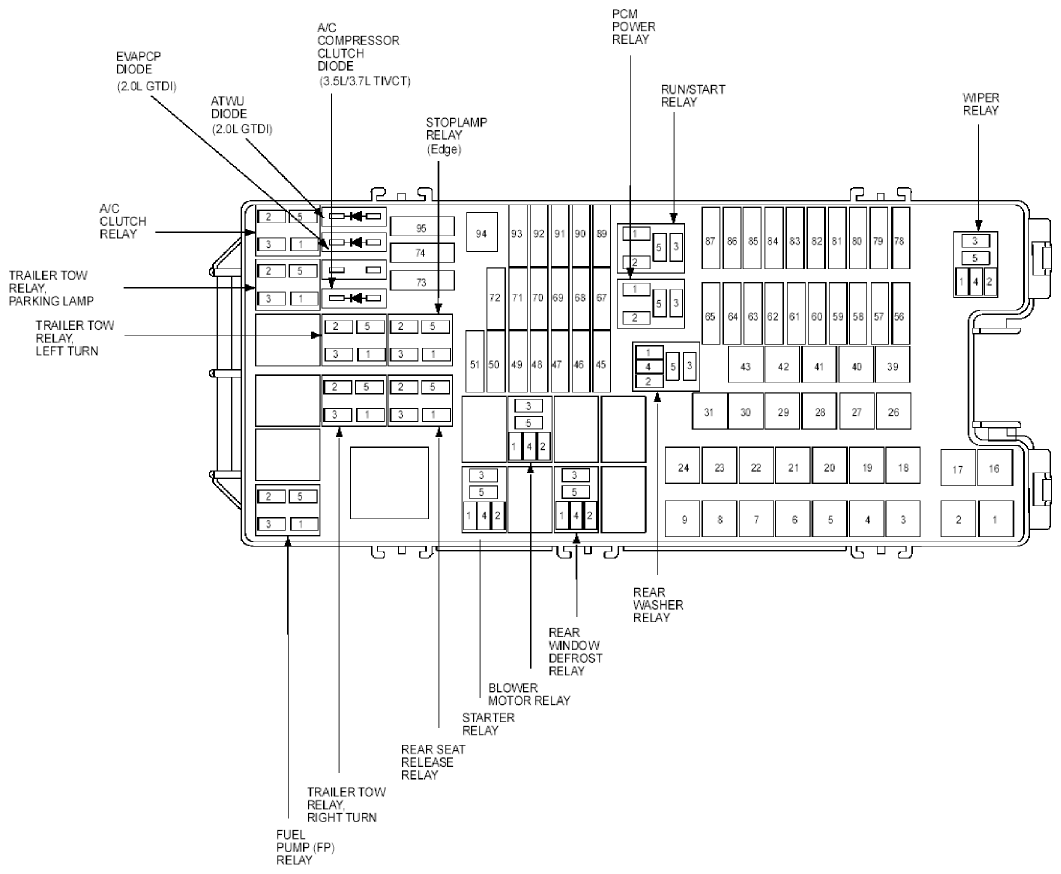

BATTERY JUNCTION BOX RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Trailer Tow Relay Left Turn |
| Trailer Tow Relay Parking Lamp |
| A/C Clutch Relay |
| Stoplamp Relay (EDGE) |
| PCM Power Relay |
| Run/Start Relay |
| Wiper Relay |
| Rear Washer Relay |
| Rear Window Defrost Relay |
| Blower Motor Relay |
| Starter Relay |
| Rear Seat Release Relay |
| Trailer Tow Relay Right Turn |
| Fuel Pump (FP) Relay |
BATTERY JUNCTION BOX (BJB)
| Fuse | Amps | Circuits protected |
|---|---|---|
| F1 | - | Not used |
| F2 | - | Not used |
| F3 | - | Not used |
| F4 | 30 | Wiper Relay |
| F5 | 40 | Anti-lock Brake System (ABS) module |
| F6 | - | Not used |
| F7 | 30 | Liftgate/Trunk Module (LTM) |
| F8 | 20 | Roof opening panel motor assembly |
| F9 | 20 | Power point console, rear |
| F16 | - | Not used |
| F17 | - | Not used |
| F18 | 40 | Blower motor relay |
| F19 | 30 | Starter relay |
| F20 | 20 | Power point console 2 |
| F21 | 20 | Power point, cargo area |
| F22 | - | Not used |
| F23 | 30 | Driver Seat Module (DSM) - with memory, Power seat switch, left - without memory |
| F24 | - | Not used |
| F26 | 40 | Rear window defrost relay |
| F27 | 20 | Power point, instrument panel |
| F28 | 30 | HVAC module, DATC (Edge) - with heated front seats, Dual Climate Controlled Seat Module (DCSM) (MKX) |
| F29 | - | Not used |
| F30 | 30 | Heated seat module, left rear |
| F31 | - | Not used |
| F39 | 60 | Cooling fan module - without trailer low |
| 40 | Cooling fan module - with trailer low | |
| F40 | 40 | Cooling fan module - with trailer low |
| F41 | - | Not used |
| F42 | 30 | Power seat switch, right |
| F43 | 25 | Anti-lock Brake System (ABS) module |
| F45 | 5 | Rain sensor module |
| F46 | - | Not used |
| F47 | - | Not used |
| F48 | - | Not used |
| F49 | - | Not used |
| F50 | 15 | Heated exterior rear view mirrors |
| F51 | - | Not used |
| F56 | 15 | Transmission Control Module (TCM) - 2.0L GTDI |
| F57 | 20 | HID Headlamp, left |
| F58 | 10 | Generator |
| F59 | 10 | Brake Pedal Position (BPP) switch |
| F60 | 15 | Stoplamp relay (Edge) |
| F61 | 10 | Rear seat release relay |
| F62 | 10 | A/C clutch relay |
| F63 | 15 | Trailer low stop/turn lamp relays |
| F64 | 20 | Rear window wiper motor |
| F65 | 15 | Fuel Pump (FP) relay |
| F67 | 20 | Mass Air Flow/Intake Air Temperature (MAF/IAT) sensor - 3.5L/3.7L TIVCT, EVAP canister purge valve, VCT solenoids, Heated oxygen sensors |
| F68 | 15 | Coil On Plugs (COPs) |
| F69 | 15 | Powertrain Control Module (PCM) - 3.5L/3.7L TIVCT |
| 20 | Powertrain Control Module (PCM) - 2.0L GTDI | |
| F70 | 10 | A/C clutch relay, All Wheel Drive (AWD) relay module - 3.5L/3.7L TIVCT, Grille shutter actuator - 2.0L GTDI, Turbocharger (TC) wastegate regulating valve solenoid - 2.0L GTDI, Turbocharger Bypass valve (TCBY) - 2.0L GTDI, Externally Controlled Variable Displacement Compressor (EVDC) - 2.0L GTDI |
| F71 | - | Not used |
| F72 | - | Not used |
| F73 | - | Not used |
| F74 | - | Not used |
| F78 | 20 | HID Headlamp, right |
| F79 | 5 | Cruise-Control Module (C-CM) |
| F80 | - | Not used |
| F81 | - | Not used |
| F82 | 15 | Rear washer relay |
| F83 | - | Not used |
| F84 | 20 | Trailer low park lamp relay |
| F85 | - | Not used |
| F86 | 7.5 | EVAP canister vent control solenoid, PCM power relay, Powertrain Control Module (PCM) - 3.5L/3.7L TIVCT |
| F87 | 5 | Run/Start relay |
| F89 | 5 | Headlamp, left - with adaptive headlamps |
| F90 | 10 | Powertrain Control Module (PCM), Transmission Control Module (TCM) |
| F91 | 10 | Cruise-Control Module (C-CM) - 3.5L/3.7L TIVCT |
| 5 | Temperature control valve, transmission fluid warmer - 2.0L GTDI | |
| F92 | 10 | Anti-lock Brake System (ABS) module |
| F93 | 5 | Blower motor relay, window defrost relay |
| F94 | 30 | Body Control Module (BCM) fusing |
| F95 | - | Not used |
