Recommended Splicing Method - Crimp (For 10-22 Awg (0.35-5.0Mm) Diameter Wire To Like Wire Diameter)

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Cut and splice one circuit at a time noting the original wire to connector pin locations. This will avoid miss-connections.
  1. Disconnect battery ground cable.
  2. Strip 6.35mm (1/4 in) of insulation from each wire end, taking care not to nick or cut wire strands.
    Fig 1: Identifying Proper And Improper Wire Strip
    G09219528Courtesy of FORD MOTOR CO.
  3. Install heat shrink tubing.
    NOTE: Use heat shrinkable tubes marked with ES-1 (16-26 AWG/0.13-1.0mm) or ES-2 (10-18 AWG/0.75-5.0mm) to seal wire splice.
  4. Select appropriate wire splice for the wires to be spliced.
  5. Identify the appropriate crimping chamber on the Rotunda 164-R5901 Pro-Crimper by matching the wire size on the dies with the wire size stamped on the butt splice.
    NOTE: Rotunda 164-R5901 Pro-Crimper is the only tool that can be used with these splices.
    Fig 2: Identifying Indenter, Cavity And Crimping Chamber
    G09219529Courtesy of FORD MOTOR CO.
  6. Center one end of the wire splice in the appropriate crimping chamber.
  7. If visible, be sure to place the brazed seam toward the indenter.
  8. Insert stripped wire into the barrel.
  9. Holding the wire in place, barrel squeeze tool handles appropriate ratchet releases.
  10. Repeating steps  5- 7, crimp the other half of the splice.
    NOTE: It is reccomended to apply solder at the ends of the barrel.
    Fig 3: Inserting Stripped Wire Into Barrel
    G09219530Courtesy of FORD MOTOR CO.
  11. Check for acceptable crimp.
    1. Crimp should be centered on each end of the butt splice.
    2. Wire insulation does not enter butt splice.
    3. Wire is visible through inspection hole of splices.
      Fig 4: Checking Acceptable Crimp
      G09219531Courtesy of FORD MOTOR CO.
  12. Evenly position supplied heat shrink tubing over wire repair.
  13. Use shielded heat gun to heat the repaired area until adhesive flows out of both ends of the heat shrink tubing.
  14. Reconnect battery ground cable.
    Fig 5: Heating Repaired Area
    G09219532Courtesy of FORD MOTOR CO.

    This chart is to be used when pigtails or terminals are of different wire gauge than the vehicle harness.

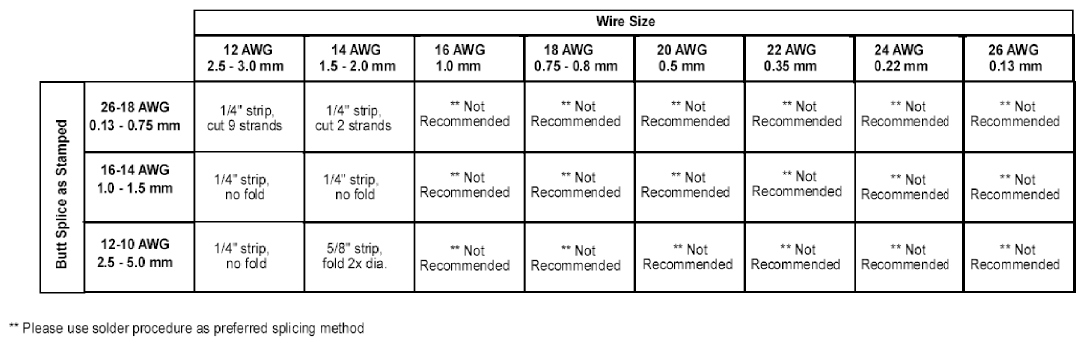

    Fig 6: Wire Size Chart
    G09219533Courtesy of FORD MOTOR CO.
    NOTE: If joining a smaller diameter vehicle wire size to a larger diameter pigtail, it is acceptable to cut strands from the pigtail to fit a barrel splice if necessary.
