Instrument Panel Upper Section - RH

Remove the passenger air bag module. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .
Remove the 4 instrument top panel-to-instrument panel screws from the back side of the instrument panel.
Remove the RH instrument trim panel. For additional information, refer to Instrument Panel - Exploded View .
Remove the RH vent register. For additional information, refer to CLIMATE CONTROL .
Remove the Front Controls Interface Module (FCIM) and instrument panel speaker. For additional information, refer to INFORMATION AND ENTERTAINMENT SYSTEMS .
Remove the screw from the lower left corner of the RH instrument panel top cover.
- To install, tighten to 3 Nm (27 lb-in).

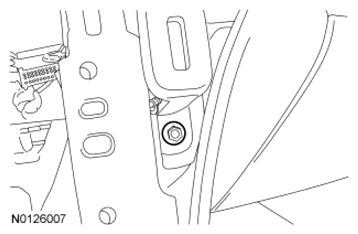

Fig 1: Identifying Lower Left Corner Screw Of LH Instrument Panel Top Cover
Courtesy of FORD MOTOR CO.
Remove the screw from the lower right side of the RH instrument panel top cover.
- To install, tighten to 3 Nm (27 lb-in).

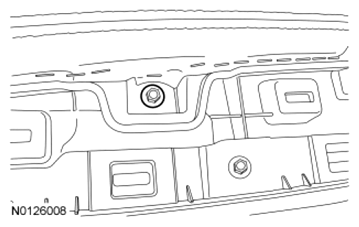

Fig 2: Identifying Lower Right Side Screw Of RH Instrument Panel Top Cover
Courtesy of FORD MOTOR CO.
Remove the RH instrument panel top cover by pulling straight back to disengage the clips.
To install, reverse the removal procedure.
