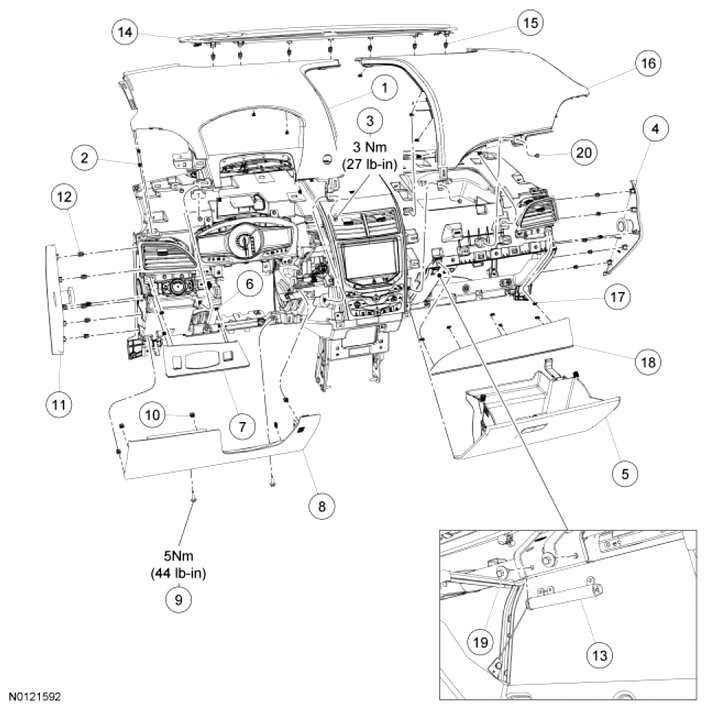

| 1 |
78044F58 |
LH Instrument Panel Cluster (IPC) top cover |
| 2 |
W790178 |
Clip (9 required) |
| 3 |
W707628 |
IPC top cover screws (2 required) |
| 4 |
7804480 |
RH instrument panel side trim panel |
| 5 |
7806024 |
Glove compartment |
| 6 |
W790178 |
Clip (4 required) |
| 7 |
78044A91 |
Left finish panel |
| 8 |
7804459 |
Steering column opening trim panel |
| 9 |
W505424 |
Steering column opening trim panel screws (2 required) |
| 10 |
W790178 |
Clip (5 required) |
| 11 |
7804481 |
LH instrument panel side trim panel |
| 12 |
W790178 |
Clip (6 required) |
| 13 |
7806200 |
Glove compartment dampener |
| 14 |
78044E82 |
Defroster grille |
| 15 |
W790178 |
Defroster grille clip (7 required) |
| 16 |
78044F58 |
RH IPC top cover |
| 17 |
W790178 |
RH instrument trim panel clip (7 required) |
| 18 |
7804338 |
RH instrument trim panel |
| 19 |
W710506 |
Glove compartment dampener screw (2 required) |
| 20 |
W707628 |
RH IPC top cover screw (27 required) |
