Brake Booster: Installation

  1. NOTE: Make sure the brake booster rod is positioned correctly into the clevis block.

    To install, reverse the removal procedure.

  2. Visual Check.

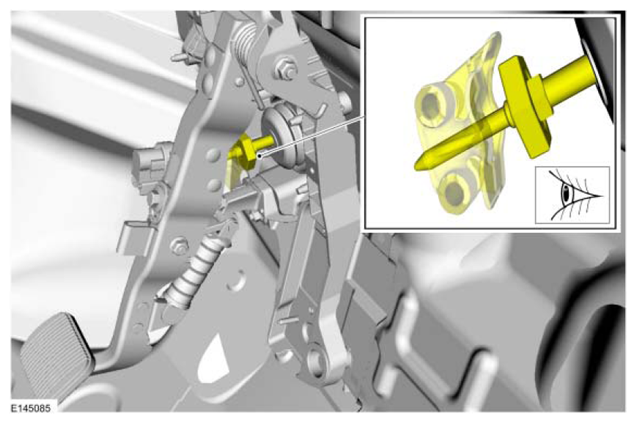

G08408041Courtesy of FORD MOTOR CO.
