Brake Vacuum Pump: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: COOLING FAN MOTOR AND SHROUD .
  2. Torque  : 10 Nm
    G08408059Courtesy of FORD MOTOR CO.

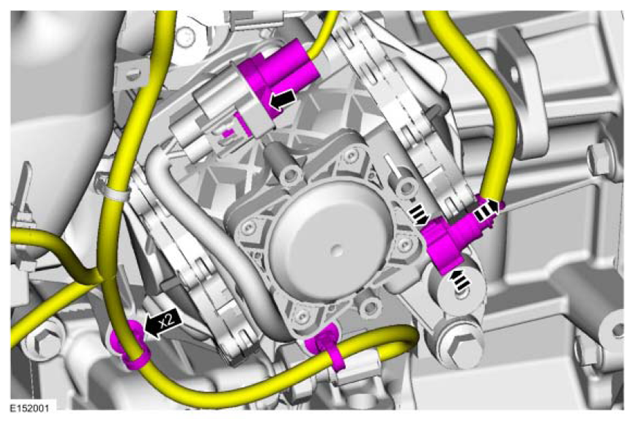

  3. G08408060Courtesy of FORD MOTOR CO.
  4. Torque  : 48 Nm
    G08408061Courtesy of FORD MOTOR CO.

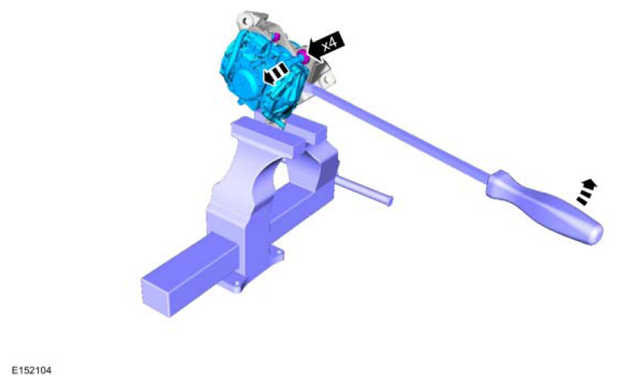

  5. General Equipment  : Vise
    G08408062Courtesy of FORD MOTOR CO.
