Symptom Chart - Automatic Transaxle/Transmission - 4F27E
>>
Diagnostic Routines
>>
Engagement Concerns: 201A/301A - 209/309
>>

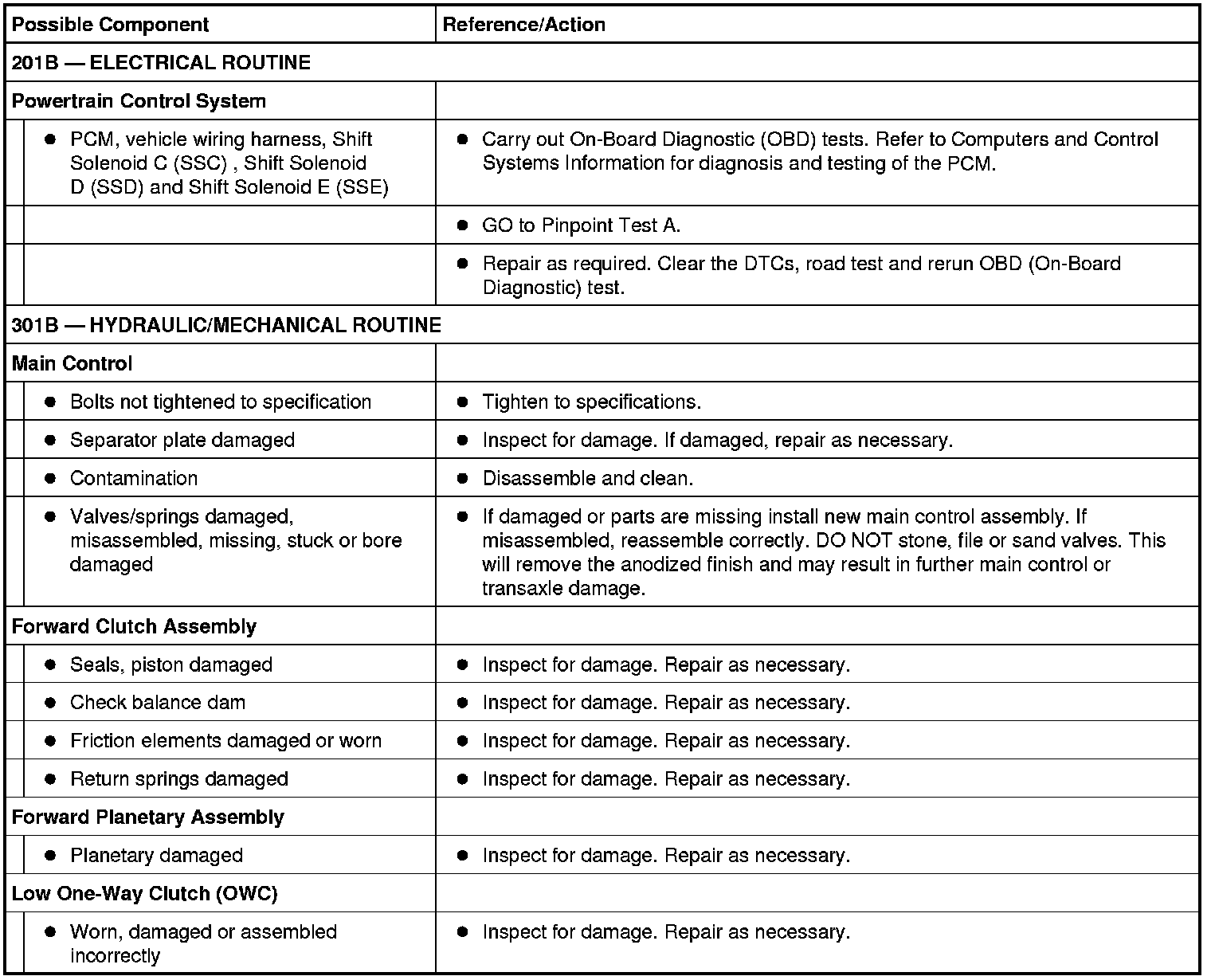

201B/301B, No Forward In Overdrive (O/D) Only (All Positions)
201B/301B, No Forward In Overdrive (O/D) Only (All Positions)
Diagnostic Routines
Engagement Concern: No Forward ONLY (All Positions)
