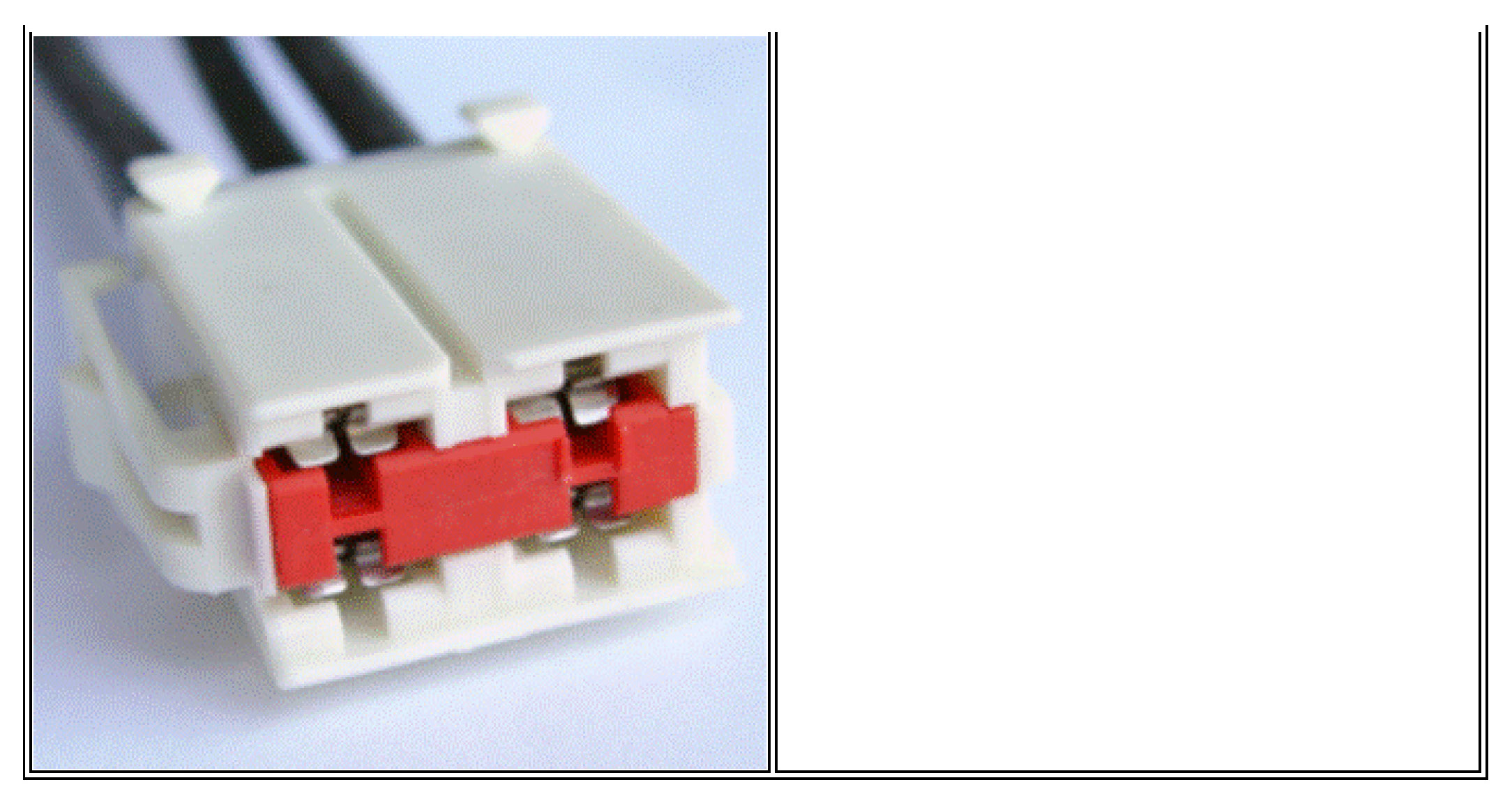

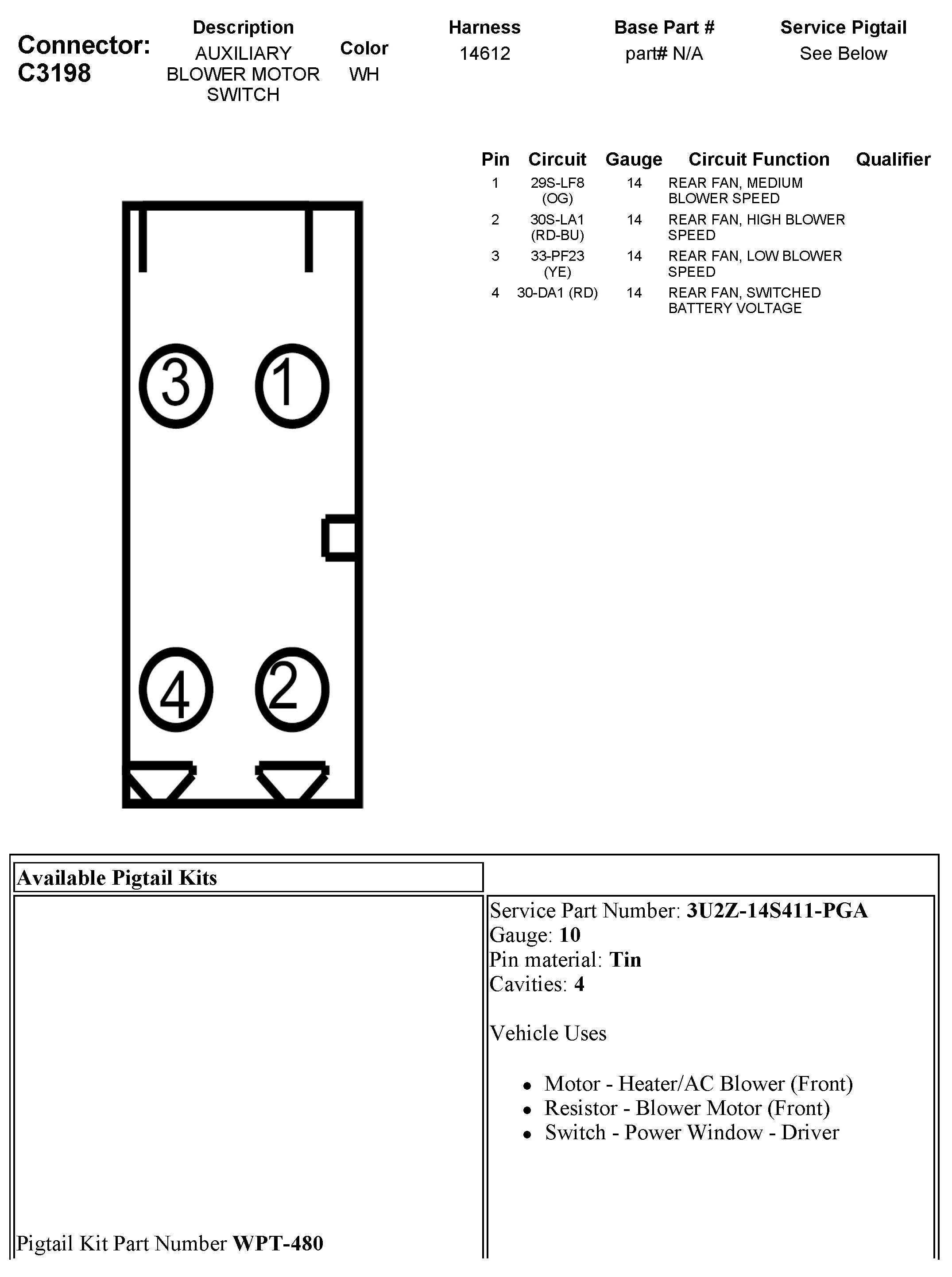

Home >> Ford >> 2012 >> Transit Connect L4-2.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - HVAC >> Blower Motor Switch >> Diagrams >> C3198 Auxiliary Blower Motor Switch
