Home >> Ford >> 2012 >> Transit Connect L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 92 (Parking, Rear and License Lamps)

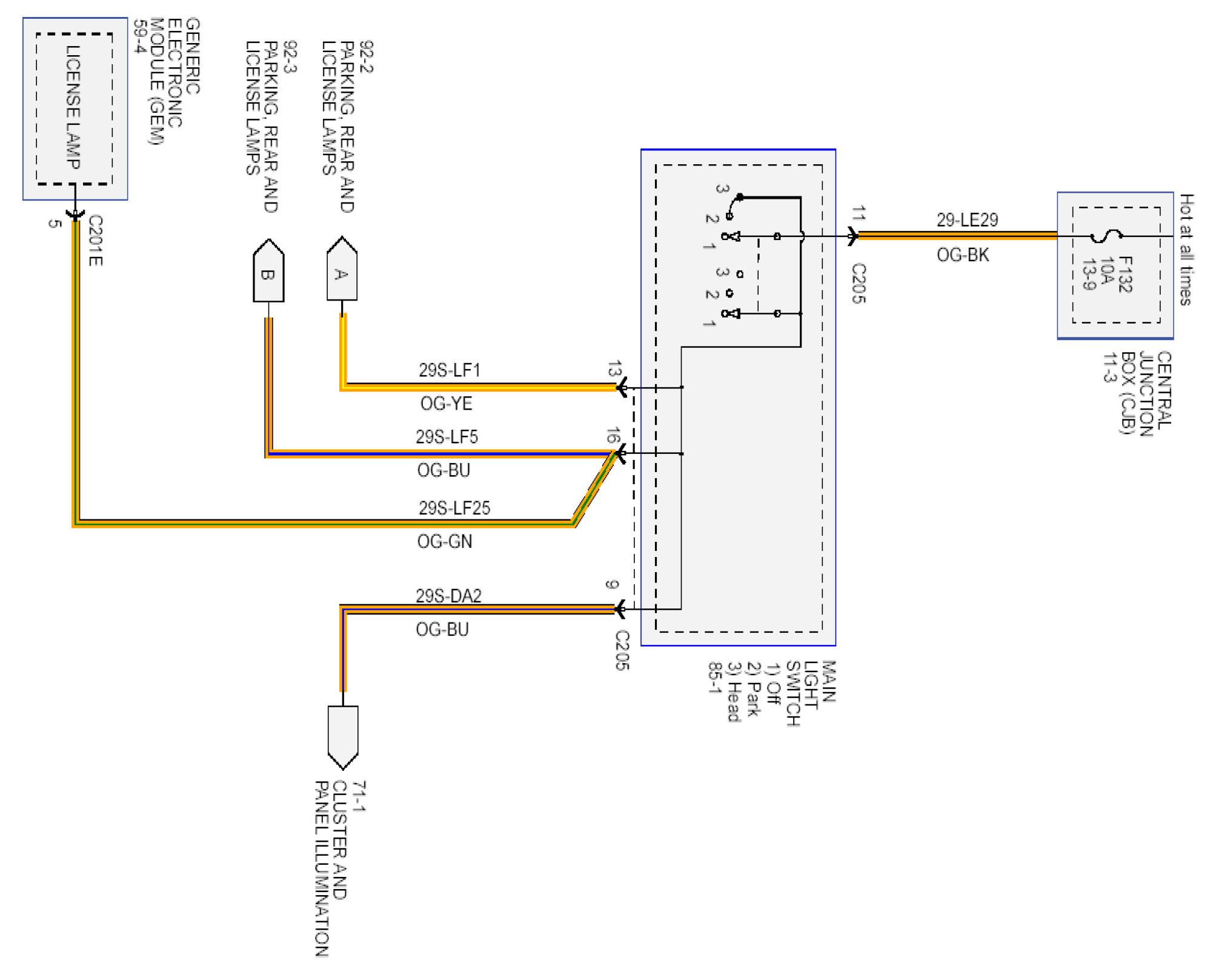

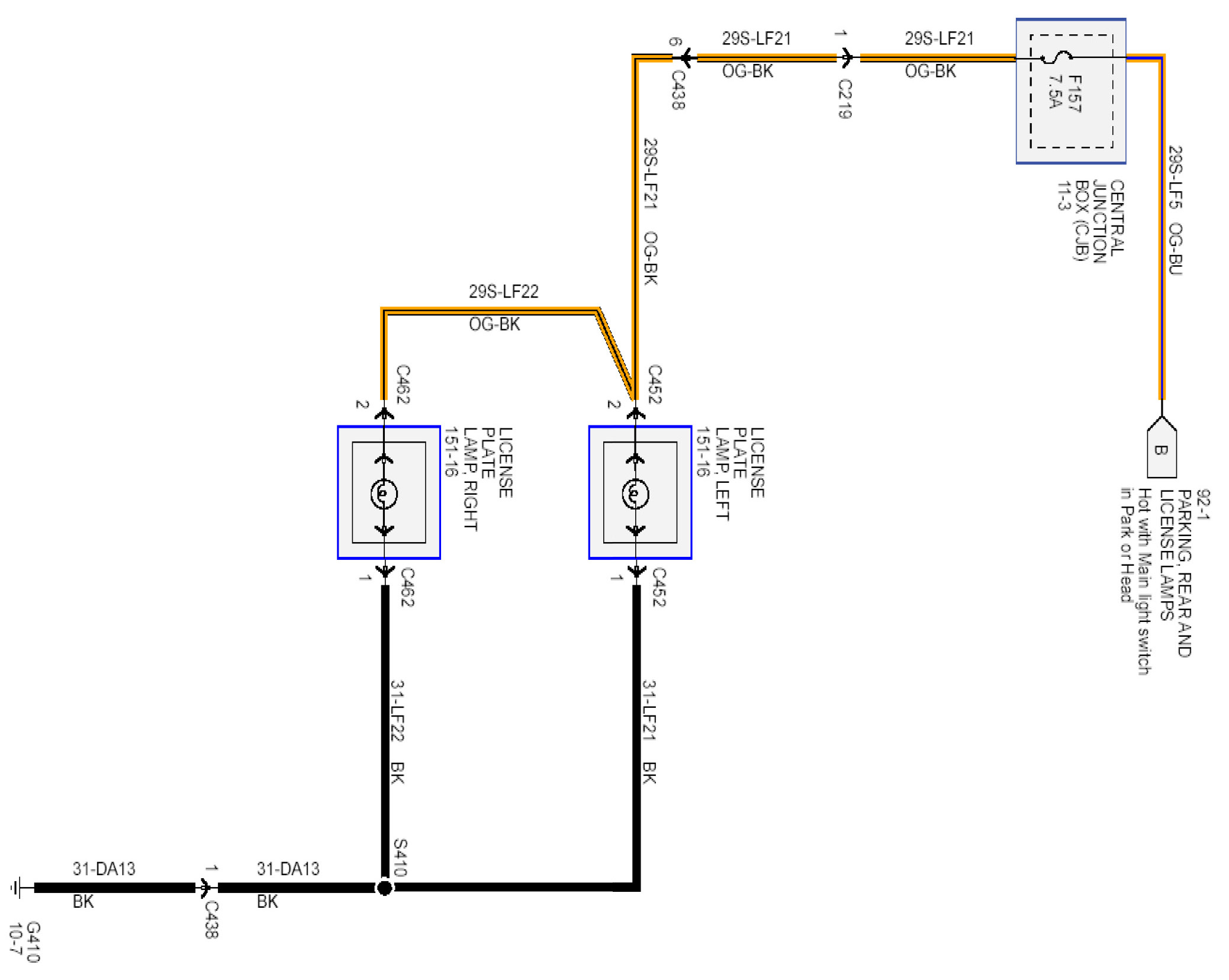

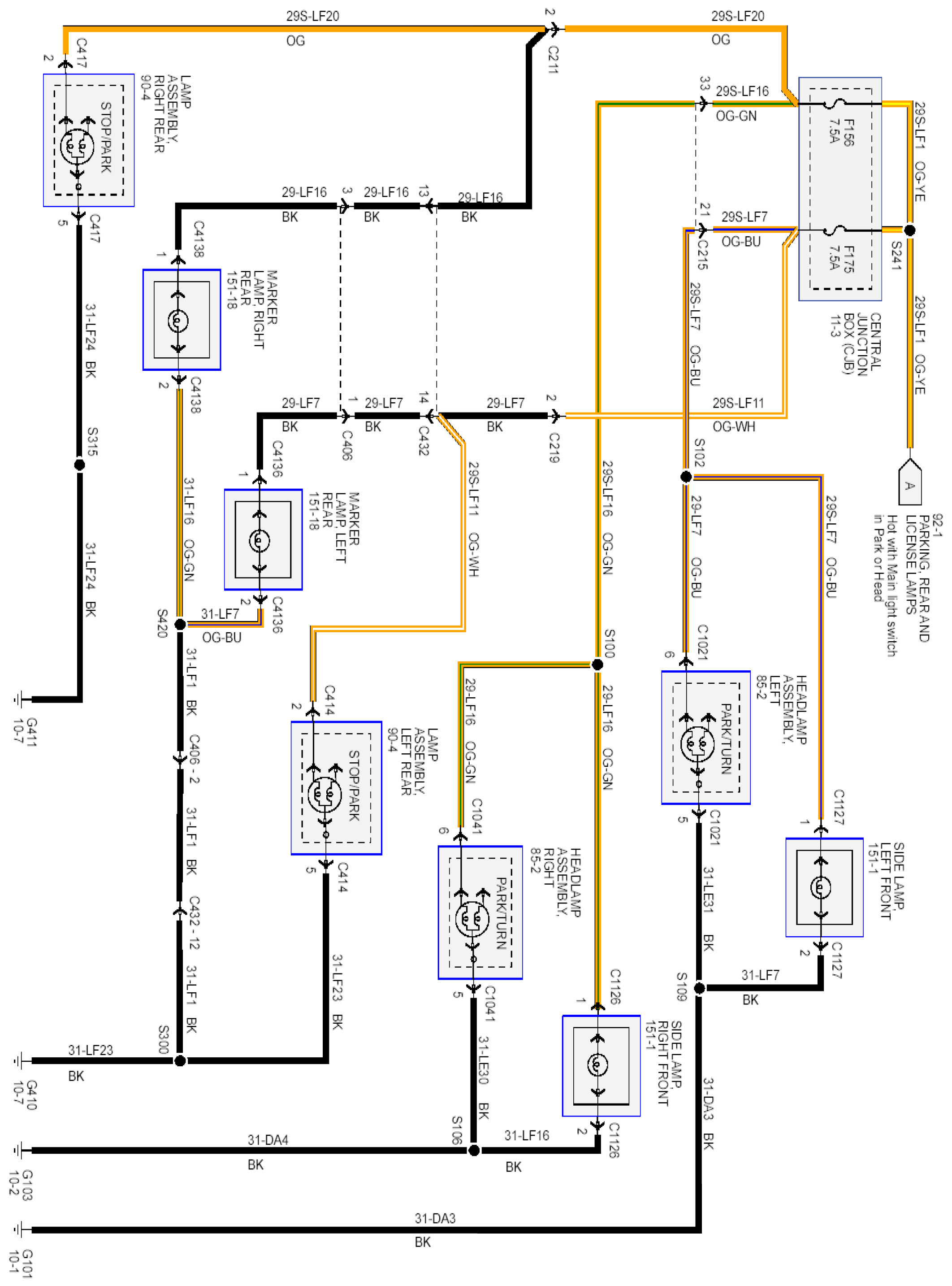

Diagram Set 92 (Parking, Rear and License Lamps)
