Home >> Ford >> 2012 >> Transit Connect L4-2.0L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Sensors and Switches - Accessories and Optional Equipment >> Remote Switch >> Diagrams

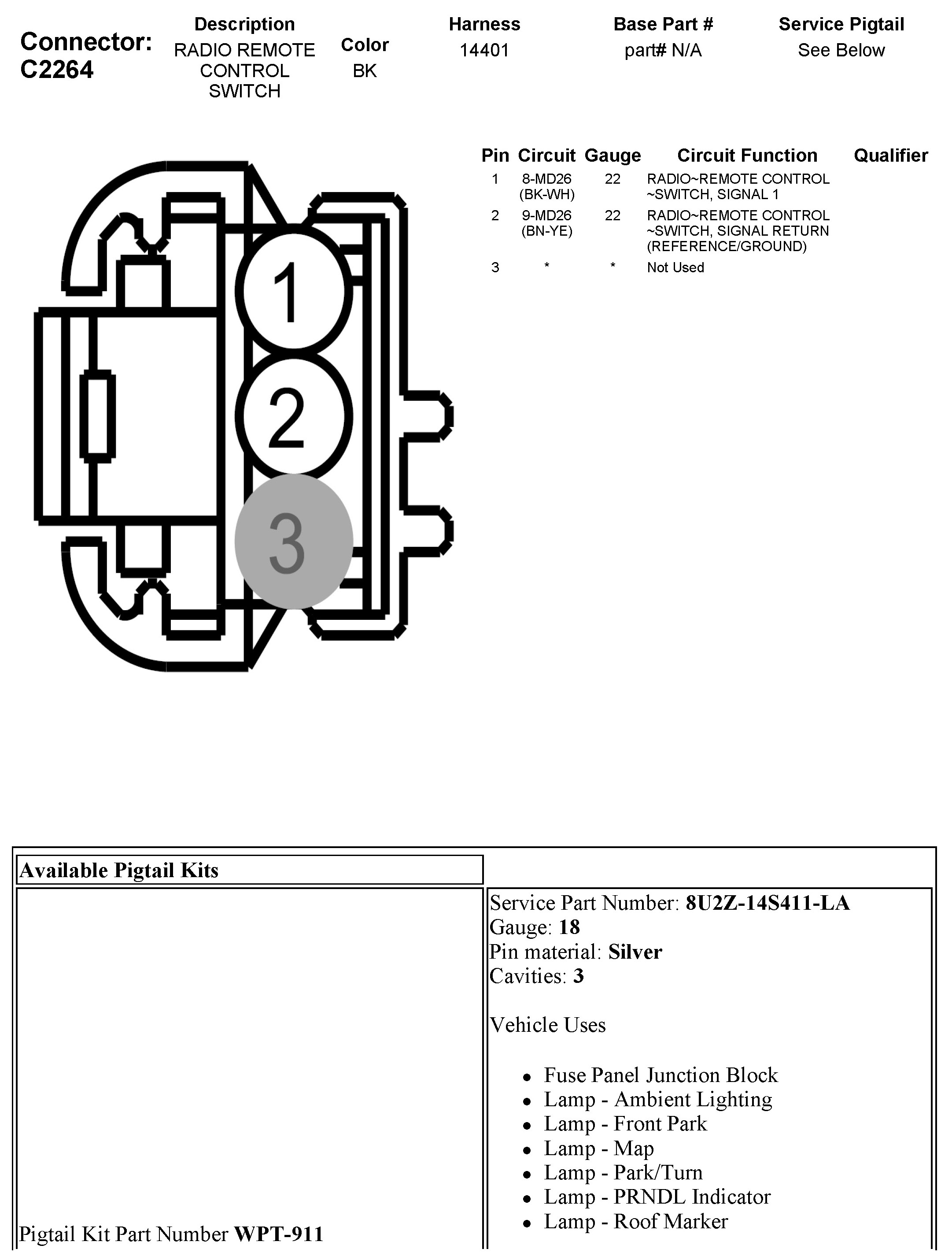

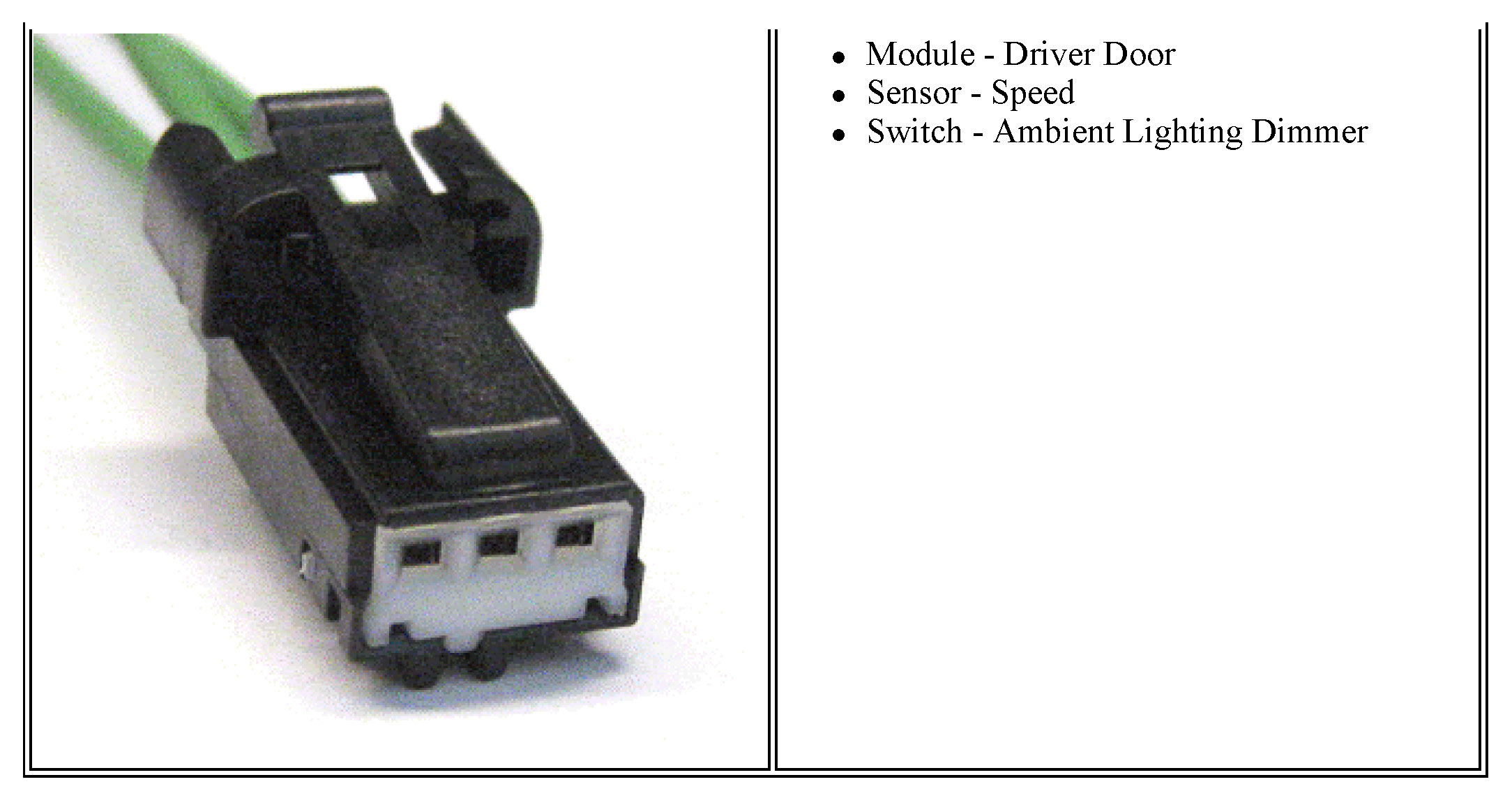

Remote Switch: Diagrams
