Windshield Glass: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS CHART
| Air Caulking Gun AST405 or equivalent |
|
| Deluxe Windshield Removal Tool 164-R2450 or equivalent |
|
| The Pumper 164-R2459 or equivalent |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Dow Urethane Adhesive Betaseal™ Express |
- |
| Dow Urethane One Step Glass Primer Betaprime™ 5500 / 5500A / 5500SA |
- |
| Sika Urethane Adhesive Sika Tack ASAP |
- |
| Sika Urethane Metal and Glass Primer Sika 206 G+P |
- |
| Motorcraft® Ultra-Clear Spray Glass Cleaner ZC-23 |
ESR-M14P5-A |

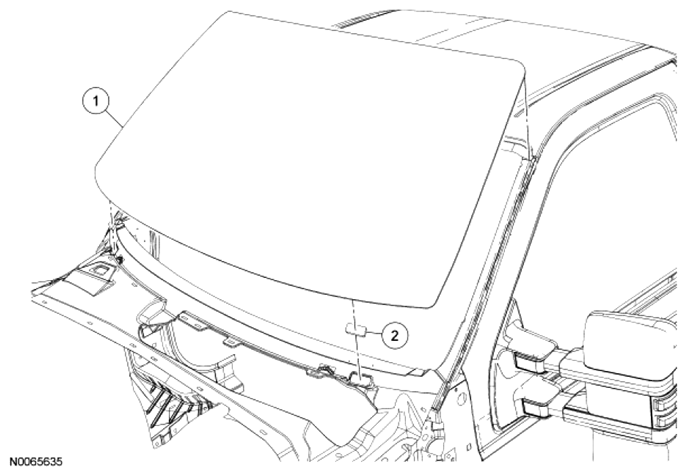

| Item | Part Number | Description |
|---|---|---|
| 1 | 03100 | Windshield |
| 2 | - | Windshield glass stop block (2 required) |
