Removal and Installation

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front door trim panel and watershield. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
Remove the exterior mirror. For additional information, refer to REAR VIEW MIRRORS .
Temporarily install the window switch or the window crank and lower the window to access the glass clamp nuts and remove the nuts.
- To install, tighten to 13 Nm (115 lb-in).
Remove the inner and outer belt line weatherstrips.

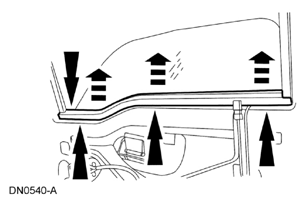

Fig 1: Removing Inner And Outer Belt Line Weatherstrips
Courtesy of FORD MOTOR CO.
Loosen the glass run bolt.
- To install, tighten to 13 Nm (115 lb-in).

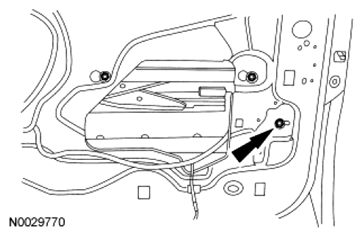

  Fig 2: Locating Glass Run Bolt
  Courtesy of FORD MOTOR CO.
Remove the front door window glass from the channel by sliding the channel rearward, then position the door glass in the bottom of the door.
Remove the window glass from the inner door by tilting the window glass forward and lifting the glass out of the door.

NOTE: Make sure the door glass is seated in the glass run channel and the rear glass run bolt is positioned all the way forward prior to tightening the rear glass run bolt.

To install, reverse the removal procedure.
