Engine - Upper End
WARNING: This page is about a different car, the 2012 Ford F550 Super Duty and 2012 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

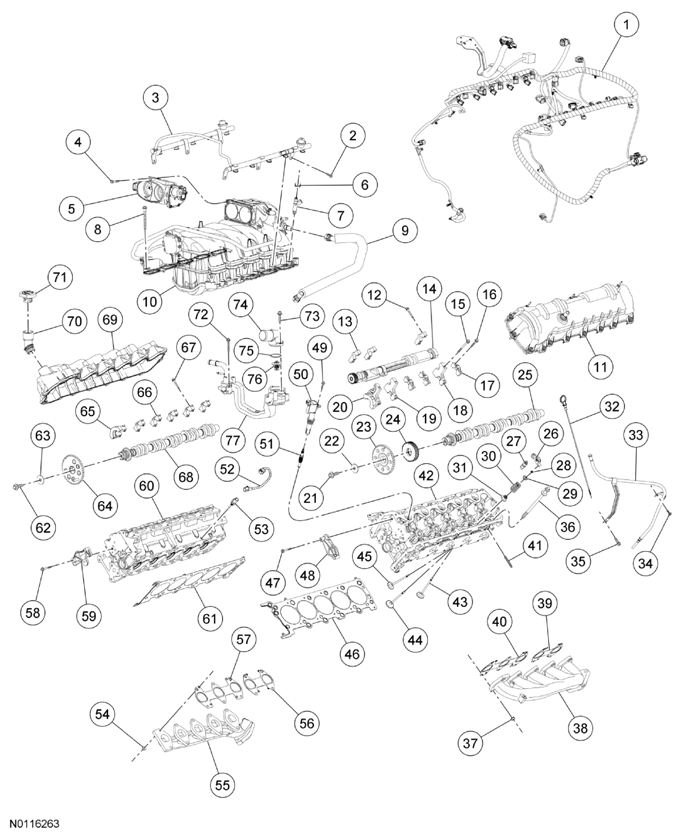

| Item | Part Number | Description |
|---|---|---|
| 1 | 12B637 | Engine wiring harness |
| 2 | W710700 | Fuel rail bolt (6 required) |
| 3 | 9F792 | Fuel rail |
| 4 | W500215 | Throttle Body (TB) bolt (4 required) |
| 5 | 9E926 | TB |
| 6 | 9C995 | Fuel injector-to-fuel rail locking clip (10 required) |
| 7 | 9F593 | Fuel injector (10 required) |
| 8 | W710758 | Intake manifold bolt (12 required) |
| 9 | 6A664 | PCV tube |
| 10 | 9424 | Intake manifold |
| 11 | 6582 | Valve cover - LH |
| 12 | W708027 | Balance shaft bearing cap bolt (6 required) |
| 13 | 6C267 | Balance shaft bearing cap (3 required) |
| 14 | 6A311 | Balance shaft |
| 15 | W708028 | Camshaft balance shaft bearing cap bolt - LH (3 required) |
| 16 | N807352 | Camshaft bearing cap bolt - LH (9 required) |
| 17 | 6B280 | Camshaft bearing cap - LH (3 required) |
| 18 | 9C269 | Camshaft bearing cap - LH |
| 19 | 6C266 | Camshaft bearing cap - LH |
| 20 | 6C272 | Camshaft front bearing cap - LH |
| 21 | W710926 | Camshaft sprocket bolt - LH |
| 22 | 6278 | Camshaft sprocket washer - LH |
| 23 | 6256 | Camshaft sprocket - LH |
| 24 | 6A303 | Balance shaft drive gear |
| 25 | 6250 | Camshaft - LH |
| 26 | 6564 | Roller follower (30 required) |
| 27 | 6500 | Hydraulic lash adjuster (30 required) |
| 28 | 6518 | Valve spring retainer key (60 required) |
| 29 | 6514 | Valve spring retainer (30 required) |
| 30 | 6513 | Valve spring (30 required) |
| 31 | 6571 | Valve stem seal (30 required) |
| 32 | 6750 | Oil level indicator |
| 33 | 6754 | Oil level indicator tube |
| 34 | N605892 | Oil level indicator tube bolt |
| 35 | W500224 | Oil level indicator tube bolt |
| 36 | 6065 | Cylinder head bolt (24 required) |
| 37 | W701706 | Exhaust manifold nut (10 required) |
| 38 | 9430 | Exhaust manifold - LH |
| 39 | 9448 | Exhaust manifold gasket - LH |
| 40 | 9448 | Exhaust manifold gasket - LH |
| 41 | W703902 | Exhaust manifold stud (20 required) |
| 42 | 6049 | Cylinder head - LH |
| 43 | 6507 | Intake valve (10 required) |
| 44 | 6505 | Exhaust valve (10 required) |
| 45 | 6507 | Intake valve (10 required) |
| 46 | 6051 | Cylinder head gasket - LH |
| 47 | W503282 | Engine oil accessory cover bolts - LH (2 required) |
| 48 | 6N881 | Engine oil accessory cover - LH |
| 49 | W711062 | Ignition coil bolt (10 required) |
| 50 | 12029 | Ignition coil (10 required) |
| 51 | 12405 | Spark plug (10 required) |
| 52 | 14A411 | Cylinder Head Temperature (CHT) sensor jumper harness |
| 53 | 6G004 | CHT sensor |
| 54 | W701706 | Exhaust manifold nut (10 required) |
| 55 | 9430 | Exhaust manifold - RH |
| 56 | 9448 | Exhaust manifold gasket - RH |
| 57 | 9448 | Exhaust manifold gasket - RH |
| 58 | W503282 | Engine oil accessory cover bolt - RH (2 required) |
| 59 | 6N881 | Engine oil accessory cover - RH |
| 60 | 6049 | Cylinder head - RH |
| 61 | 6051 | Cylinder head gasket - RH |
| 62 | W710926 | Camshaft sprocket bolt - RH |
| 63 | 6278 | Camshaft sprocket washer - RH |
| 64 | 6256 | Camshaft sprocket - RH |
| 65 | 6254 | Camshaft front bearing cap - RH |
| 66 | 6B280 | Camshaft bearing cap - RH (5 required) |
| 67 | N807352 | Camshaft bearing cap bolt - RH (12 required) |
| 68 | 6250 | Camshaft - RH |
| 69 | 6582 | Valve cover - RH |
| 70 | 6763 | Oil fill adapter |
| 71 | 6766 | Oil fill adapter cap |
| 72 | W503282 | Coolant crossover manifold assembly bolt (3 required) |
| 73 | W503279 | Thermostat housing bolt (2 required) |
| 74 | 8592 | Thermostat housing |
| 75 | 8255 | Thermostat O-ring seal |
| 76 | 8575 | Thermostat |
| 77 | 8C368 | Coolant crossover manifold assembly |
