Coolant Crossover and Intake Manifold: Notes
WARNING: This page is about a different car, the 2012 Ford F550 Super Duty and 2012 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

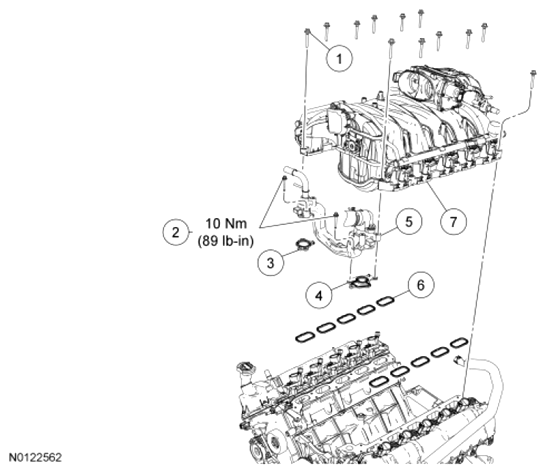

| Item | Part Number | Description |
|---|---|---|
| 1 | W710758 | Intake manifold bolt (12 required) |
| 2 | W503282 | Engine coolant crossover assembly bolts (3 required) |
| 3 | 8C387 | RH engine coolant crossover assembly gasket |
| 4 | 8C388 | LH engine coolant crossover assembly gasket |
| 5 | 8C369 | Engine coolant crossover assembly |
| 6 | 9439 | Intake manifold gaskets (10 required) |
| 7 | 9424 | Intake manifold assembly |
