Cylinder Head: Notes
WARNING: This page is about a different car, the 2012 Ford F550 Super Duty and 2012 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS CHART
| Compressor, Valve Spring 303-1039 |
|
| Installer, Valve Stem Oil Seal 303-383 (T91T-6571-A) |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil (Canada) XO-5W20-QSP (US); CXO-5W20-LSP12 (Canada) |
WSS-M2C945-A |

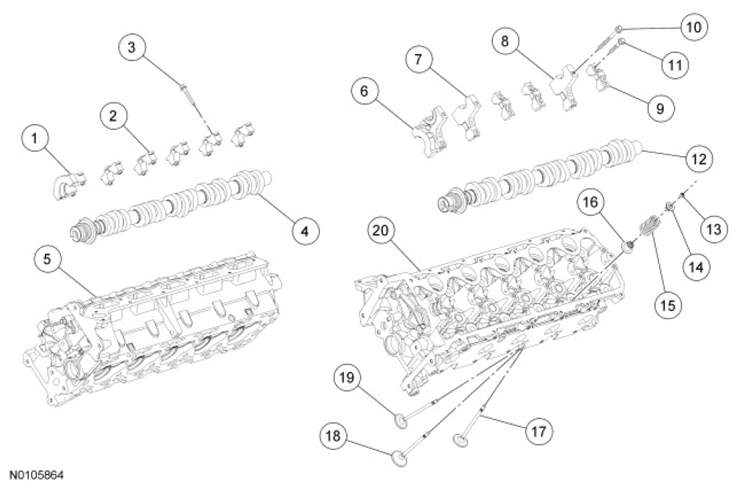

| Item | Part Number | Description |
|---|---|---|
| 1 | 6B284 | RH front camshaft bearing cap |
| 2 | 6B280 | RH camshaft bearing cap (5 required) |
| 3 | N807352 | RH camshaft bearing cap bolt (12 required) |
| 4 | 6251 | RH camshaft |
| 5 | 6049 | RH cylinder head |
| 6 | 6C272 | LH camshaft front bearing cap |
| 7 | 6C266 | LH camshaft bearing cap |
| 8 | 6C266 | LH camshaft bearing cap |
| 9 | 6B280 | LH camshaft bearing cap (3 required) |
| 10 | N807352 | LH camshaft bearing cap bolt (9 required) |
| 11 | W708028 | LH camshaft balance shaft bearing cab bolt (3 required) |
| 12 | 6C255 | LH camshaft |
| 13 | 6518 | Valve spring retainer key (60 required) |
| 14 | 6514 | Valve spring retainer (30 required) |
| 15 | 6513 | Valve spring (30 required) |
| 16 | 6A517 | Valve seal (30 required) |
| 17 | 6507 | Intake valve (10 required) |
| 18 | 6505 | Exhaust valve (10 required) |
| 19 | 6507 | Intake valve (10 required) |
| 20 | 6050 | LH cylinder head |
