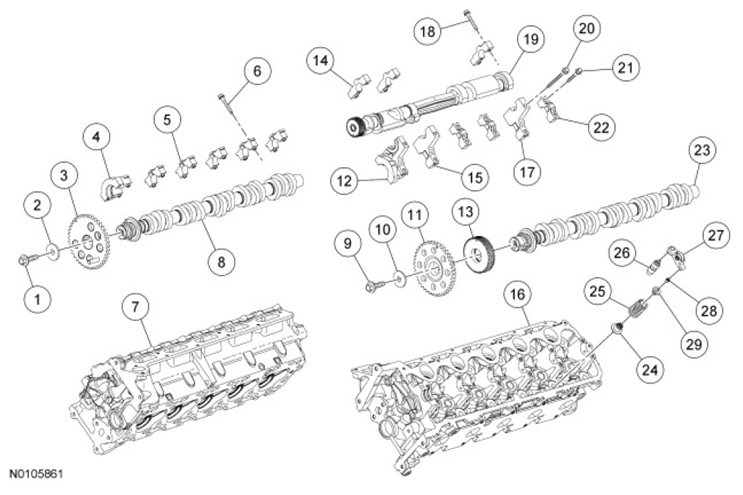

Valve Train Components - Exploded View
WARNING: This page is about a different car, the 2012 Ford F550 Super Duty and 2012 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W701926 | RH camshaft sprocket bolt |
| 2 | N806164 | RH camshaft sprocket washer |
| 3 | 6254 | RH camshaft sprocket |
| 4 | 6B284 | RH front camshaft bearing cap |
| 5 | 6B280 | RH camshaft bearing cap (5 required) |
| 6 | N807352 | RH camshaft bearing cap bolt (12 required) |
| 7 | 6049 | RH cylinder head |
| 8 | 6251 | RH camshaft |
| 9 | W710926 | LH camshaft sprocket bolt |
| 10 | N806164 | LH camshaft sprocket washer |
| 11 | 6256 | LH camshaft sprocket |
| 12 | 6C272 | LH camshaft front bearing cap |
| 13 | 6A303 | Balance shaft drive gear |
| 14 | 6C267 | Balance shaft bearing cap (3 required) |
| 15 | 6C266 | LH camshaft bearing cap |
| 16 | 6050 | LH cylinder head |
| 17 | 6C266 | LH camshaft bearing cap |
| 18 | W708027 | Balance shaft bearing cap bolt (6 required) |
| 19 | 6A305 | Balance shaft |
| 20 | W708028 | LH camshaft bearing cap bolt (3 required) |
| 21 | N807352 | LH camshaft bearing cap bolt (9 required) |
| 22 | 6B280 | LH camshaft bearing cap (3 required) |
| 23 | 6C255 | LH camshaft |
| 24 | 6A517 | Valve seal (30 required) |
| 25 | 6513 | Valve spring (30 required) |
| 26 | 6C501 | Hydraulic lash adjuster (30 required) |
| 27 | 6529 | Camshaft roller follower (30 required) |
| 28 | 6518 | Valve spring retainer key (60 required) |
| 29 | 6514 | Valve spring retainer (30 required) |
- For additional information, refer to the appropriate procedures in the service information.
