Oil Level Indicator and Tube: Notes
WARNING: This page is about a different car, the 2012 Ford F550 Super Duty and 2012 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil (Canada) XO-5W20-QSP (US); CXO-5W20-LSP12 (Canada) |
WSS-M2C945-A |

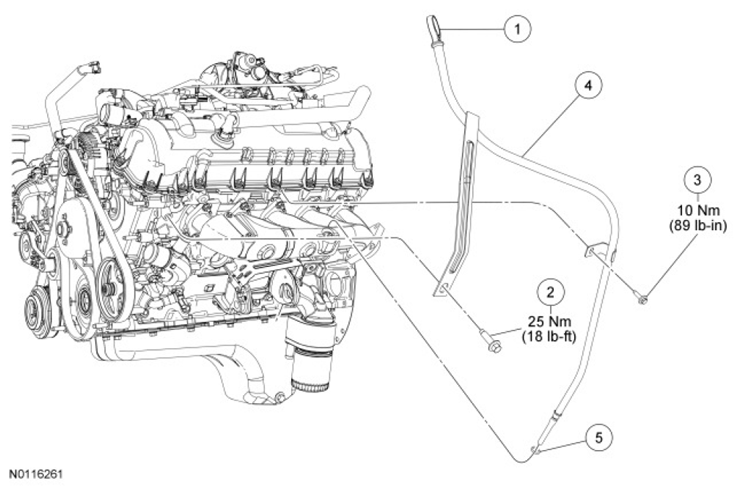

| Item | Part Number | Description |
|---|---|---|
| 1 | 6750 | Oil level indicator |
| 2 | W500224 | Oil level indicator and tube bolt - front |
| 3 | N605892 | Oil level indicator and tube bolt - rear |
| 4 | 6K873 | Oil level indicator and tube |
| 5 | - | Oil level indicator tube O-ring seal |
