Section 1874 (Automatic Transmission - 5R110W (TORQSHIFT(R)) -- F450 & F550 Super Duty): Removal: Transmission: Removal

WARNING: This page is about a different car, the 2012 Ford F550 Super Duty and 2012 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Disconnect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  3. Remove the exhaust Y-pipe. For additional information, refer to EXHAUST SYSTEM .

    Four-Wheel Drive (4WD) vehicles

  4. Remove the transfer case assembly. For additional information, refer to TRANSFER CASE .

    Vehicles equipped with 4WD and a manual shift transfer case

  5. Remove the transfer case linkage bolt and position the transfer case linkage aside.
    Fig 1: Locating Transfer Case Linkage Bolt
    G07482972Courtesy of FORD MOTOR CO.
  6. Remove the bolt and remove the transfer case linkage bracket.
    Fig 2: Locating Transfer Case Linkage Bracket Bolt
    G07482973Courtesy of FORD MOTOR CO.

    Rear Wheel Drive (RWD) vehicles

    7. NOTE: If a pry area is not available on the driveshaft side, it may be necessary to tap the driveshaft yoke with a plastic or rubber soft-faced hammer.
    NOTE: Index-mark the driveshaft flanges.
  7. Remove and discard the 4 driveshaft-to-transmission flange bolts. Disconnect the driveshaft from the transmission.
    • Using mechanic's wire, support the driveshaft.
      Fig 3: Locating Mark On Driveshaft Flange
      G06776490Courtesy of FORD MOTOR CO.

    All vehicles

    8. NOTE: If transmission disassembly is required, drain the transmission fluid.
    Fig 4: Locating Transmission Fluid Pan Drain Plug
    G06140605Courtesy of FORD MOTOR CO.
  8. Remove the transmission fluid pan drain plug and allow the transmission fluid to drain.
  9. Install the transmission fluid pan drain plug.
    • Tighten to 18 Nm (159 lb-in).
      Fig 5: Locating Transmission Fluid Pan Drain Plug
      G06140605Courtesy of FORD MOTOR CO.
    10. NOTE: Only use hand tools when loosening the engine support insulator nuts or damage to the engine support insulator may occur.
    NOTE: The RH engine support insulator studs may come out of the insulator while removing the nuts. Install new RH engine support insulator studs if the studs come out.
    Fig 6: Locating RH Engine Support Insulator Nuts
    G06772798Courtesy of FORD MOTOR CO.
  10. Remove and discard the 4 RH engine support insulator nuts.
    11. NOTE: Only use hand tools when loosening the engine support insulator nuts or damage to the engine support insulator may occur.
    Fig 7: Locating LH Engine Support Insulator Nuts
    G06772788Courtesy of FORD MOTOR CO.
  11. Remove and discard the 3 LH engine support insulator nuts.
    12. NOTE: The transmission insulator studs may come out of the insulator while removing the insulator-to-crossmember nuts. Install new transmission insulator studs if the studs come out.
  12. Remove the transmission support crossmember. For additional information, refer to FULL FRAME AND BODY MOUNTING .
  13. Remove and discard the transmission insulator bolts and remove the transmission insulator.
    Fig 8: Locating Transmission Insulator-To-Extension Housing Bolts
    G07482236Courtesy of FORD MOTOR CO.
    14. NOTE: To prevent selector lever cable damage, do not apply force to the selector lever cable assembly between the manual control lever and the selector lever cable bracket.
  14. Remove the selector lever cable.
    1. Disconnect the selector lever cable from the manual control lever.
    2. Remove the selector lever cable bracket bolts and position the selector lever cable and bracket aside.

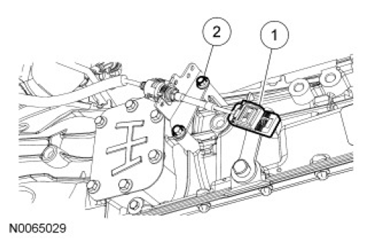

      Fig 9: Identifying Selector Lever Cable And Bracket Bolt
      G06775881Courtesy of FORD MOTOR CO.
  15. Disconnect the transmission vehicle harness connector.
    Fig 10: Locating Transmission Vehicle Harness Connector
    G06140624Courtesy of FORD MOTOR CO.
  16. Disconnect the Output Shaft Speed (OSS) sensor.
    Fig 11: Locating Output Shaft Speed (OSS) Sensor
    G06140648Courtesy of FORD MOTOR CO.
  17. Disconnect the Turbine Shaft Speed (TSS) /intermediate shaft speed sensor.
    Fig 12: Locating Turbine Shaft Speed (TSS) /Intermediate Shaft Speed Sensor
    G06140638Courtesy of FORD MOTOR CO.
    18. NOTE: RH shown in illustration, LH similar.
    Fig 13: Locating RH And LH Wire Harness
    G06140814Courtesy of FORD MOTOR CO.
  18. Disconnect the RH and LH wiring harness from the side of the transmission.
  19. Remove the flexplate inspection cover.
    1. Remove the flexplate inspection cover bolts.
    2. Remove the flexplate inspection cover.
      Fig 14: Identifying Flexplate Inspection Cover And Bolts
      G06775886Courtesy of FORD MOTOR CO.
  20. While holding the case fitting, remove the rear transmission fluid cooler tube.
    Fig 15: Locating Rear Transmission Fluid Cooler Tube
    G06140780Courtesy of FORD MOTOR CO.
  21. While holding the case fitting, remove the front transmission fluid cooler tube.
    Fig 16: Locating Transmission Fluid Cooler Tube
    G06140781Courtesy of FORD MOTOR CO.
  22. Remove the cylinder block opening cover to gain access to the torque converter-to-flexplate nuts.
    Fig 17: Locating Cylinder Block Opening Cover
    G06140794Courtesy of FORD MOTOR CO.
  23. Remove the starter motor. For additional information, refer to STARTING SYSTEM - GASOLINE ENGINES .
  24. Remove the steering damper-to-frame bolt and nut, and position the steering damper aside.
    Fig 18: Locating Steering Damper-To-Frame Bolt
    G06775891Courtesy of FORD MOTOR CO.
  25. Using a suitable tool, rotate the crankshaft pulley to gain access to the torque converter-to-flexplate nuts.
    Fig 19: Rotating Crankshaft Pulley
    G06775892Courtesy of FORD MOTOR CO.
  26. Remove and discard the 6 torque converter-to-flexplate nuts.
    Fig 20: Locating Torque Converter-To-Flexplate Nuts
    G06126499Courtesy of FORD MOTOR CO.
  27. Remove the 7 transmission-to-engine mounting bolts.
    Fig 21: Locating Transmission-To-Engine Mounting Bolts
    G06140799Courtesy of FORD MOTOR CO.
  28. Slide the transmission back enough to install the Torque Converter Retainer.
    Fig 22: Identifying Torque Converter Retainer
    G06140800Courtesy of FORD MOTOR CO.
  29. Carefully lower the transmission assembly.
  30. Remove and discard the transmission fluid filler tube O-ring.
    Fig 23: Locating Transmission Filler Tube O-Ring
    G06140618Courtesy of FORD MOTOR CO.
  31. If the transmission is being overhauled or if installing a new or remanufactured transmission, carry out the TRANSMISSION FLUID COOLER BACKFLUSHING AND CLEANING  procedure. For additional information, refer to TRANSMISSION FLUID COOLER BACKFLUSHING AND CLEANING.
  32. For vehicles equipped with a Power Take-Off (PTO) assembly, prior to installing the transmission, flush and clean the PTO assembly to remove any foreign material. Failure to remove foreign material from the PTO assembly may result in subsequent transmission concerns.
