Instrument Panel Cluster (IPC): Notes
NOTE:

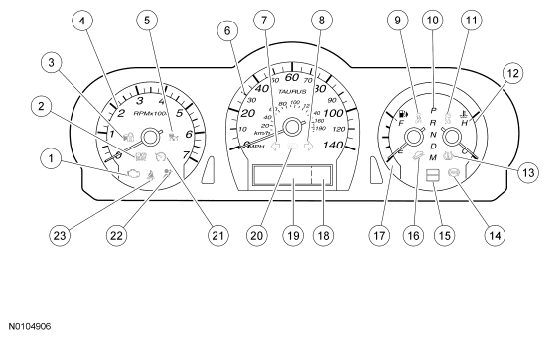

Select shift Instrument Panel Cluster (IPC) shown in illustration, non-select shift IPC similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Malfunction Indicator Lamp (MIL) |
| 2 | - | Brake warning indicator |
| 3 | - | Anti-theft indicator |
| 4 | - | Tachometer |
| 5 | - | Adaptive cruise control indicator |
| 6 | - | Speedometer |
| 7 | - | LH turn indicator |
| 8 | - | RH turn indicator |
| 9 | - | Traction control disabled indicator |
| 10 | - | PRNDL display (non-select shift) or PRNDM (select shift) |
| 11 | - | Traction control indicator |
| 12 | - | Temperature gauge |
| 13 | - | Tire Pressure Monitoring System (TPMS) warning indicator |
| 14 | - | ABS warning indicator |
| 15 | - | Select shift display area |
| 16 | - | Grade assist Indicator |
| 17 | - | Fuel gauge |
| 18 | - | Message center indicator display area |
| 19 | - | Message center display area |
| 20 | - | High beam indicator |
| 21 | - | Cruise control indicator |
| 22 | - | Air bag warning indicator |
| 23 | - | Safety belt warning indicator |
NOTE:
The Smart Junction Box (SJB) is also known as the Generic Electronic Module (GEM).
The Instrument Panel Cluster (IPC) contains gauges, informational indicators, warning indicators and a message center that are designed to provide the driver with system status and to alert the driver that certain conditions exist in the vehicle.
The IPC uses a 2-line display of basic informational items such as the odometer, trip odometer and for the message center display information.
All indicator lamps and warning indicator lamps are LEDs, which are not replaceable.
