Anti-Theft - Without Intelligent Access (IA)

Anti-Theft - Without Intelligent Access (IA)

DTC Charts

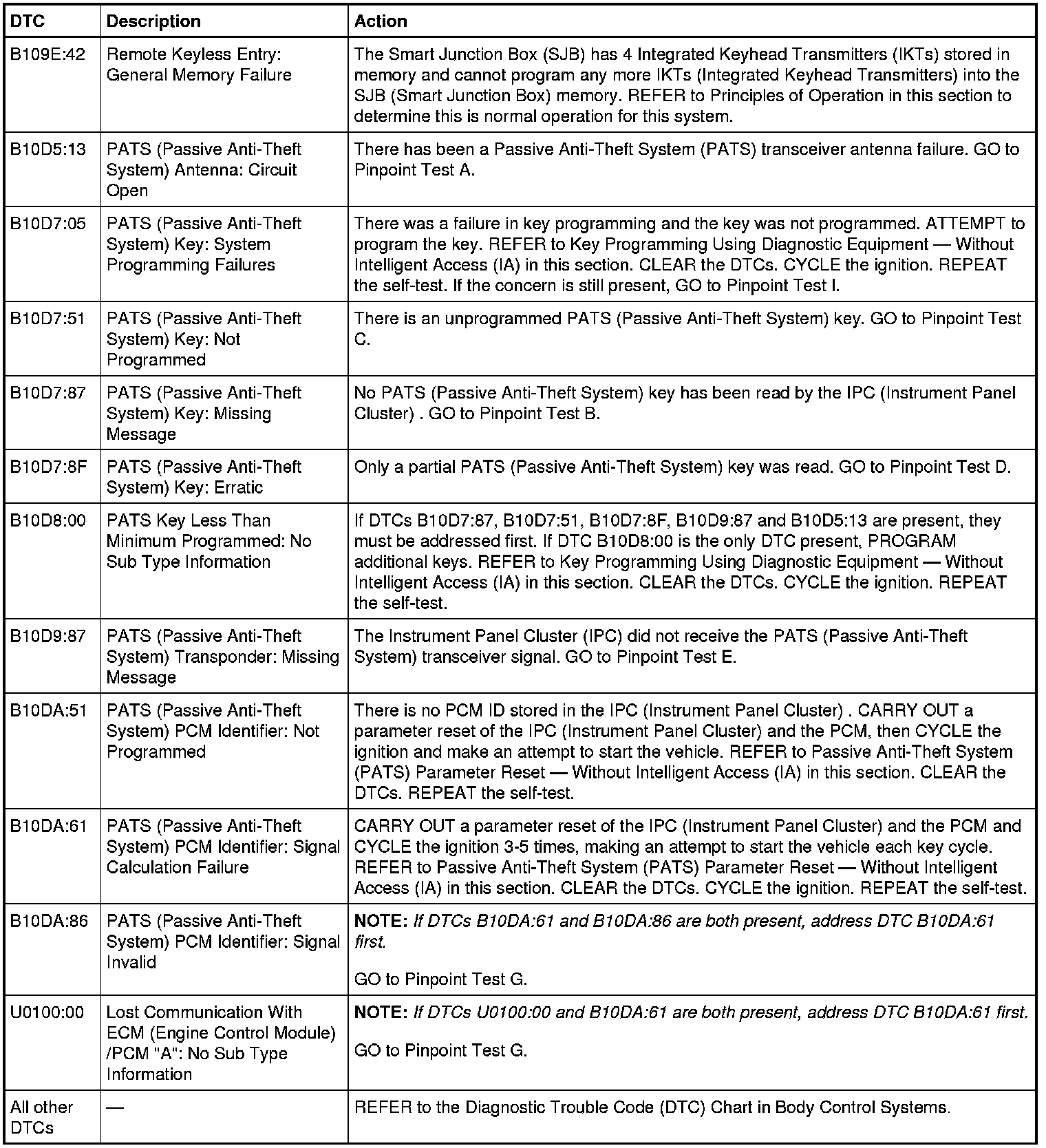

Instrument Panel Cluster (IPC) DTC Chart

NOTE: This module utilizes a 5-character DTC followed by a 2-character failure-type code. The failure-type code provides information about specific fault conditions such as opens, or shorts to ground. Continuous memory DTCs have an additional 2-character DTC status code suffix to assist in determining DTC history.

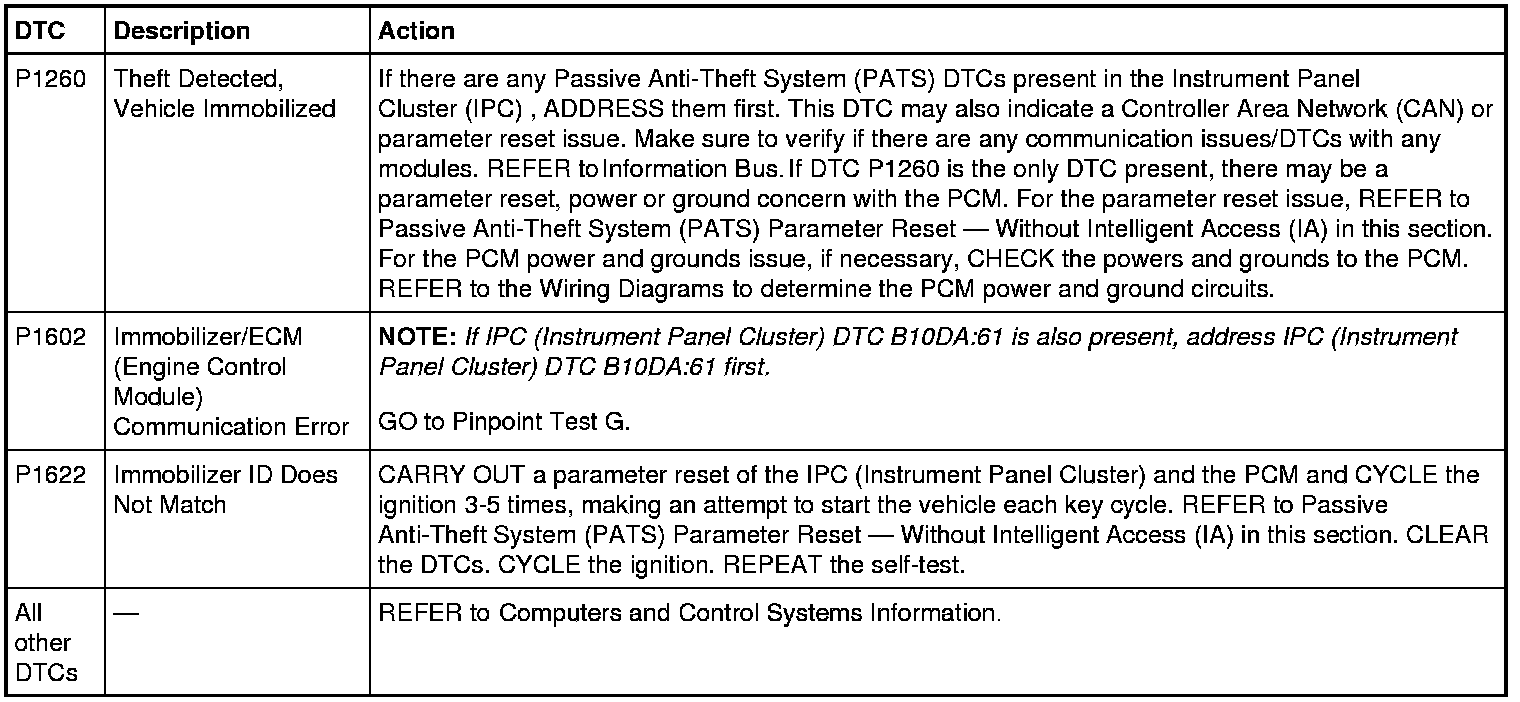

PCM DTC Chart
