Crankshaft Front Seal

Crankshaft Front Seal









Removal

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Remove the crankshaft pulley. For additional information, refer to Crankshaft Pulley Crankshaft Pulley.

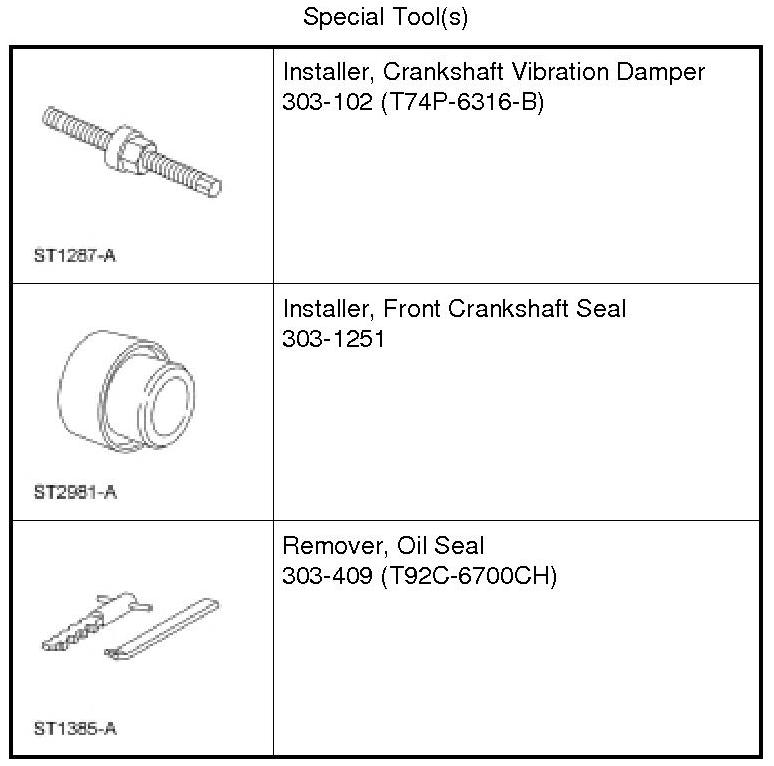

3. Using the Oil Seal Remover, remove and discard the crankshaft front seal.
- Clean all sealing surfaces with metal surface prep.






Installation

1. NOTE: Apply clean engine oil to the crankshaft front seal bore in the engine front cover.
Using the Front Crankshaft Seal Installer and Crankshaft Vibration Damper Installer, install a new crankshaft front seal.






2. Install the crankshaft pulley. For additional information, refer to Crankshaft Pulley Crankshaft Pulley.
