Camshaft Runout

Camshaft Runout





NOTE: Refer to the Engine system level for the specification.

1. NOTE: Camshaft journals must be within specifications before checking runout.

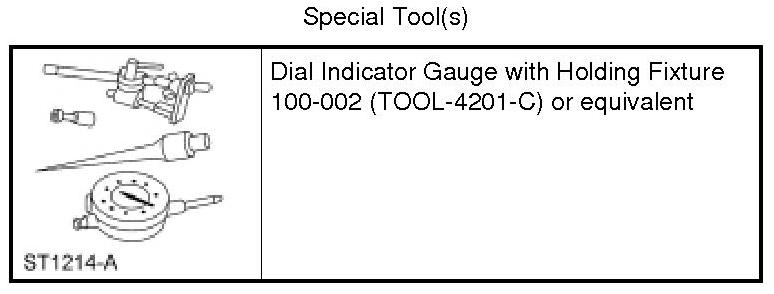

Using the Dial Indicator Gauge with Holding Fixture, measure the camshaft runout.

- Camshaft must be supported on the first and last camshaft bearing journal.

- Rotate the camshaft and subtract the lowest Dial Indicator Gauge reading from the highest Dial Indicator Gauge reading.
