Camshaft Lobe Lift




Camshaft Lobe Lift





NOTE: Refer to the Engine system level for the specification.

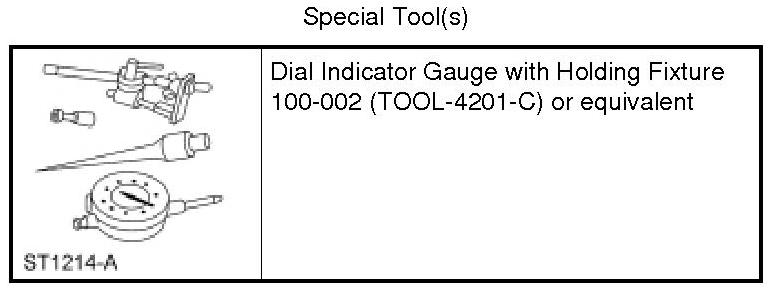

1. Use the Dial Indicator Gauge with Holding Fixture to measure camshaft intake/exhaust lobe lift.
- Rotate the camshaft and subtract the lowest Dial Indicator Gauge reading from the highest Dial Indicator Gauge reading to figure the camshaft lobe lift.
