Home
>>
Ford
>>
2012
>>
Taurus AWD V6-3.5L Turbo
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Body and Frame
>>
Power Seat Switch
>>
Diagrams
>>

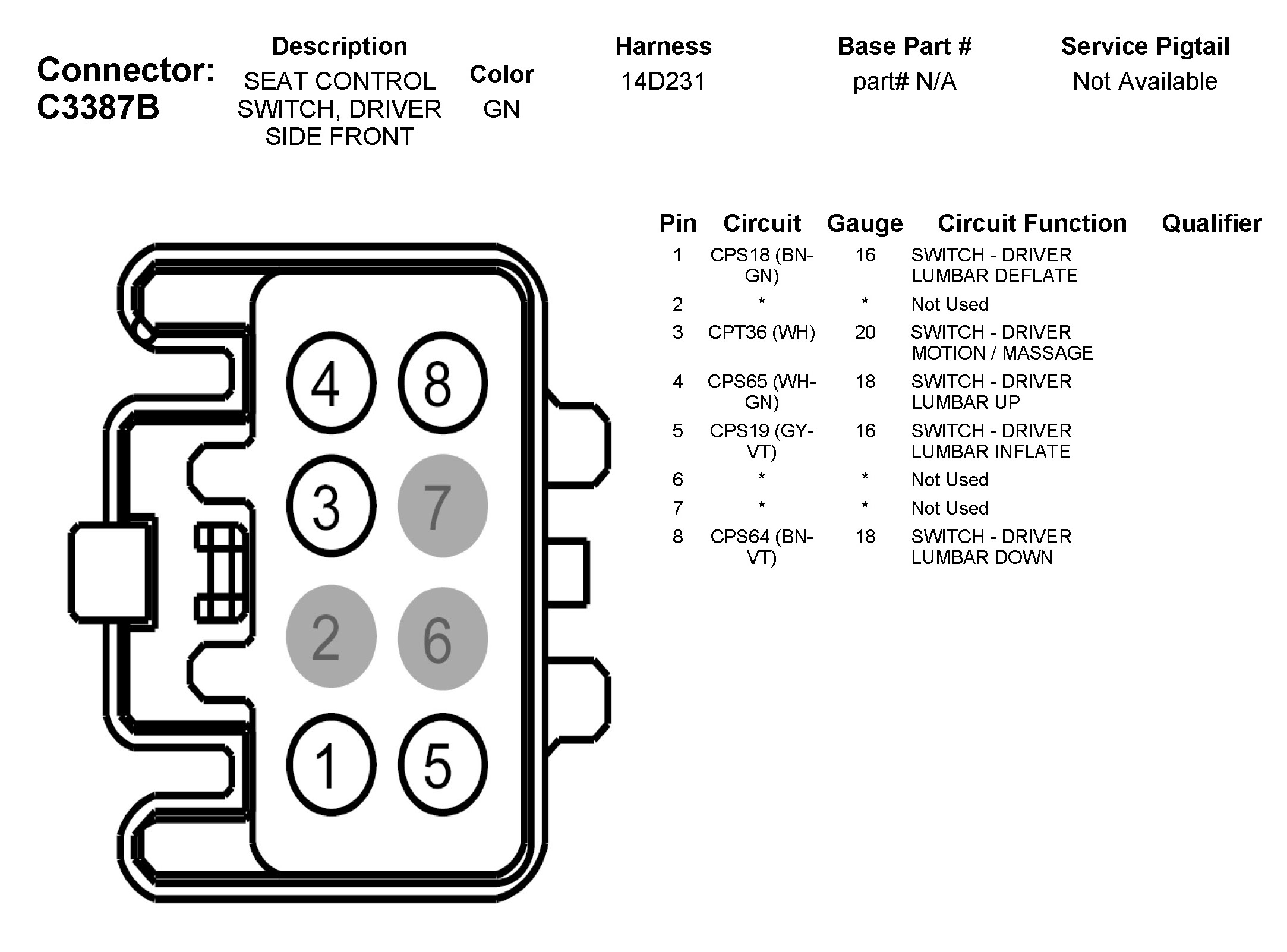

C3387B Seat Control Switch, Driver Side Front
C3387B Seat Control Switch, Driver Side Front
