Transmission Speed Sensor: Service and Repair

Output Shaft Speed (OSS) Sensor









Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.

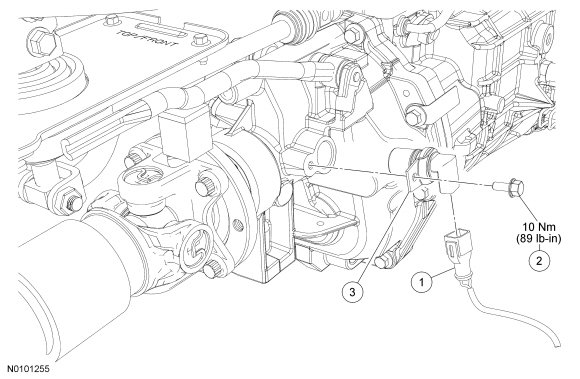

2. Disconnect the Output Shaft Speed (OSS) electrical connector.

3. Remove the OSS (Output Shaft Speed) sensor bolt, then remove the OSS (Output Shaft Speed) sensor.
- To install, tighten to 10 Nm (89 lb-in).


4. To install, reverse the removal procedure.
