Home >> Ford >> 2012 >> Mustang V8-5.4L SC >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Seat Switch >> Diagrams >> C3190 Seat Control Switch, Passenger Side Front

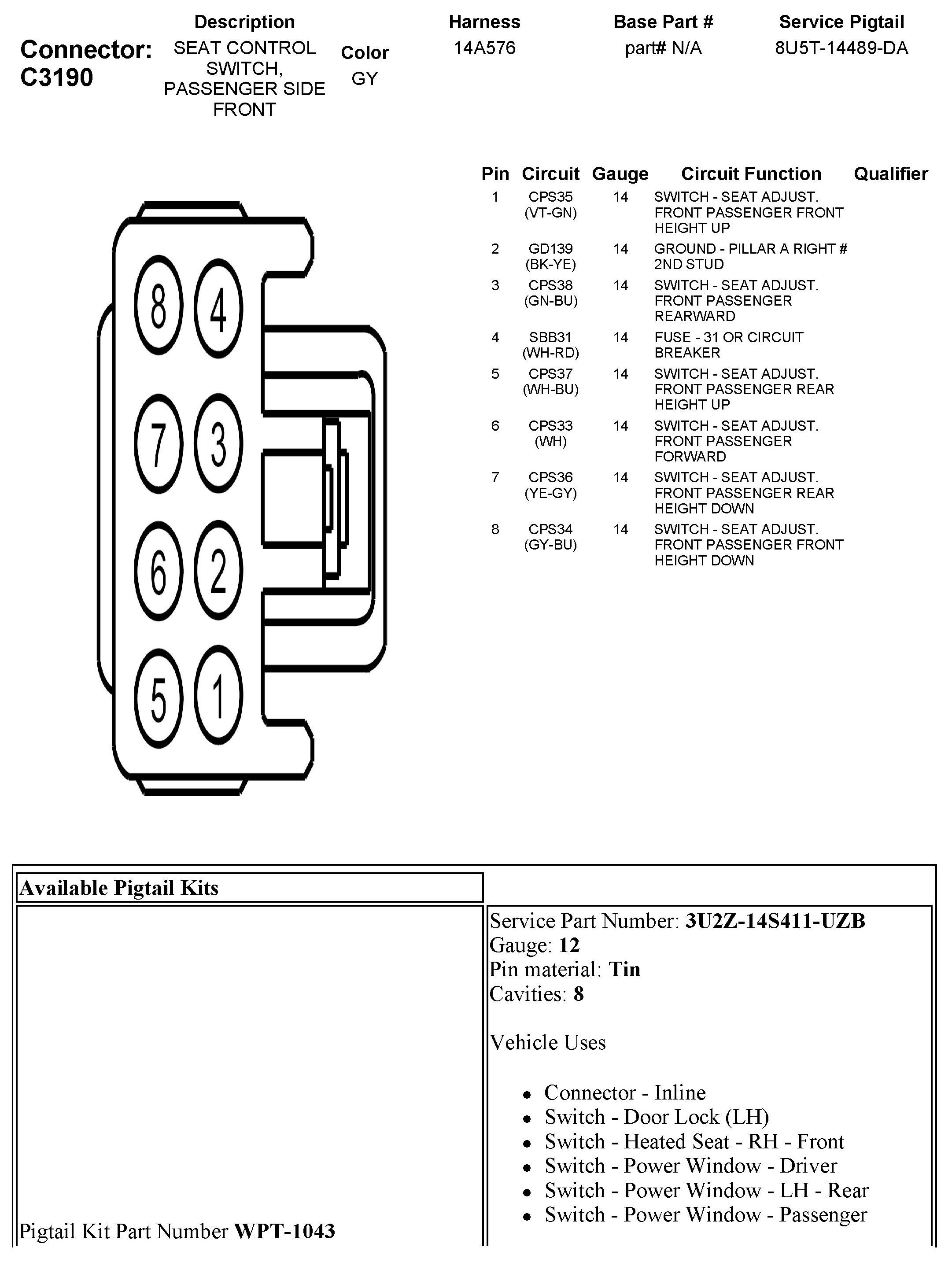

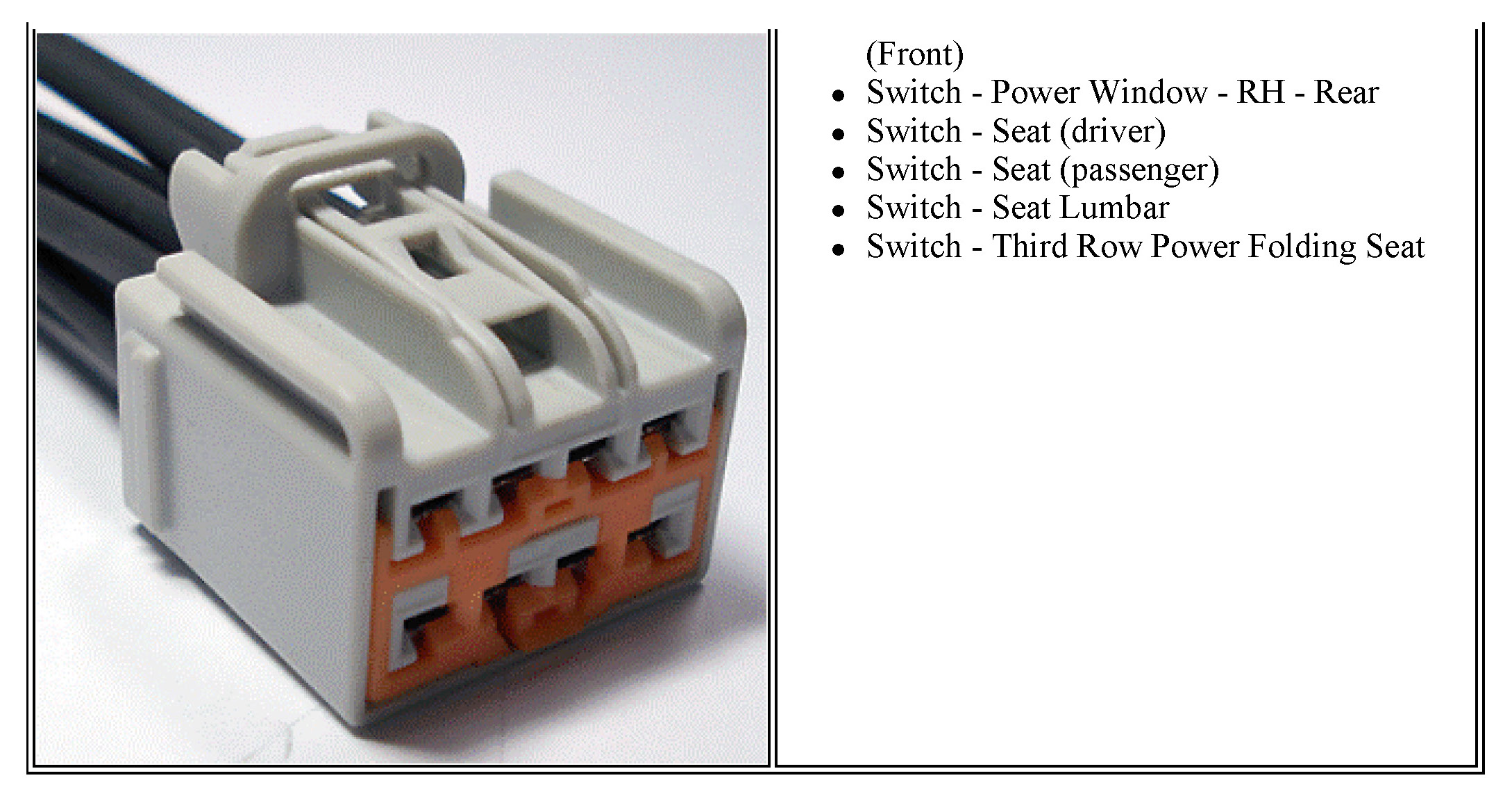

C3190 Seat Control Switch, Passenger Side Front
