Supercharger Coolant Pump: Service and Repair

Coolant Pump









Removal and Installation

1. Drain the Supercharger (SC) cooling system. For additional information, refer to Supercharger Cooling System Draining, Filling and Bleeding Supercharger Cooling System Draining, Filling and Bleeding.

2. Remove the front bumper cover.

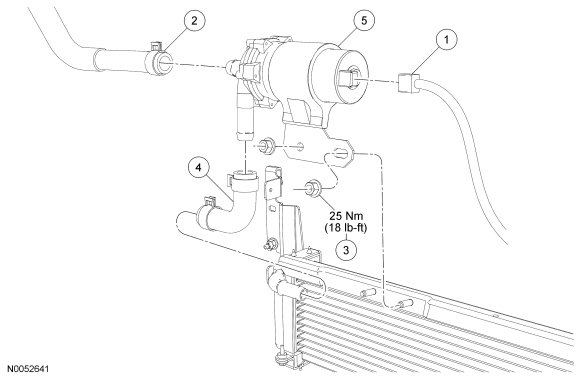

3. Disconnect the coolant pump electrical connector.

4. Disconnect the coolant pump-to-degas bottle hose from the coolant pump and position aside.

5. Disconnect the coolant pump-to-radiator hose from the radiator.

6. Remove the 2 coolant pump nuts and the coolant pump.
- To install, tighten to 25 Nm (18 lb-ft).


7. To install, reverse the removal procedure.

8. Fill and bleed the SC (Supercharger) cooling system. For additional information, refer to Supercharger Cooling System Draining, Filling and Bleeding Supercharger Cooling System Draining, Filling and Bleeding.
