Crankshaft Rear Seal

Crankshaft Rear Seal









Removal

1. Remove the flywheel. For additional information, refer to Flywheel Removal and Replacement.

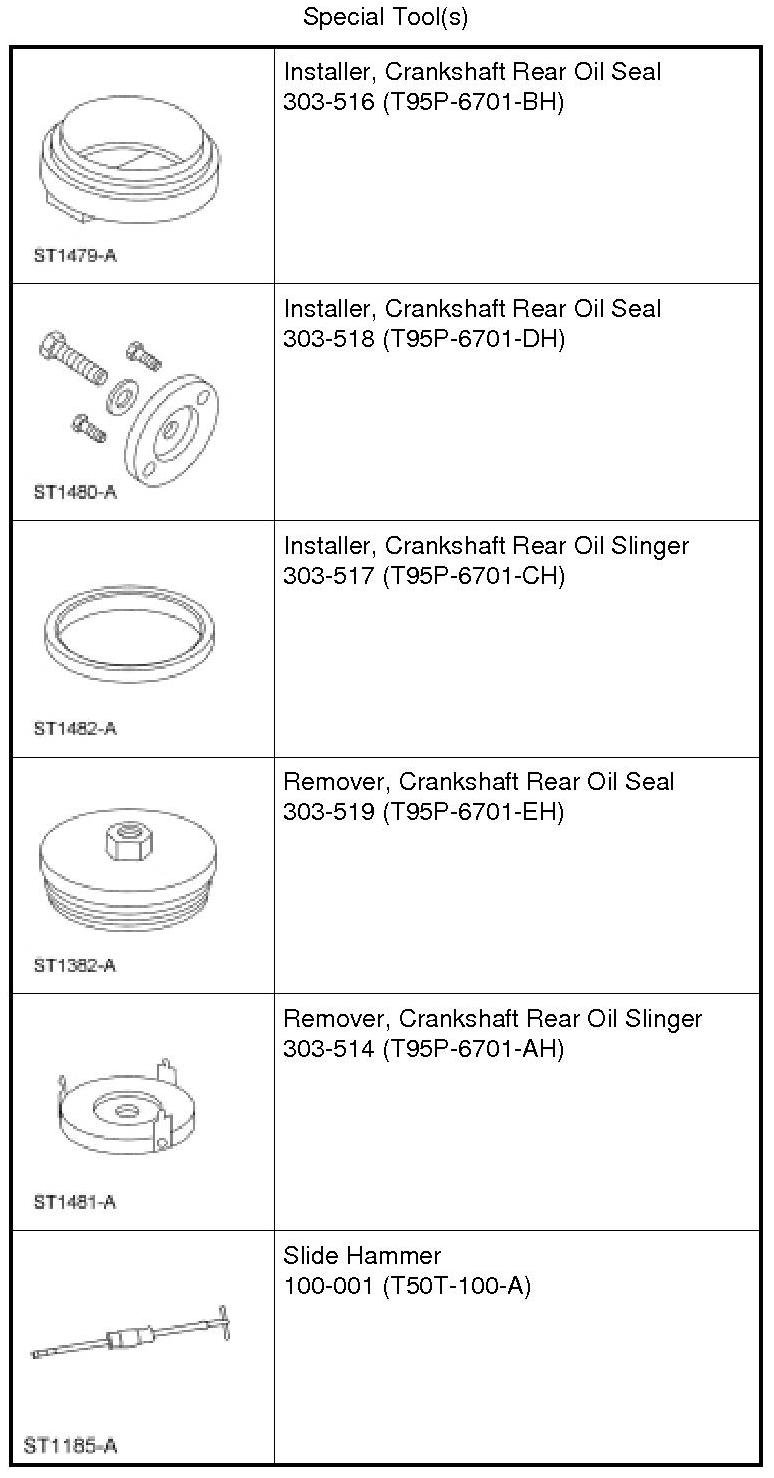

2. Using the Slide Hammer and the Crankshaft Rear Oil Slinger Remover, remove the crankshaft rear seal oil slinger.





3. Using the Slide Hammer and the Crankshaft Rear Oil Seal Remover, remove the crankshaft rear seal.





Installation

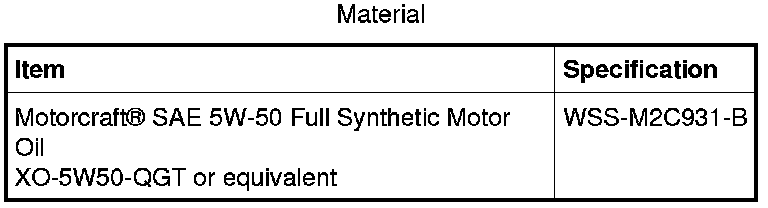

1. NOTE: Lubricate the inner lip of the crankshaft rear seal with clean engine oil.
Using the Crankshaft Rear Oil Seal Installers, install the crankshaft rear seal.






2. Using the Crankshaft Rear Oil Slinger Installer, install the crankshaft rear oil slinger.





3. Install the flywheel. For additional information, refer to Flywheel Removal and Replacement.
