Home >> Ford >> 2012 >> Mustang V8-5.4L SC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 85 (Headlamps/Autolamps)

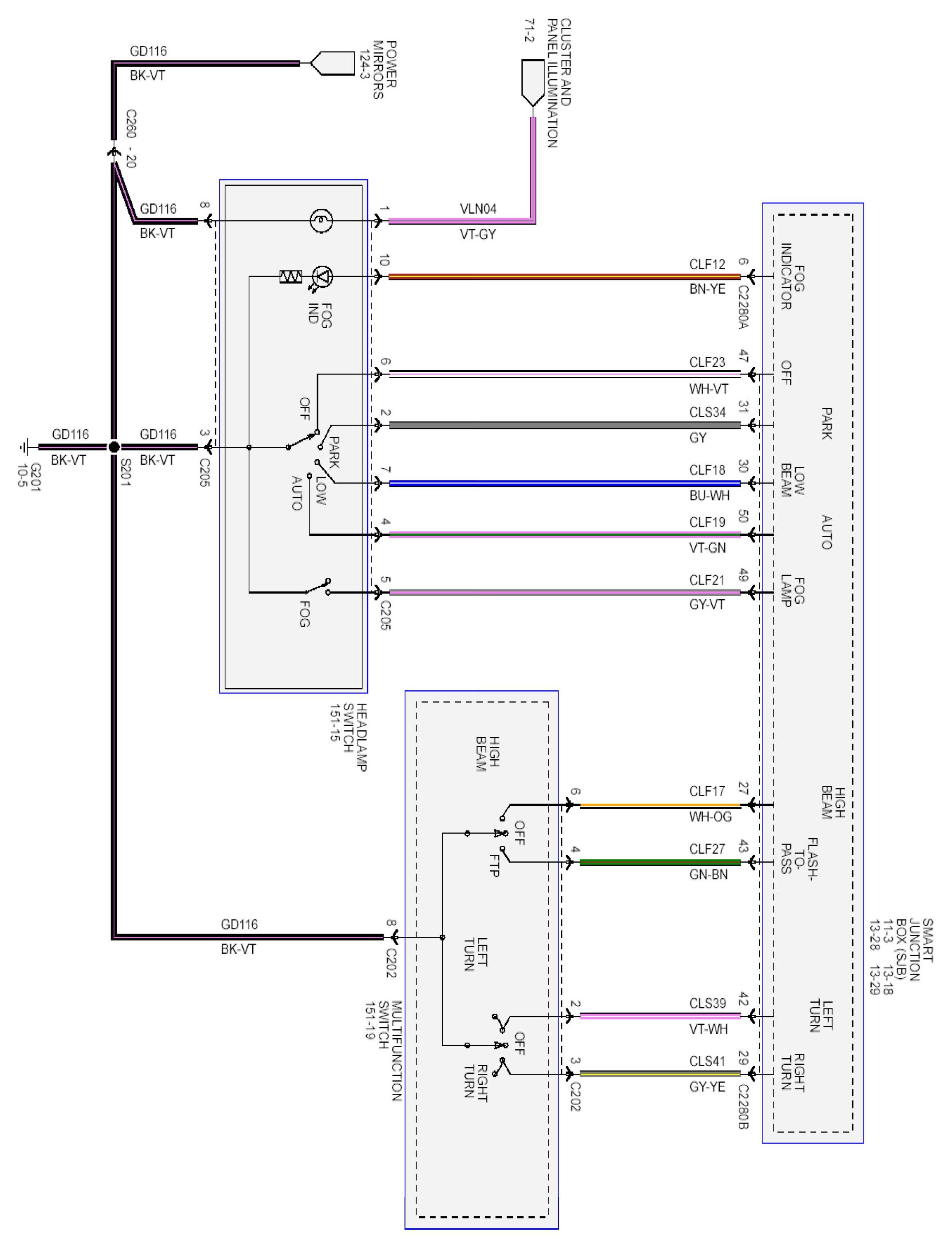

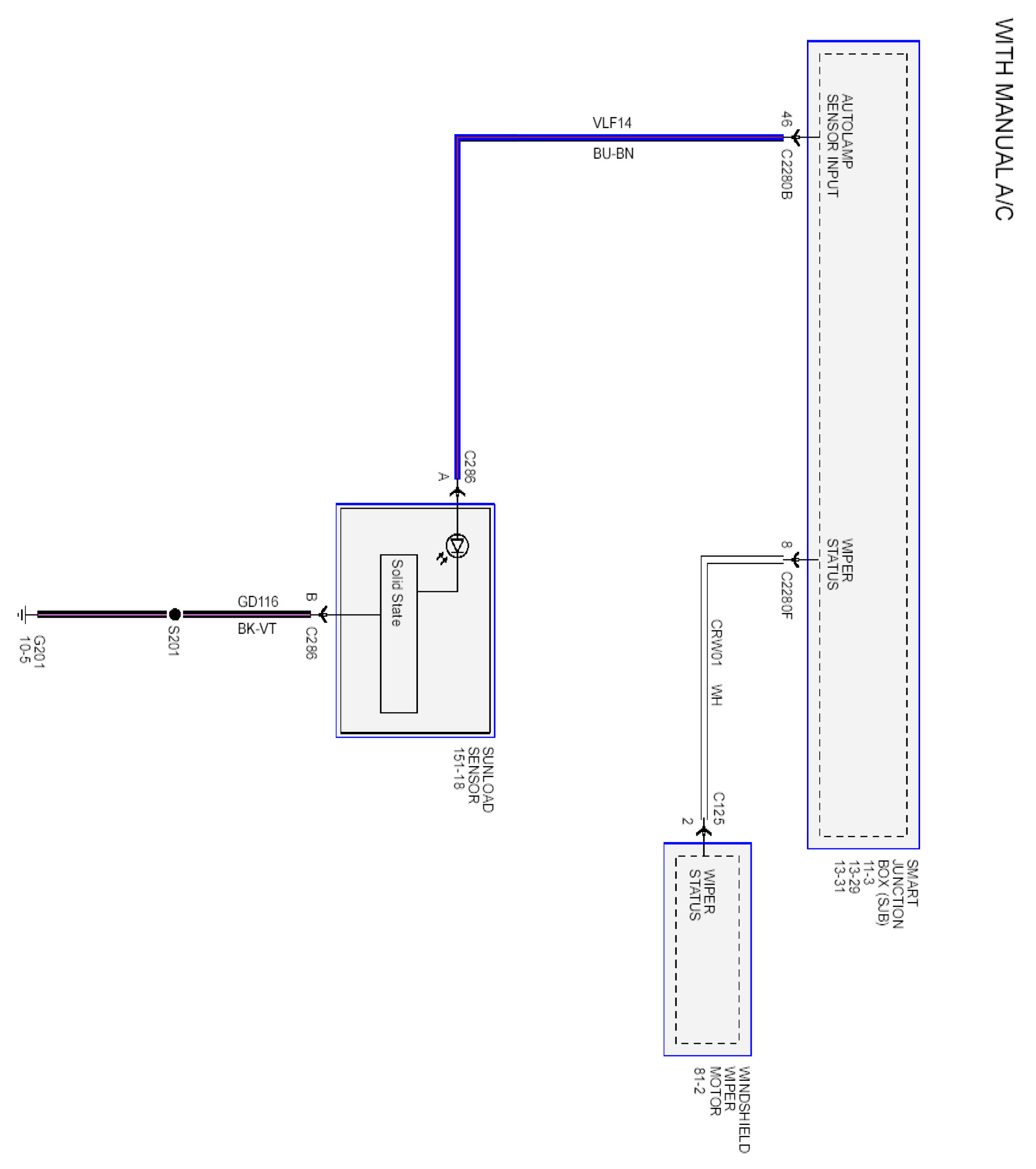

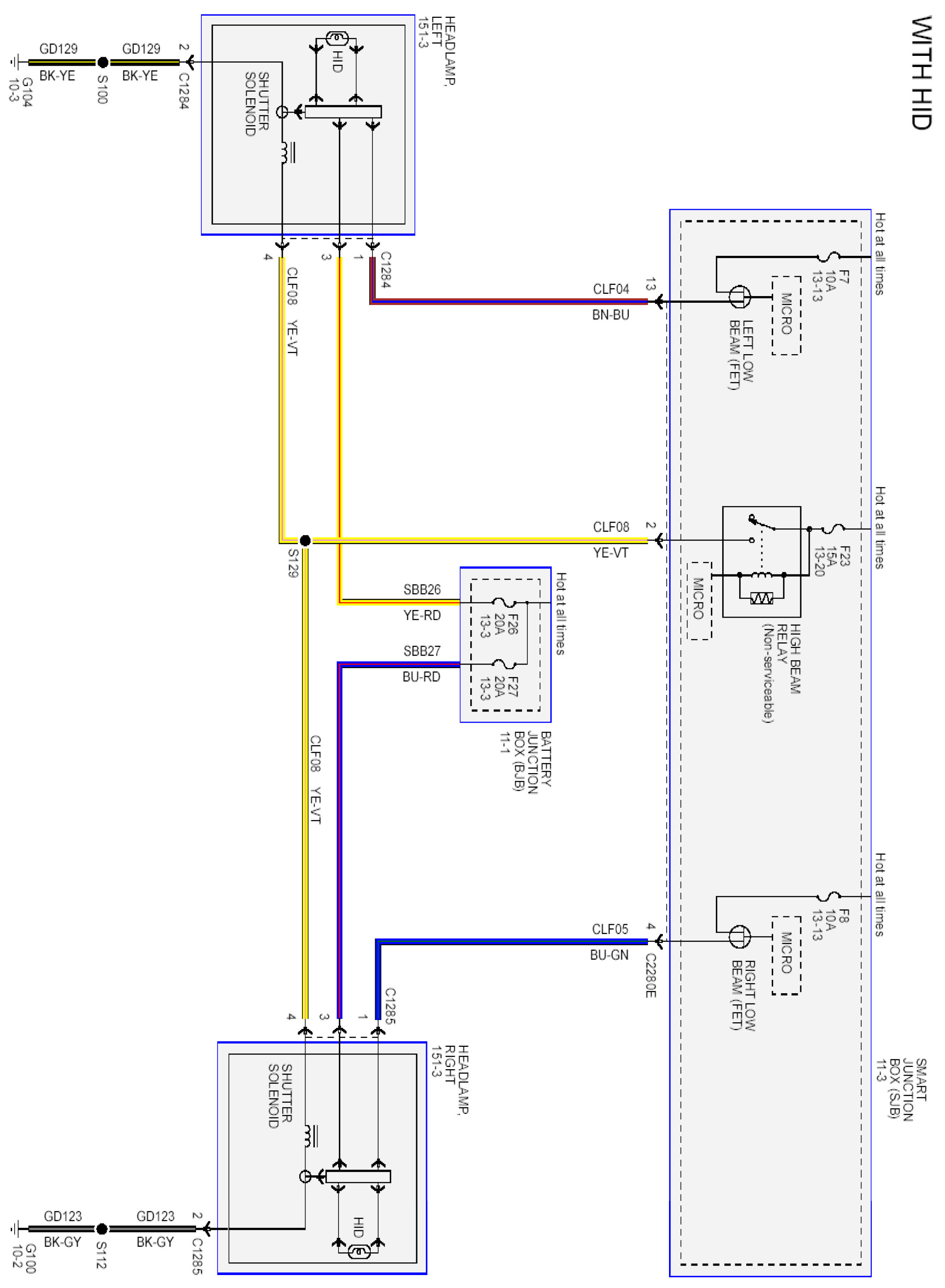

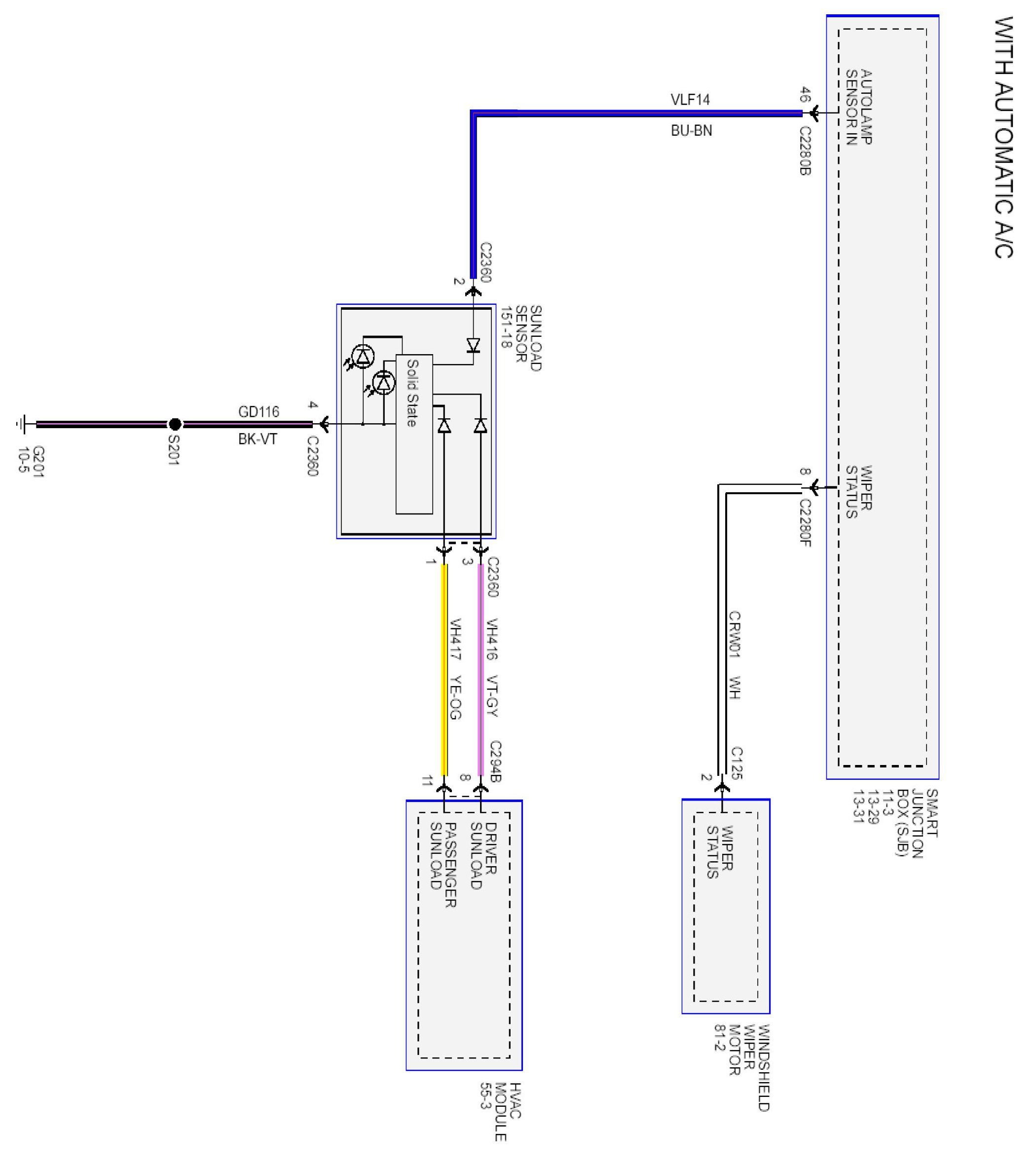

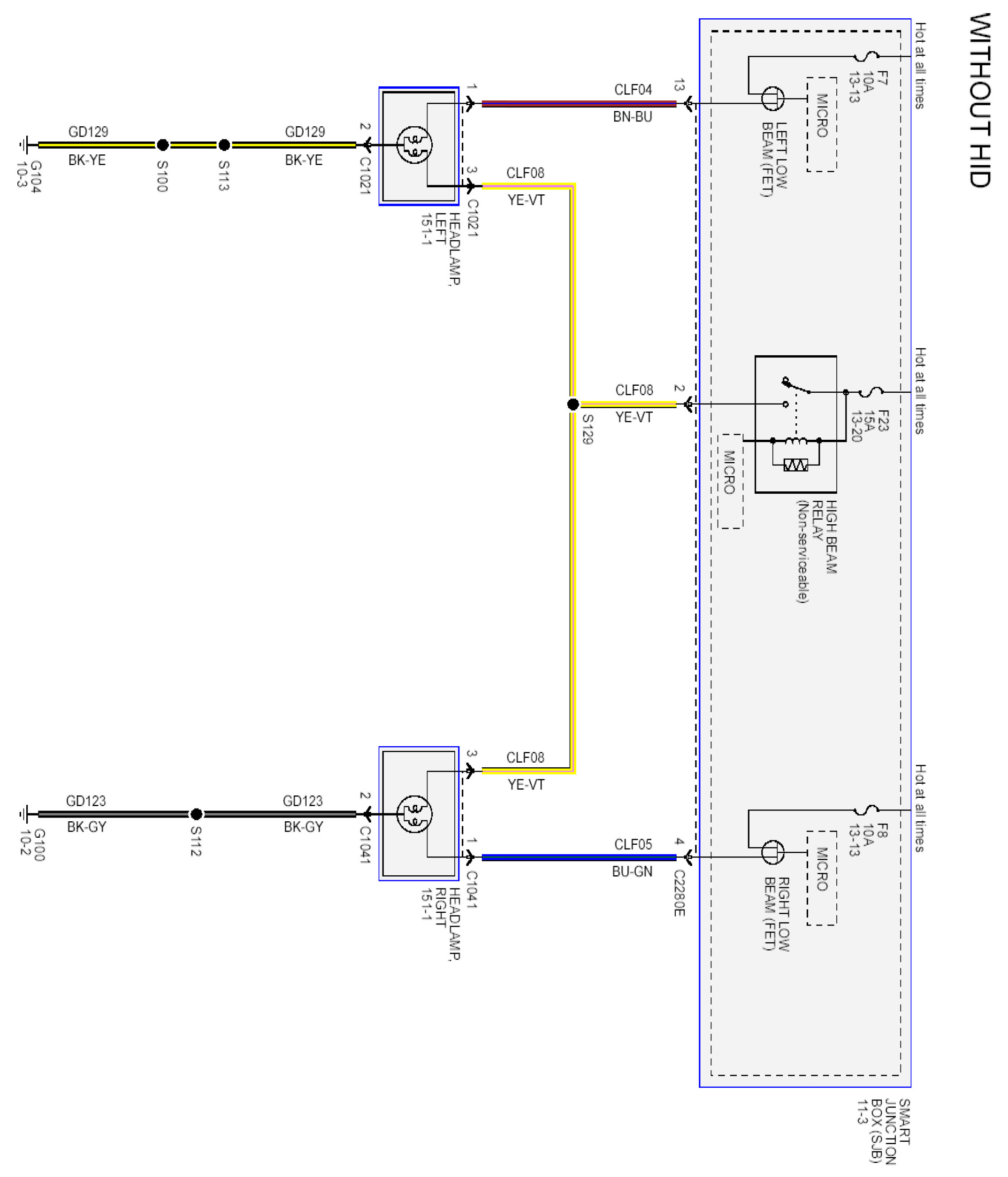

Diagram Set 85 (Headlamps/Autolamps)
