Cooling System Condition Evaluation

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use the following chart to evaluate the cooling system condition and choose the correct procedure to restore the system.

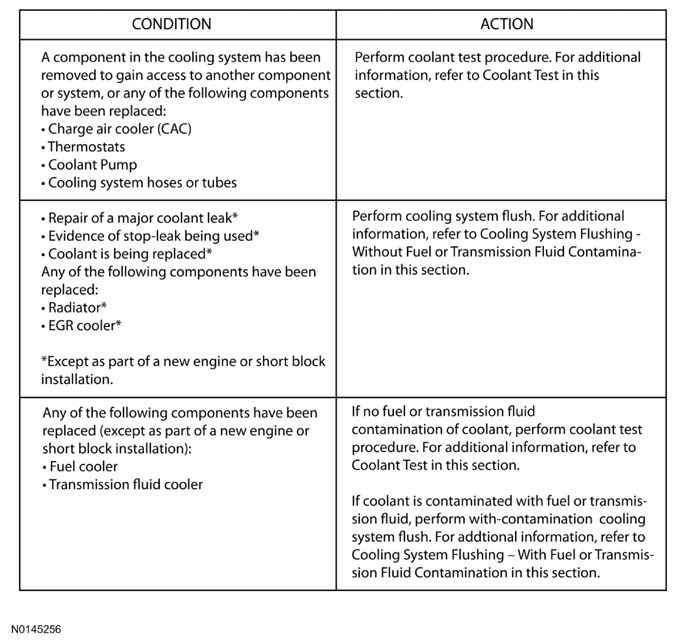

Fig 1: Cooling System Condition Chart
G07970957Courtesy of FORD MOTOR CO.
