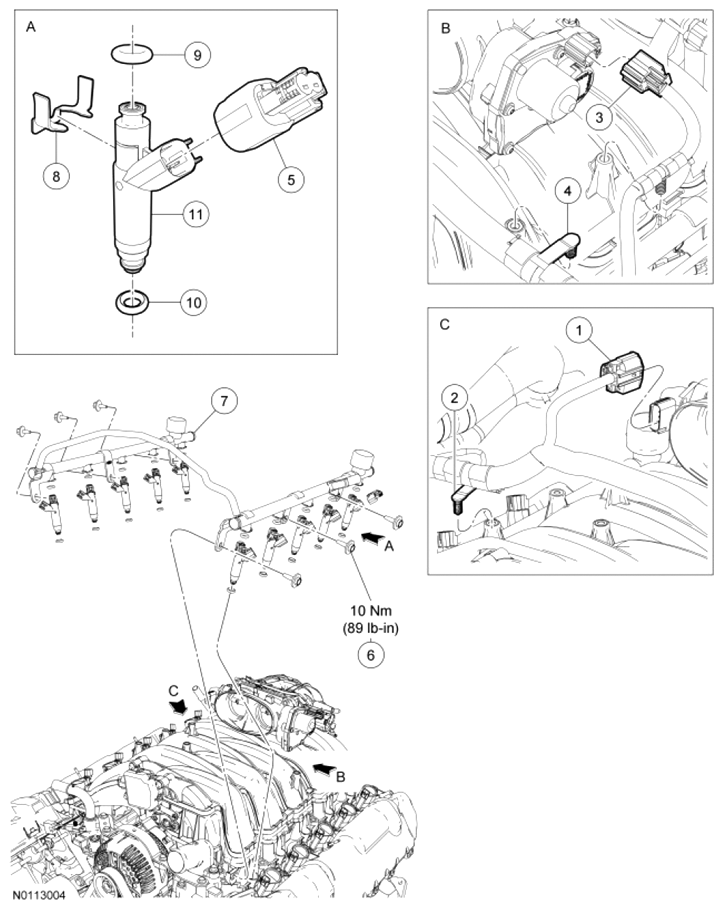

Fuel Rail and Fuel Injector - Exploded View
WARNING: This page is about a different car, the 2012 Ford F550 Super Duty and 2012 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Throttle Position (TP) sensor electrical connector (part of 12C508) |
| 2 | - | Engine wiring harness retainer (part of 12C508) |
| 3 | - | Electronic Throttle Control (ETC) electrical connector (part of 12C508) |
| 4 | - | Engine wiring harness retainer (part of 12C508) |
| 5 | - | Fuel injector electrical connector (part of 12C508) (10 required) |
| 6 | W710700 | Fuel rail bolt (6 required) |
| 7 | 9F792 | Fuel rail |
| 8 | 9F907 | Fuel injector-to-fuel rail clip (10 required) |
| 9 | 9F798 | Fuel injector-to-fuel rail O-ring seal (10 required) |
| 10 | 9F798 | Fuel injector-to-intake manifold O-ring seal (10 required) |
| 11 | 9F593 | Fuel injector (10 required) |
- For additional information, refer to the appropriate procedures in the service information.
